• Model NO.：PSH
• Type：Press Brake
• Product Name：CNC Press Brake,Servo Motol Bending Machine
• Extra Services：Forming
• Electrical Component：Schneider
• Sealing Element：Nok
• Hydraulic Valve：Rexroth
• Motor：Siemens Beide
• Application：Metal Sheet Bending
• Safety Proteection：Protective Guard
• Control System：E21
• Color：Customizable
• Transport Package：Plastic Film, Wooden Package, or as Requirement.
• Specification：3450*1450*2600
• Trademark：Durmark
• Origin：China Anhui
• HS Code：8462219000
• Production Capacity：60

Basic Info.

Model NO. PSH Type Press Brake Product Name CNC Press Brake/Servo Motol Bending Machine Extra Services Forming Electrical Component Schneider Sealing Element Nok Hydraulic Valve Rexroth Motor Siemens Beide Application Metal Sheet Bending Safety Proteection Protective Guard Control System E21 Color Customizable Transport Package Plastic Film, Wooden Package, or as Requirement. Specification 3450*1450*2600 Trademark Durmark Origin China Anhui HS Code 8462219000 Production Capacity 60

Product Description

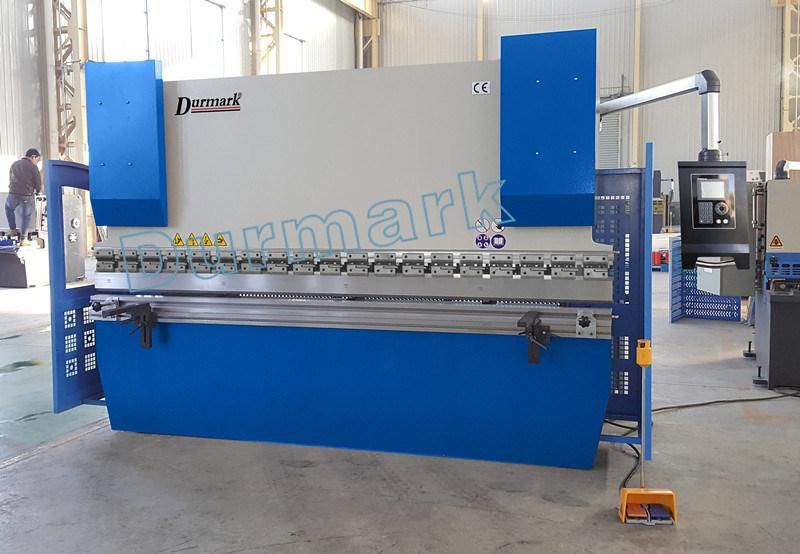

500T/4000 Electro hydraulic synchronous CNC press brake/servo motol bending machine



No	Hydraulic system	German REXROTH
1	Oil pump	USA SUNNY
2	Seal ring	Japan VALQUA
3	Tubing connector	German EMB

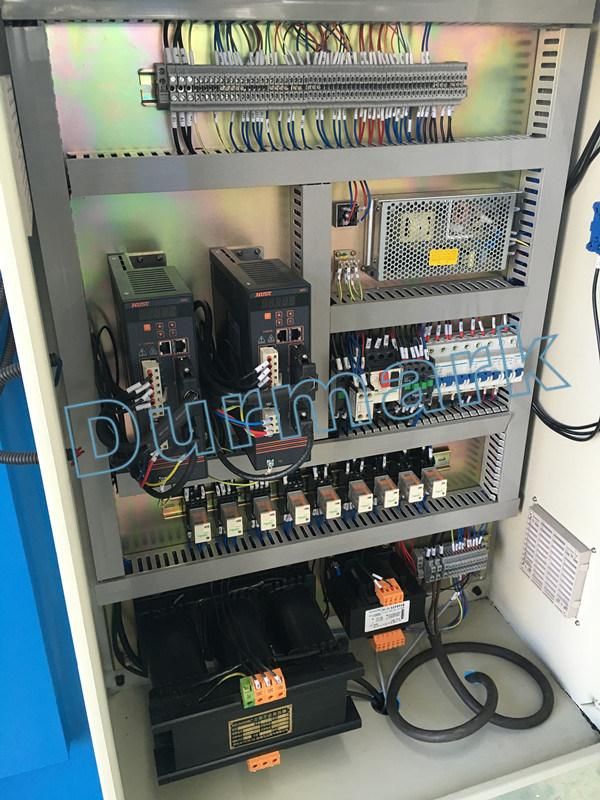

4	Electrical	Schneider
5	Ball screw	Taiwan HIWIN
6	Linear guide	Taiwan HIWIN
7	Servo motor	ESTUN

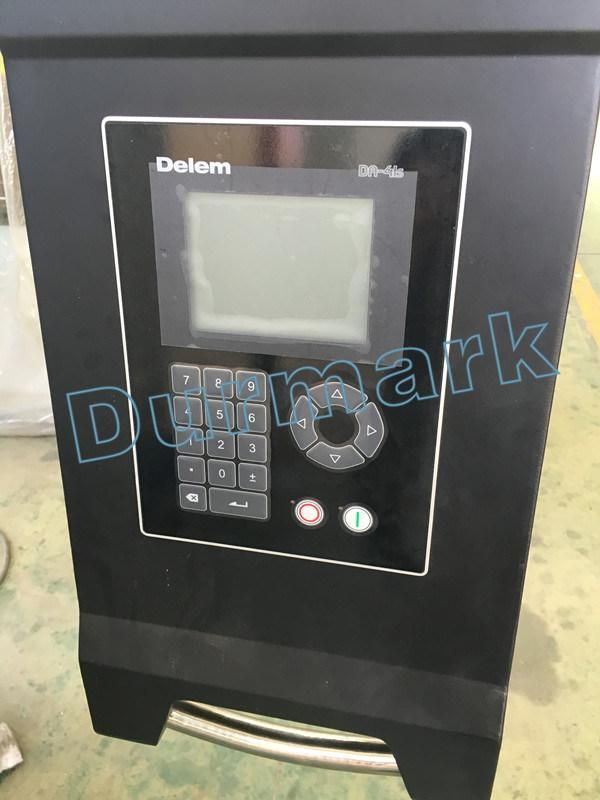

8	CNC system	DA41 CNC system ( More CNC system for optional )

Technical parameter


No	WE67K-40T/2500	Value	Unit
1	Normal pressure	400	KN
2	Worktable length	2500	mm
3	Distance between holes	1850	mm
4	Depth of throat	230	mm
5	Ram travel	100	mm
6	Max opening height	320	mm
7	Main power	5.5	KW
8	Weight	3000	KG
9	Dimension	2500*1200*1910	mm

Main Features


1. Welded steel structure, by normalizing and high-frequency vibration to eliminate stress, to ensure the overall accuracy of machine tools, has excellent rigidity, anti-distortion, and anti-tilt capability.

2. Thickening of the table plate, the slider, so that the machine has high rigidity and overall welding machine frame after a one-time process, so slider ,worktable have less deformation of the work piece while bending, and the final product have excellent straightness and angle consistency.

3. Torsion shaft synchronization mechanism for the slider synchronous mechanism and the mechanical stopper mechanism, stable and reliable.

4. Back gauge distance, the slide stroke adjustment controlled by servo motor and CNC system.
Back gauge adopts precision ball screw, linear guide, synchronous belt wheel drive, run fast, accurately positioning data.

5. CNC system adopts two-axis servo control technology, set and saved hundreds of bending programs, each consists of a plurality of machining step programming.

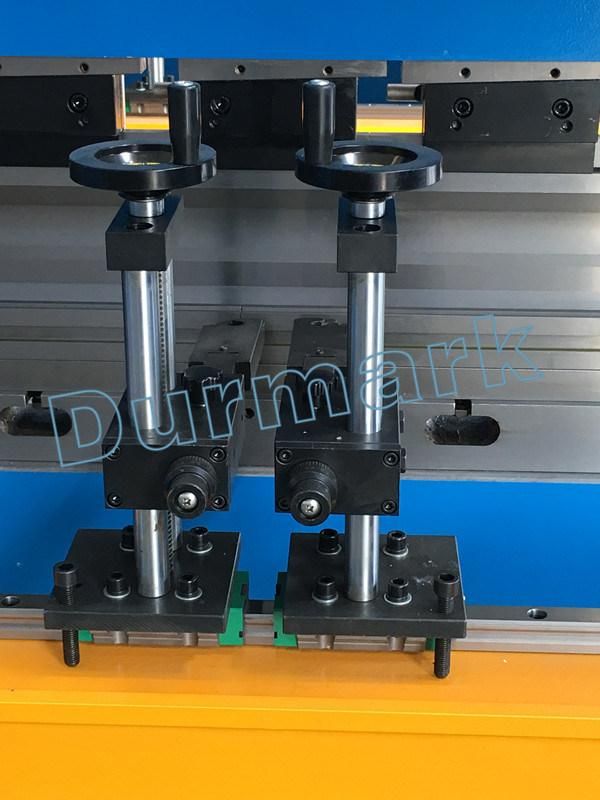

6. Front feeding device moves lateral through precision linear guide, easily control the spacing between the arms.

7. Adjustable height level, which greatly improves the convenience of the work piece bending.

8. With fast clamp pallet bending mold, compatible with deflection compensation mechanism, in order to guarantee high bending accuracy (To improve the accuracy , Hydraulic convex compensation table or Inclined wedge machine workbench compensation can be optional).

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door
cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.

Packing & Delivery
Plastic film, wooden package, or as requirement.
Delivery Detail:        15 days

Detailed Images








Our Service

Pre-sales Service:

1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.

After-sales Service:

1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .

FAQ
How about your machine quality? We are worry about the quality.

RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount?

RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

Please feel free to contact me if you want to know more.
