• Model NO.：BWZ-C
• Key Words：Channel Letter Bender
• Function：Automatic Feeding, Slotting and Bending
• Applicable Material Alu=Aluminum：Stainless Steel Flat Alu Folding Alu Channelume
• Max Material Width：150mm
• Max Material Thickness：1.2mm
• Slotting System：Motor Control
• Air Pressure：0.6MPa
• File Format：Dxf, Ai, Plt
• Transport Package：Plywood Case Package
• Specification：CE, SGS, TUV
• Trademark：BaoYuanTong
• Origin：Weifang, China
• HS Code：8479819000
• Production Capacity：200sets,Month

Basic Info.

Model NO. BWZ-C Key Words Channel Letter Bender Function Automatic Feeding, Slotting and Bending Applicable Material Alu=Aluminum Stainless Steel Flat Alu Folding Alu Channelume Max Material Width 150mm Max Material Thickness 1.2mm Slotting System Motor Control Air Pressure 0.6MPa File Format Dxf, Ai, Plt Transport Package Plywood Case Package Specification CE, SGS, TUV Trademark BaoYuanTong Origin Weifang, China HS Code 8479819000 Production Capacity 200sets/Month

Product Description

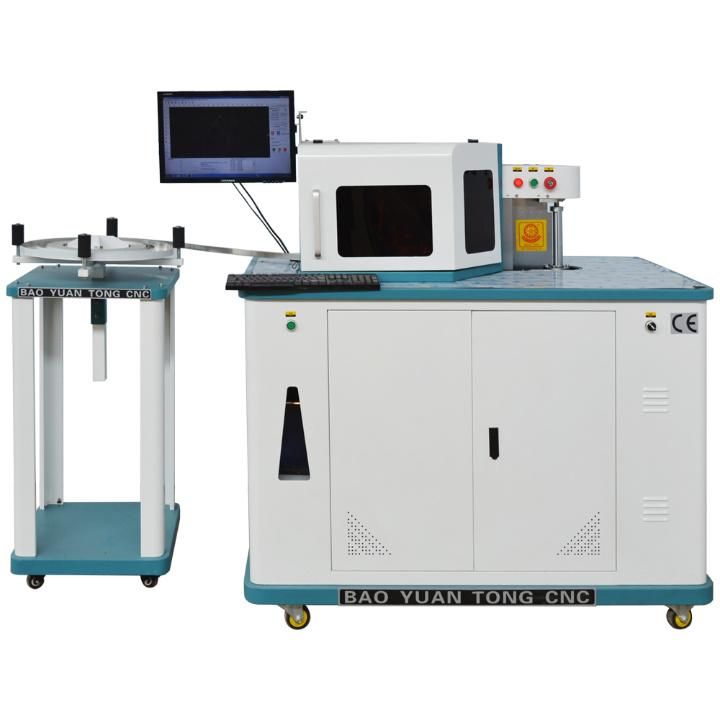

Automatic cnc manual channel letter bender machine for super aluminum stainless steel aluminium letters bending
Product Description



Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials (stainless steel, iron sheet, aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faster.

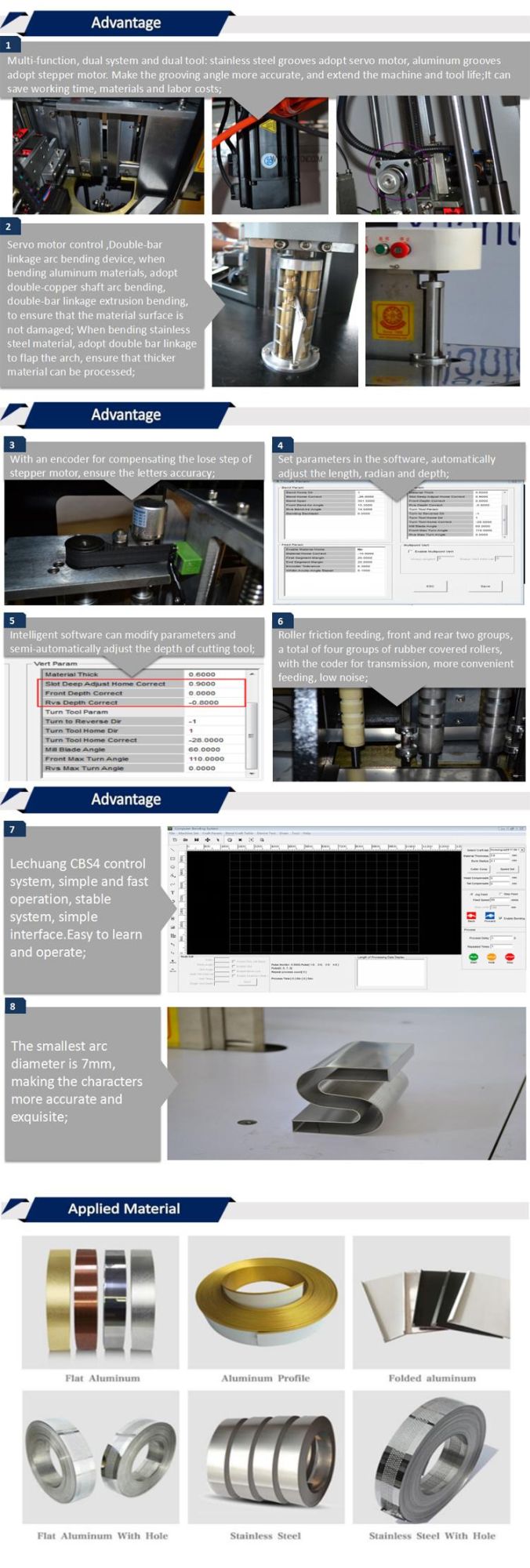

Whole machine feature:
1. Multi-function, dual system and dual tool: stainless steel grooves adopt servo motor, aluminum grooves adopt stepper motor. Make the grooving angle more accurate, and extend the machine and tool life;It can save working time, materials and labor costs;
2.Servo motor control ,Double-bar linkage arc bending device, when bending aluminum materials, adopt double-copper shaft arc bending, double-bar linkage extrusion bending, to ensure that the material surface is not damaged; When bending stainless steel material, adopt double bar linkage to flap the arch, ensure that thicker material can be processed;
3.With an encoder for compensating the lose step of stepper motor, ensure the letters accuracy;
4. Set parameters in the software, automatically adjust the length, radian and depth;
5. Intelligent software can modify parameters and semi-automatically adjust the depth of cutting tool;
6. Roller friction feeding, front and rear two groups, a total of four groups of rubber covered rollers, with the coder for transmission, more convenient feeding, low noise;
7.Lechuang CBS4 control system, simple and fast operation, stable system, simple interface.Easy to learn and operate;
8.The smallest arc diameter is 7mm, making the characters more accurate and exquisite;


Automatic cnc manual channel letter bender machine for super aluminum stainless steel aluminium letters bending

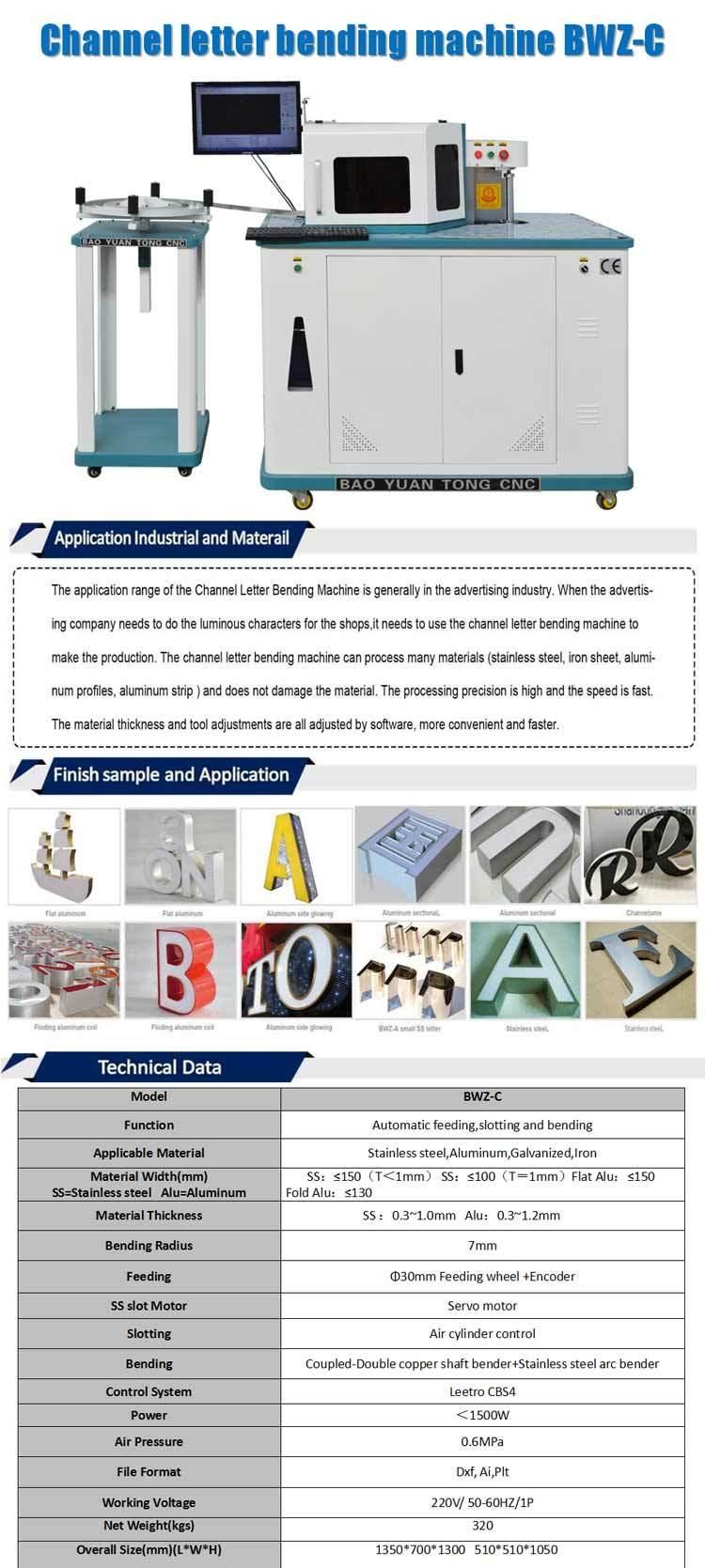

Technical data:

Model	BWZ-C
Function	Automatic feeding,slotting and bending
Applicable Material	Stainless steel,Aluminum,Galvanized,Iron
Material Width(mm) SS=Stainless steel Alu=Aluminum	SS:≤150(T<1mm)SS:≤100(T=1mm) Flat Alu:≤150  Fold Alu:≤130
Material Thickness	SS :0.3~1.0mm Alu:0.3~1.2mm
Bending Radius	7mm
Feeding	Φ30mm Feeding wheel +Encoder
SS slot Motor	Servo motor
Slotting	Air cylinder control
Bending	Coupled-Double copper shaft bender+Stainless steel arc bender
Control System	Leetro CBS4
Power	<1500W
Air Pressure	0.6MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	320
Overall Size(mm) (L*W*H)	1350*700*1300

Why Choose Us
Full Automatic Signs Making CNC Channel Letter Bending machine
 Company Experience
1.Founded in 1996, with registered trademarks "BAOYUANTONG" and "BYT".
2.Own more than 30 patents for invention, utility model and design.
3.Passed the "SGS certification" for 9 consecutive years, and all products have obtained the " Europe CE certification"
4.Exported to over 150 countries including the North America, Europe, South America, the Middle East,and have more than 2000 clients.
5.Provide one-stop procurement ,let customer's purchase more efficient and safety.
6.According the customer different requirements ,provide equipment customized solved plan and sample making .
Sales Service
1.Technical people have professional english ability and directly with customer communication.
2.24H/7D on line service , when you need we all will be here .
3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers.
5.For the products making , have professional technical engineer provide process guide .
Various Training Service
1.Provide U disk with detailed operation manual and video.
2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time.
3.Via teamviewer remote control software to provide on line guidance.
4. Customer come to our factory for learning how to operate the machines.
5.Engineer can go aboard for training if customer needed.

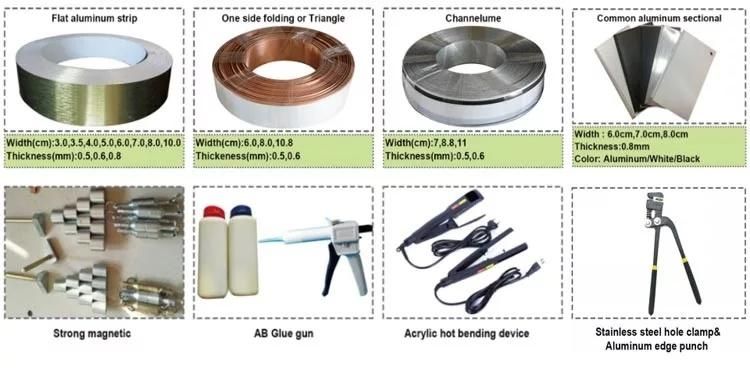

Optional parts
1) Aluminum profiles : We have different type and color aluminum profiles for choose ,when you need I give you quotation sheet.
2) Computer : When this machine working ,there is control card need install in a computer . For control system no limited .
3) Compressor : Need 0.3-0.6Mpa Air compressor working .


Feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture ,listen user's voice)


Package and delivery
1.After the completion of machinery production, the factory inspectors shall check and put the equipment into storage.Before the delivery of the equipment, the after-sales engineer shall conduct secondary inspection and ensure the quality of the machine meets the customer's requirements
2.Clean the whole machinery , protect the parts that need oil, and check the related parts again .
3. Anti-collision package edge: All parts of the machine are covered with some soft materials.
Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
4. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time and money.

FAQ
1. What is Channel letter bending machine?
Introduction of the machine: mainly produces metal 3D letters and light boxes
2. How to choose a suitable Letter bending machine?
1) According to local needs,which letters are more popular, aluminum alloy or stainless steel letters.
2) If the budget is less than 5000$, then you can choose aluminum letter bending machine
More than 5000$, consider multifunctional one
3. What are the functions of the Letter bending machine?
It with automatic feeding, slotting, and bending functions, high precision and save labor cost
4. What are the functions of the Letter bending machine?
Together with the machine ,there is detail english install and operate manual &&video, meantime before you get this machine ,our service engineer will contact with you in advance, all questions you can contact with them in anytime.
5.What is the type of shipping and producing time ?
We offer EXW,FOB ,CIF ,DDU and DDP which you can choose as you like .
When you pay for the deposit , We will arrange producing which about 7-15days delivery .


Automatic cnc manual channel letter bender machine for super aluminum stainless steel aluminium letters bending
