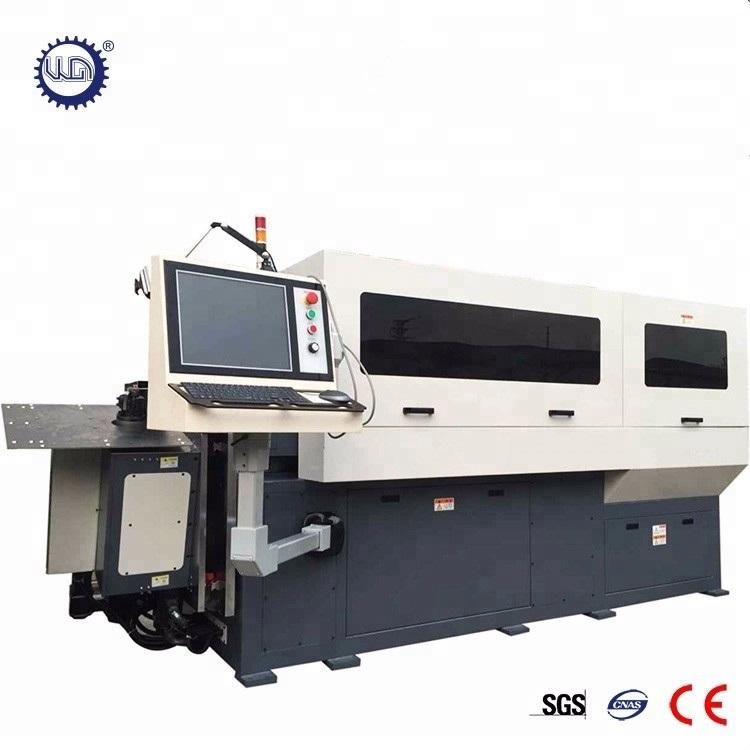

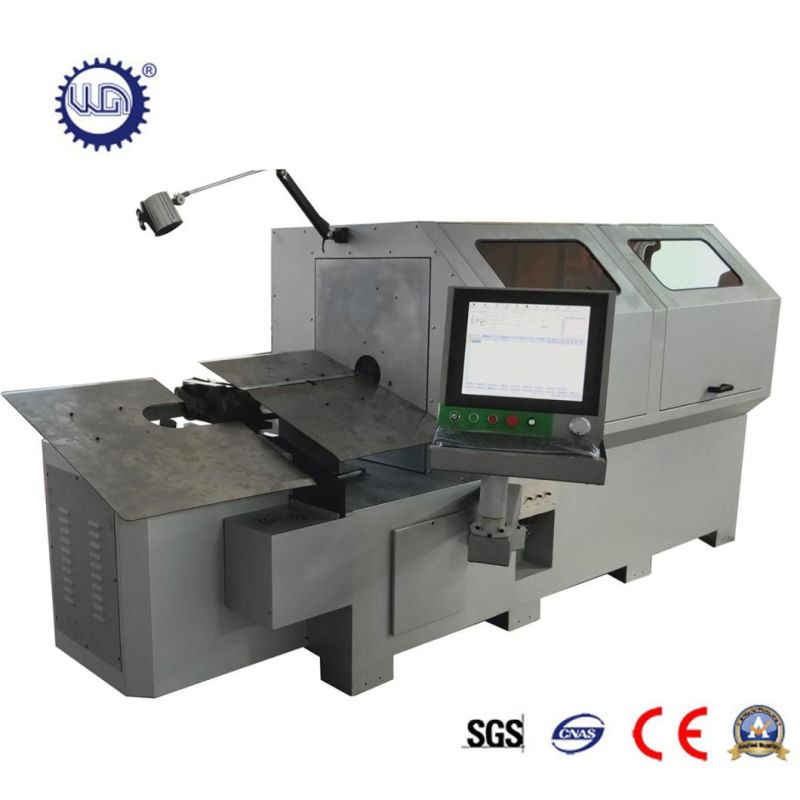

Hot Sale High Quality 3D CNC Rod Bending Machine From Guangdong
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：2 Years, 18 Months
- Condition：New
- Certification：Ce
- Automation：Automatic
- Type：Bending Tools
- Axis：7
Base Info
- Raw Material：Steel Bar
- Power：CNC
- Extra Services：Cut to Length
- Wire Size：2.0-6.0mm
- Color：Grey,Black
- Name：3D CNC Multi Anglewire Bending Machine
- Year：2018
- Machine Type：Bending Machine
- Weight：3000kg
- Application：Stainless Steel Strip Bending
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Material / Metal Processed：Stainless Steel
- Voltage：220V,380V,400V
- Transport Package：Standard Export Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Raw Material Steel Bar Power CNC Extra Services Cut to Length Wire Size 2.0-6.0mm Color Grey/Black Name 3D CNC Multi Anglewire Bending Machine Year 2018 Machine Type Bending Machine Weight 3000kg Application Stainless Steel Strip Bending After-Sales Service Provided Engineers Available to Service Machinery Overseas Material / Metal Processed Stainless Steel Voltage 220V/380V/400V Transport Package Standard Export Case Trademark WG Origin Guangdong, China (Mainland)Product Description
Product DescriptionHot Sale High Quality 3D cnc rod bending machine from Guangdong
Production description :CNC 3D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
| Model | GT-WB-60-7A | GT-WB-60-10A | GT-WB-80-9A | GT-WB-100-9A | GT-WB-120-7A |
| Wire Size(mm): | 2.0-6.0 | 2.0-6.0 | 3.0-8.0 | 5.0-10.0 | 5.0-12.0 |
| Axis: | 7 | 10 | 9 | 9 | 7 |
| Feeding Roller Number: | 3 pairs | 3 pairs | 3 pairs | 4 pairs | 4 pairs |
| Wire Turning Angle: | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Platform lifting height: | 50-170mm | 50-170mm | 25-120mm | 25-120mm | 25-120mm |
| Twisting head lifting height: | 20-100mm | 20-100mm | 20-80mm | 20-80mm | 20-80mm |
| Distance between cutting and bending head | / | / | / | 305mm | 305mm |
| Distance between bending head and machine body | / | / | / | 800mm | 800mm |
| Out twisting lifting height | / | 20-55mm | / | / | / |
| Left to right moving range | / | left:80mmright:40mm | left:100mm right:60mm | / | / |
| Feeding front and back moving range | / | front:300mm back:100mm | front:300mm back:100mm | / | / |
| Machine size(cm) | 180*120*120 | 300*120*140 | 350*120*150 | 380*140*170 | 450*180*170 |
| Machie weight(kg) | 3000.0 | 3200.0 | 3400.0 | 4800.0 | 8600.0 |
Advantages & Main Features
1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution

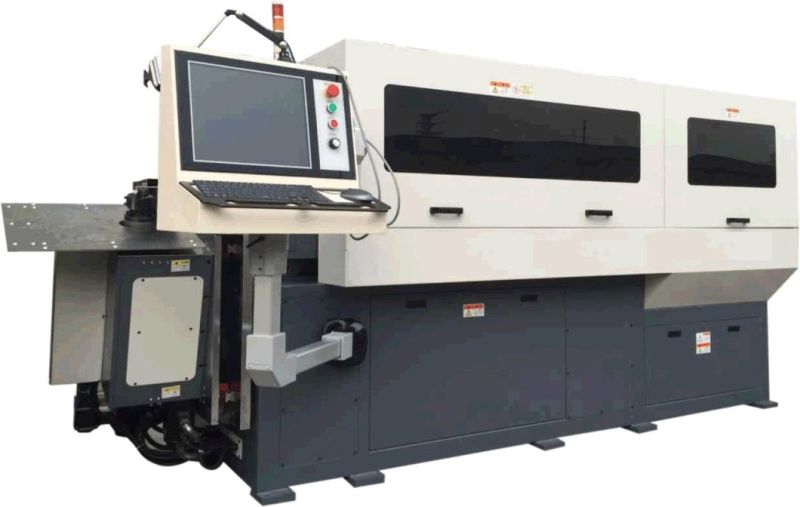

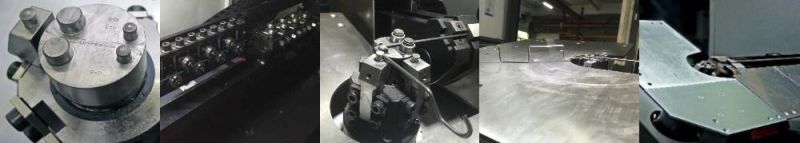

Detailed Images
Service Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
Packing & Delivery
