• Model NO.：JM85
• Motor Power：4kw
• Hydraulic Power：2.2kw
• Voltage：220V,60Hz,3pH
• Working Speed：8-12m,Min
• Forming Steps：14+3
• Effective Width：85mm
• Material Width：136mm
• Thickness：0.6-0.8mm
• Type for Cutting Machine：Hydraulic Cutting Machine
• Type for Fold-Bending Machine：Hydraulic Fold-Bend Machine
• Transport Package：Standard Package of Export
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：84552290
• Production Capacity：20sets,Month

Basic Info.

Model NO. JM85 Motor Power 4kw Hydraulic Power 2.2kw Voltage 220V/60Hz/3pH Working Speed 8-12m/Min Forming Steps 14+3 Effective Width 85mm Material Width 136mm Thickness 0.6-0.8mm Type for Cutting Machine Hydraulic Cutting Machine Type for Fold-Bending Machine Hydraulic Fold-Bend Machine Transport Package Standard Package of Export Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 20sets/Month

Product Description

JM85 Roll Forming Machine For Rolling Door detailed informations are as follows:

(1). Material Thickness: 0.6-0.8mm;
(2). Thickness for common use and test: 0.8mm;
(3). Tolerance: +/-2mm.

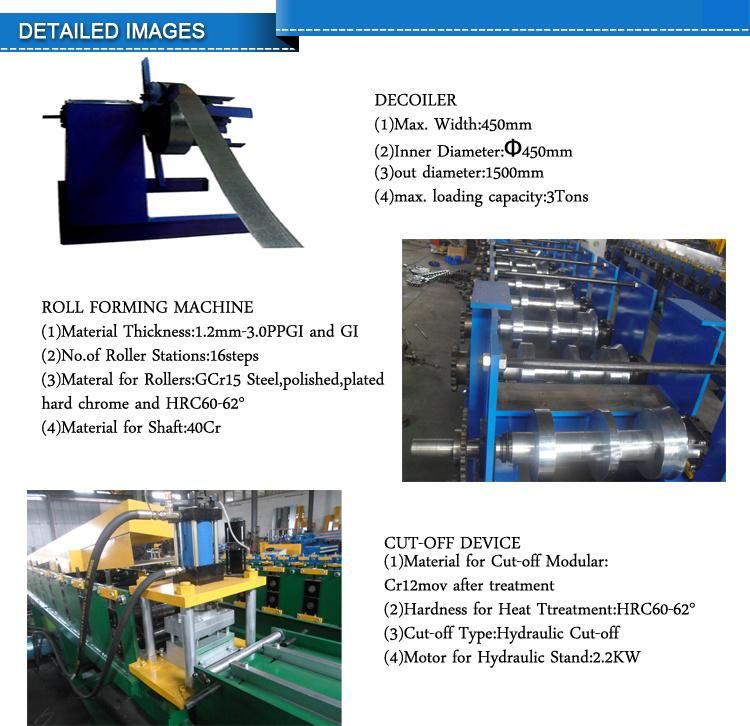

Main Accessories:
(1). Main Forming Machine;
(2). 3 Tons Manual Uncoiler;
(3). Hydraulic System;

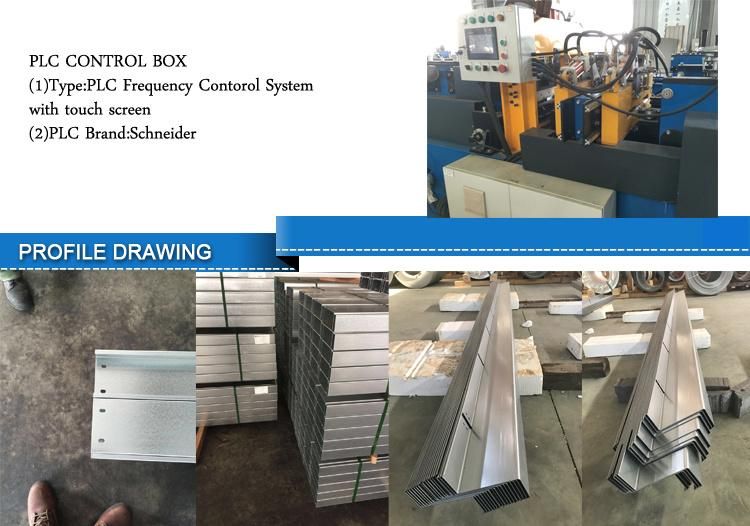

(4). PLC Computer Controlling System With Touch Screen;
(5). Hydraulic Forming Cutter;
(6). Run Out Table (3 sets);
(7). Tools;
(8). Operation Manual.

1.	Size	4000*900*1400mm
2.	Weight	1500 KGS
3.	Motor  Power	4 KW
4.	Hydraulic Power	2.2KW
5.	Volage	220V/60HZ/3PH
6.	Effective Width	85mm
7.	Material Width	136mm
8.	Forming Steps	14  steps
9.	Forming Speed	8-12m/min
10.	Thickness for common use and test	0.8mm
11.	Tolerance	± 2mm
