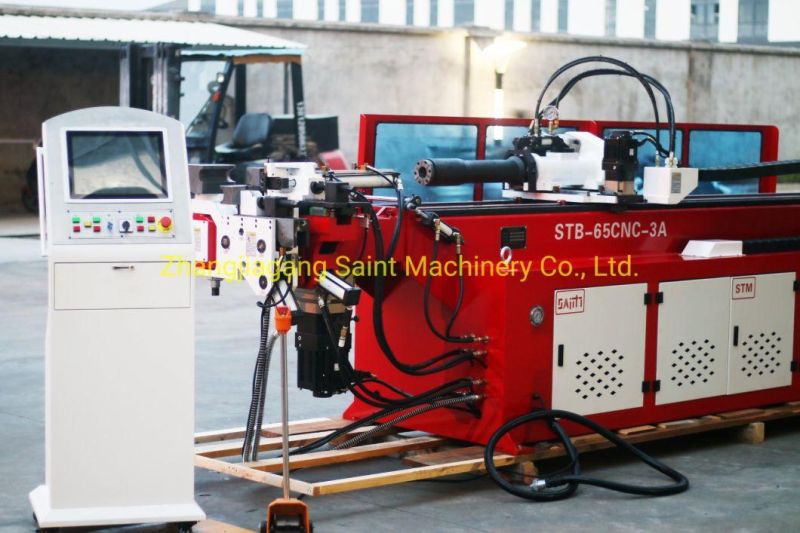

• Model NO.：STB-65CNC-3A
• Type：Pipe and Tube Bending Machine
• Bend：Servomotor
• Tool Hardening：50HRC
• Bend Speed：2 Second,Bend
• Transport Package：Plywood Case
• Specification：LWH: 5200× 1300× 1600mm, GW: 2500kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STB-65CNC-3A Type Pipe and Tube Bending Machine Bend Servomotor Tool Hardening 50HRC Bend Speed 2 Second/Bend Transport Package Plywood Case Specification LWH: 5200× 1300× 1600mm, GW: 2500kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

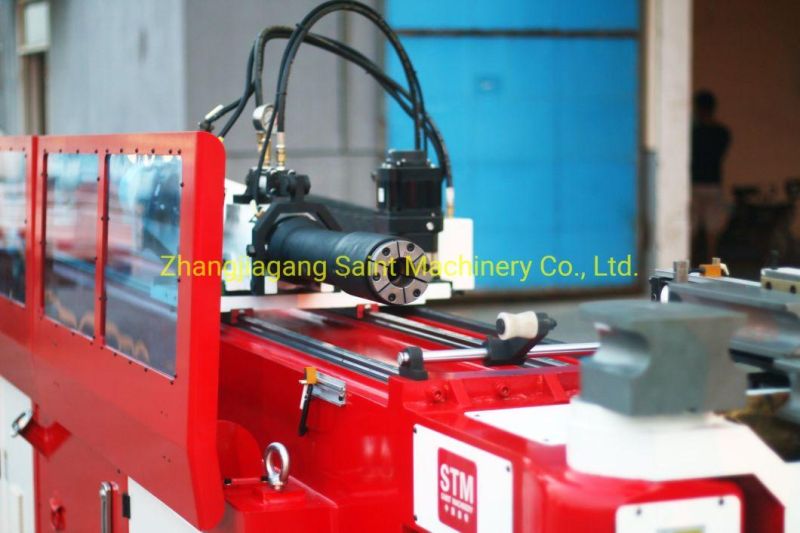

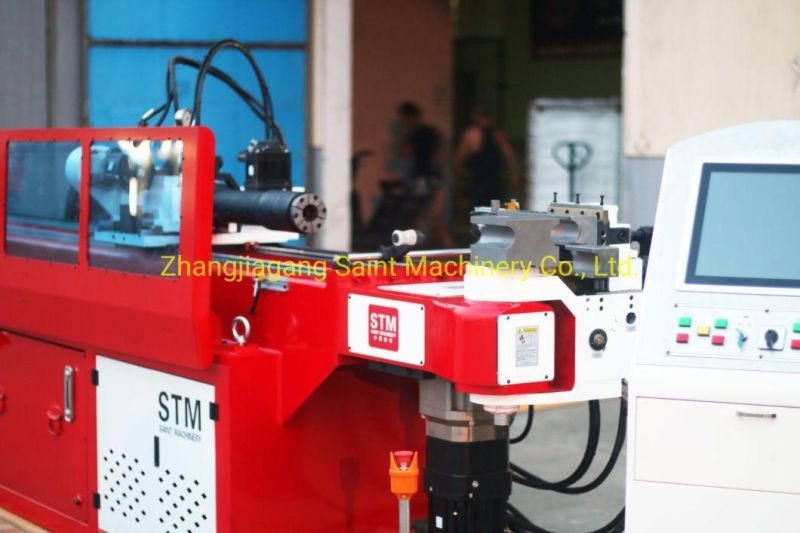

1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor (optional).
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Automatic moving parts lubrication.
8. Standing pedestal, serves emergency stop and remote control.
9. Optional: Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
10. Optional: 3D bending simulation
11. Optional: auto loading and unloading system.


Model	STB-65CNC-3A
Bending capability OD×WT (mild steel tube)	Φ63.5× 3.0 mm
Bending radius	25~280 mm
Bending angle	0~195°
Max bending length with mandrel	2800mm
Bending speed	125°/sec
Bending accuracy	±0.05°
Feeding speed	30~750 mm/sec
Feeding accuracy	±0.1 mm
Rotating speed	320°/sec
Rotating accuracy	±0.1°
Tools stack	1
Bending	AC Servomotor
Feeding/Booster	AC Servomotor
Rotating	AC Servomotor
Hydraulic motor power	4 KW
System hydraulic pressure	12MPa
Size	5200×1300×1600mm
Weight	2500 kg
