• Model NO.：ZX-1625VA
• Power Source：Electric
• Layout：Horizontal
• Product Name：Zhuoxing Hot Sales Cutting Machine for Clothing I
• Model No.：Zx-1625va
• Cutting Thickness：0.1-110.00mm
• Max Cutting Speed：1200mm,S

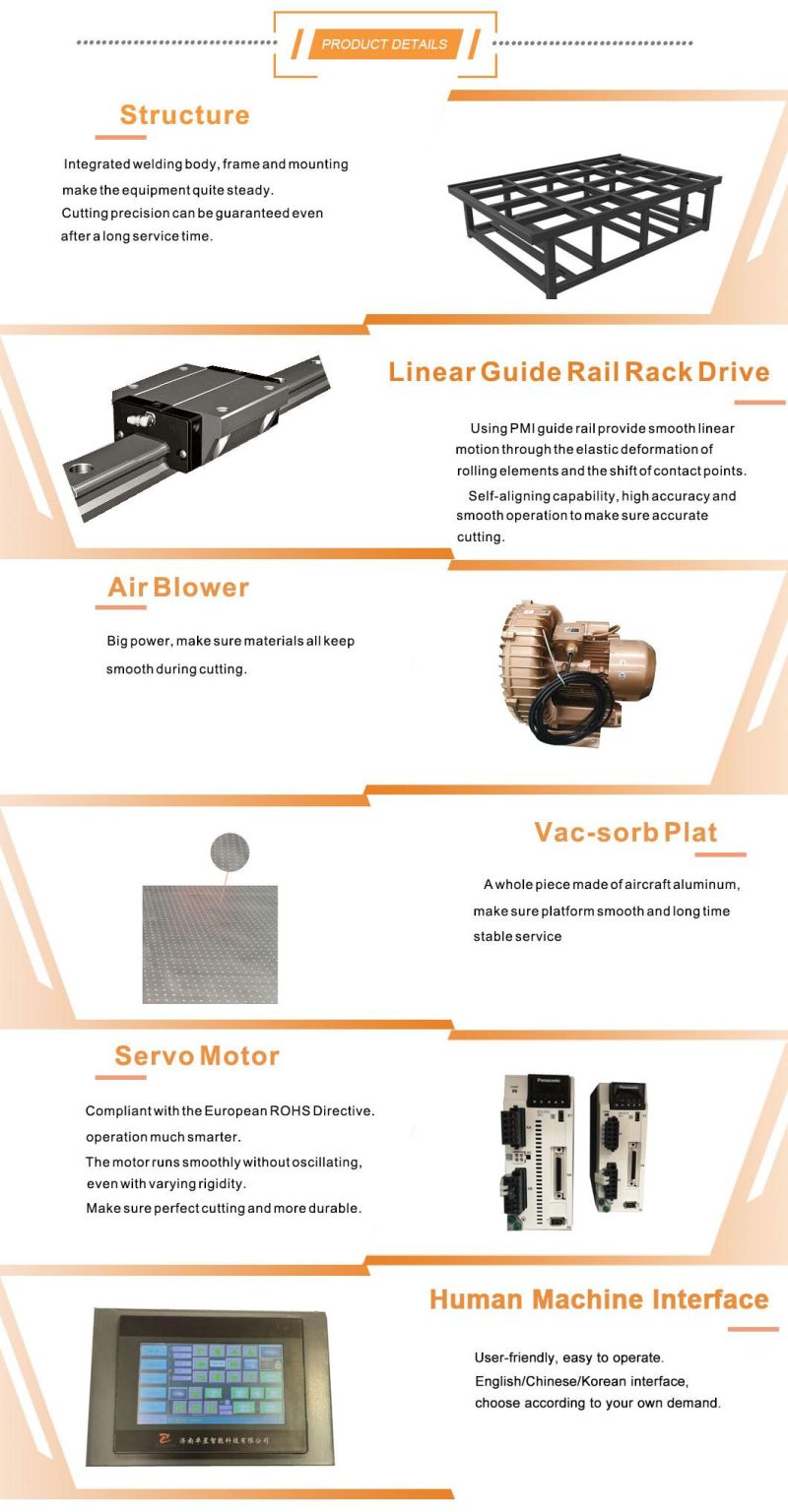

• Transmission System：Servo Motor,Linear Rail,Pinion&Rack
• Material Fixed Mode：Vacuum Absorb
• Consumption：11kw
• Power Supply：AC 110,220,380V
• Format：Dxf,Plt
• Safety Device：Emergency Stop Button
• Optional Configurations：Driven Rotary Cutting Tool, Punching Tool (V-Shape
• Color：Customized
• Transmission Interface：Ethernet
• Control Panel：Liquid Crystal Display
• Operating Characteristic：Work Offline; 24 Hours Continuous and Efficient Wo
• Transport Package：Strong Standard Wooden Case
• Specification：3425*2480*1390
• Trademark：ZhuoXing
• Origin：China
• HS Code：8441100000
• Production Capacity：50sets,Month

Online / offline operation; continuous cutting with high efficiency; 7*24 with zero downtimeSafety deviceInfrared adopted; sensitive response; safe and reliableMax cutting speed1200mm/sMoving Speed1500mm/sApplicable materialsall kinds of flexible material,such as Knitted material, tatting material, fur, polyurethane leather/ PU, jean demin,canvas, Foam, artificial leather /synthetic leather, diablement fort fabric, various blended fabrics used for apparel, woven fabrics, oxford fabric,canvas,sponge, suitcases,bags,sofa,floor mat,carpet,cotton & Lining material, etcMultifunctional headoscillating knife cutting tool/vibration/vibrating knife cutting tol,rotary cutting tol,creasing tool,pneumatic cutting tool,kiss cut tool,drawing tool,milling tool,angling cutting tol,v-cut,punching tool,etc.Cutting thickness≤110 mm (subject to material,customization available for thicker material)Cutting tolerance±0.1mmTransmission interfaceEthernetTransmission systemsevor motor,Linear rail,pinion&rackFixed modeVacuum absorbSupply voltageAC 110V/220V/380V±10%,50HZ/60HZRated power11KW









Question: Do you have user manual book ?

Answer: Yes, user manual at present is written in English. We also provide on-site installation and training service is required. There is no special requirement for operator, operating is easy.

Question: Can you provide OEM/ODM service?
Answer: Yes, we are factory and we have lots of OEM or ODM experience.
Question: How to operate this machine ?
Answer: We can provide operating video, user manual or telephone calls to help you. All these is written or speaking in English at present. On site service is also available.
There is no complicate operation nor special requirement for operator, operating is easy.

Question: What's the warranty policy?
Answer: Standard warranty is 12 month upon delivery.

Question: How to judge if this cutting machine is suitable for me or not?
Answer: First, you should share something on the material (L*W*H,breathable or not) to be processed and other specific requirements, such as additional drawing function, punching holes function,etc. We will make first round judgement based on our experience. If necessary, we will make demo cutting for you, then we will share the video with you and discuss the possible solution.
