• Model NO.：STB-10CNC-3A
• Type：Pipe and Tube Bending Machine
• Axis：3-Axis
• Tool Stack：1 Stack
• Transport Package：Plywood Case
• Specification：LWH: 1700x800x1100mm, GW: 400kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STB-10CNC-3A Type Pipe and Tube Bending Machine Axis 3-Axis Tool Stack 1 Stack Transport Package Plywood Case Specification LWH: 1700x800x1100mm, GW: 400kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

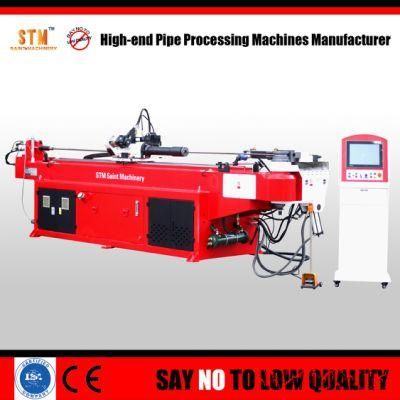

STB-10CNC-3A is pneumatic 3-axis servo tube bender, which can make all kinds of small tube bending or capillary tube bending, such as the oil tubes, A/C tubes, brake tubes, some tubes in electrics and so on. It is a very fast and accurate machine with different functions for different shapes of the tube bending.

1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor (optional).
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Automatic moving parts lubrication.
8. Standing pedestal, serves emergency stop and remote control.
9. Optional: Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
10. Optional: 3D bending simulation
11. Optional: auto loading and unloading system.


Parameters	STB-10CNC-3A
Bending capability	Max Φ10×1.2 mm (mild steel, copper, aluminum) Φ7×0.8 mm (stainless steel)
Bending radius	5~30 mm
Bending angle	0~195°
Max clip pipe length	700 mm
Bending speed	280°/sec
Bending accuracy	±0.1°
Feeding speed	1000 mm/sec
Feeding accuracy	±0.1 mm
Rotating speed	720°/sec
Rotating accuracy	±0.1°
Rotating drive	AC servo motor
Feeding drive	AC servo motor
Bending drive	AC servo motor
System pneumatic pressure	0.8Mpa
Size	1700×800×1000mm
Weight	400kg
