Full Automatic Curving Machines with Convex & Concave Curved
Xiamen Xinhonghua Machinery Co., Ltd.- Warranty：1-year
- Condition：New
- Certification：SGS
- Automation：Automatic
- Suitable for：Copper, Aluminum
- Type：Roll Forming Machine
Base Info
- Model NO.：YX65-300-600
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Advantage：Easy to Maintenance,Work Flexible
- Delivery Time：Delivery Immediately After The Machine Is Assemble
- Forming Setps：4steps
- Voltage：380V,50Hz,3pH
- Curving Speed：8-16m,Min
- Moter Power：6kw
- Curving Thickness for Steel：0.9-1.2mm
- Curving Thickness for Aluminum：0.5-0.8mm
- Size：1600*900*2000mm
- Trademark：XHH
- Origin：Xiamen
- HS Code：84552290
- Production Capacity：22sets,Month
Description
Motor Power: 4KW+ 0.75KW
Bending roofing with convex curved and concave curved

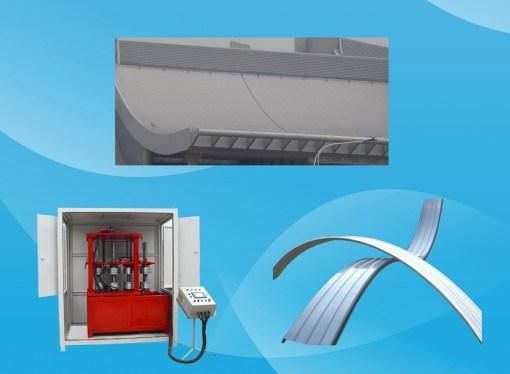

YX65-300-600 Full Automatic Curving Machine for Standing Seam Roof Panels with Convex and Concave Curved, Curve Forming Machine and Rolling Curve Machine:
Main Technical Parameter:
(1) Main Motor Power: 4KW;
(2) Motor Power for Adjusting Models: 0.75KW;
(3) Thickness for Steel Roofing: 0.6-0.8mm;
(4) Thickness for Aluminum Roofing: 0.6-1.0mm;
(5) Bending Speed: 16-20m/min;
(6) Min. Curved Radius for Aluminum Roofing: Convex curved 4m, Concave curved 6m;
(7) Min. Curved Radius for Steel Roofing: Convex curved 8m, Concave curved 10m;
Feature: Can bend the roof panels to Arc-shaped, Wave-shaped and S-shaped; Can full auto adjust and bend the standing seam roofings with any effective width from300mm to 600mm.
