Electro-Hydraulic Pipe Bender (HHW-2D/3D/4D)

TAIZHOU RUIQI TOOLS CO., LTD.
  • Automation：Semi-Automatic
  • Type：Pipe and Tube Bending Machine
  • Bending Formers：1,2"~4"
  • Application：Machinery & Hardware
  • Type for Cutting Machine：Electric Bending Machine
  • Type for Fold-bending Machine：Hydraulic Fold-bend Machine

Base Info

  • Model NO.：HHW-2D HHW-3D HHW-4D
  • Transport Package：Plywood Case
  • Specification：CE, ISO9001: 2000
  • Trademark：TLP
  • Origin：China
  • HS Code：84622990
  • Production Capacity：1000 PCS,Month

Description

Basic Info.

Model NO. HHW-2D HHW-3D HHW-4D Transport Package Plywood Case Specification CE, ISO9001: 2000 Trademark TLP Origin China HS Code 84622990 Production Capacity 1000 PCS/Month

Product Description

Electro-hydraulic pipe benders for bending steel pipes from 1/2" to 4".

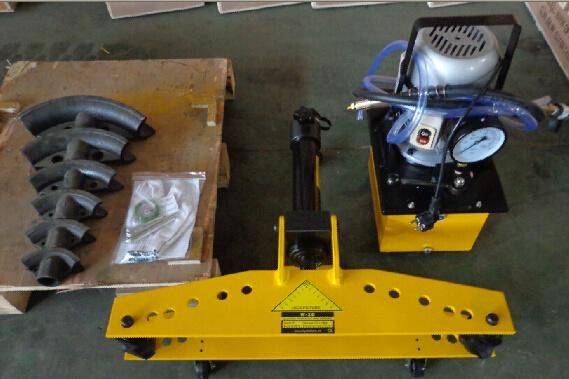

Electro-Hydraulic Pipe Bender (HHW-2D/3D/4D)

We have the following three sizes of Electro-hydraulic Pipe Benders to your different needs:

Model: HHW-2D
Max. Pressure: 16T
Max. Stroke: 250mm
Crimp range: Φ 21.5mm-Φ 60mm
Bending formers(in): 1/2" 3/4" 1" 11/4" 11/2" 2"
Pipe wall thickness: 2.75mm-4.5mm
G. W.: 74kg
Volume(cm): 96*35*27

Model: HHW-3D
Max. Pressure: 20T
Max. Stroke: 320mm
Crimp range: Φ 21.5mm-Φ 88.5mm
Bending formers(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3"
Pipe wall thickness: 2.75mm-5mm
G. W.: 126kg
Volume(cm): 118*46*27

Model: HHW-4D
Max. Pressure: 23T
Max. Stroke: 370mm
Crimp range: Φ 21.5mm-Φ 108mm
Bending formers(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4"
Pipe wall thickness: 2.75mm-6mm
G. W.: 174kg
Volume(cm): 118*46*32
