2in1 Channel Letter Bending Machine for Indoor and Outdoor Sign Letters

Shandong Drivecnc Intelligent Equipment Co., Ltd.
  • After-sales Service：24-7
  • Waterproof Rating：IPX-6
  • Warranty：2-year
  • Condition：New
  • Certification：ISO 9001:2000, ISO 9001:2008, CE
  • Automation：Semi-Automatic

Base Info

  • Model NO.：s150
  • Suitable for：Aluminum
  • Type：Cnc Bending Machine
  • Machine Language：English
  • Working Material：Aluminum
  • Transport Package：Standard Wooden Box
  • Trademark：DRIVECNC
  • Origin：China

Description

lat aluminum   floded aluminum    aluminum profilestainless steelMachine ParameterFeeding partsContinous Roller rolling feeding system(closed-loop feeding with feedback infomations ) with feeding cabinet.Slotting partsPneumatic up-down rotary milling cutter (for aluminum)/Korean hard alloy planner with ball screw transmission(for SS)Bending partDouble-axis linkage roller rolling(no damage for aluminum) /Double-axis pat arc system (for ss)Driver&MotorServo motor 2 sets; Setpper motor 3 setsMachine weight430KgMachine sizemain part L1500mm×W850mm×H1550mm  feeding material holder L500mm×W500mm×H1100mmBending materialsflat aluminum/aluminum with trim cap/aluminum profile/stainless steel/iron sheet (height 20mm-150mm)Bending thicknessSS(0.3mm-0.8mm) Galvanized sheet(0.4mm-1.0mm) aluminum profile(0.6mm-1.2mm)Support formatAI PLT  DXF  NCFeeding precisionLength :±0.1mm        radius: ≥7.5mmControl partLeetro four-axis/Zhongweixing four-axisSoftware parLeetro CBS4/AutoDriveInput voltage220V 50Hz 3KwAir pressure0.6-0.8 MPa

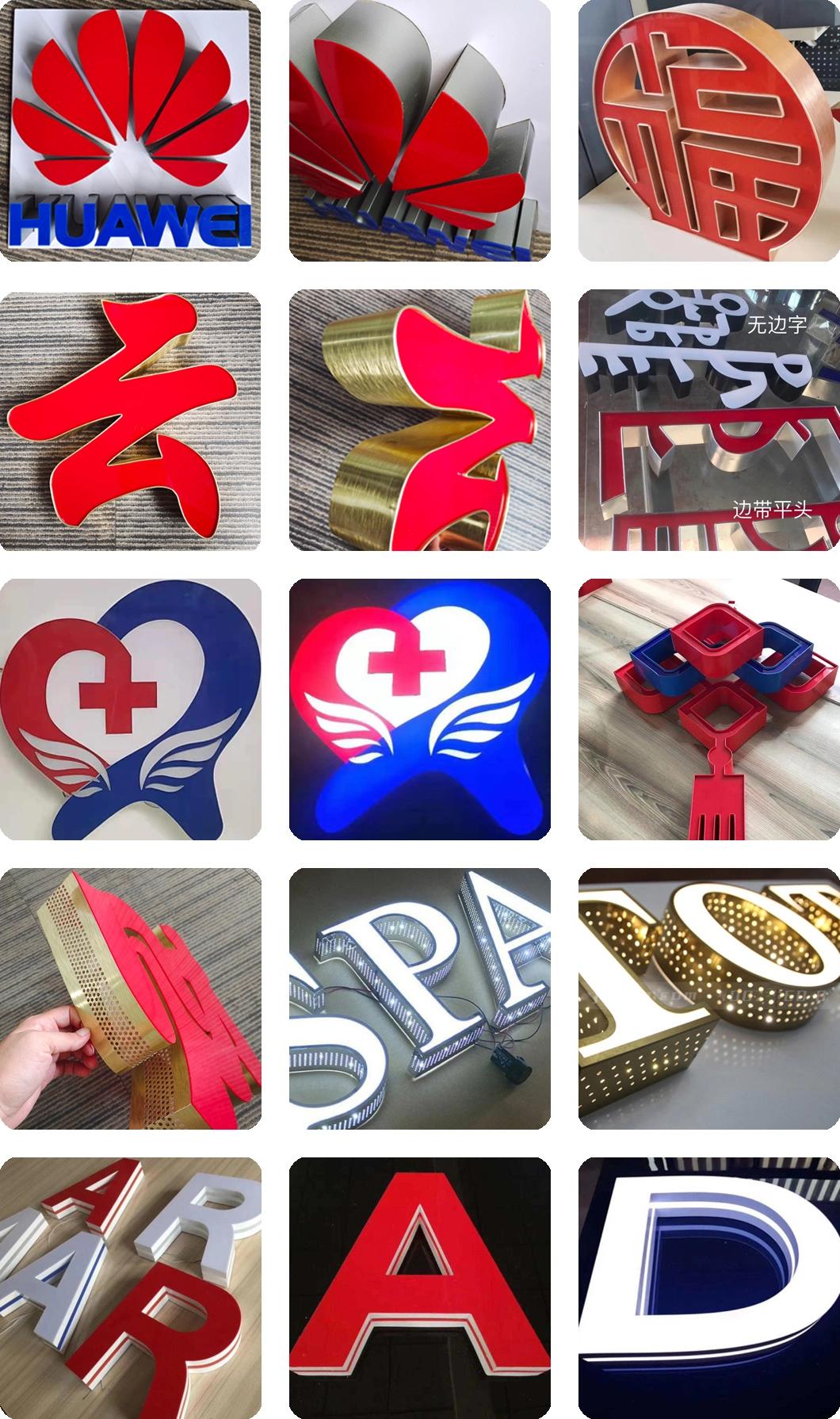

Sample of letters
-----------------------------
2in1 Channel Letter Bending Machine for Indoor and Outdoor Sign Letters

Exhibition show parts
-------------------------------
2in1 Channel Letter Bending Machine for Indoor and Outdoor Sign Letters

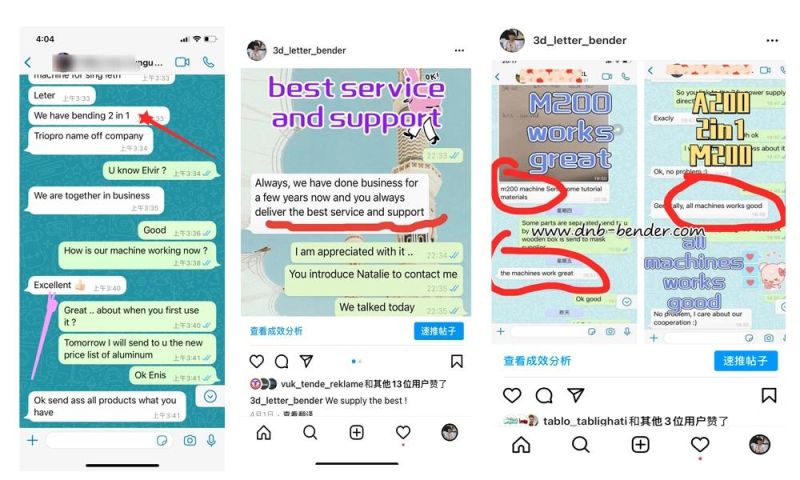

Some Feedbacks
---------------------------
2in1 Channel Letter Bending Machine for Indoor and Outdoor Sign Letters
Packing
------------------
2in1 Channel Letter Bending Machine for Indoor and Outdoor Sign Letters

Note:
If you have any questeion, pls feel free to contact me!

Also pls leave your email then send to you the detailed catalog and videos of machine working.
