• Model NO.：W62Y-3x6000D
• Trademark：Acemachinetools
• Origin：China
• HS Code：846221900
• Production Capacity：1000set,Year

Basic Info.

Model NO. W62Y-3x6000D Trademark Acemachinetools Origin China HS Code 846221900 Production Capacity 1000set/Year

Product Description

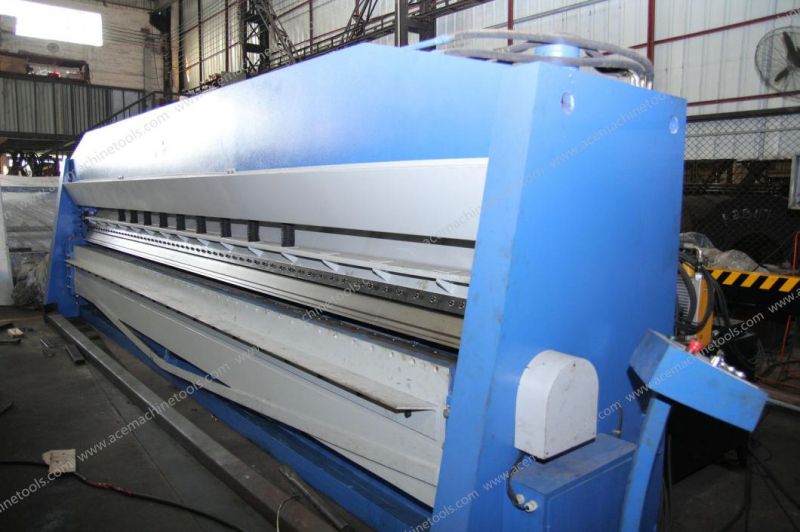

HYDRAULIC FOLDING MACHINE(W62Y-3x6000D)

Summary:
This machine is a kind of universal sheet folding machine.through one or more folding step,according step,
according to the need to replace tool at the same time.it can be bent into a variety of different cross section shape.
Widely used in automobile,shipbuilding,electrical appliances,kitchen utensils and applicances and air conditioning
ventilation equipment manufacturing and other industries.



Main technincal parameter:

Model W62Y-3x6000D	Specitication
Can flex plate thickness	0.5-3.0mm
Can be folding length	6000mm
The Angle of folding	0º-125º
Rest on the trip	8(times)/min
Rest on the range	140mm
Folded plate number	8(times)/min
The power supply voltage	380v
Main motor power	50HZ/11KW
Machine weight	(About)7500kg
Overall dimension(LxWxH)mm	7100x1900x2100
