• Model NO.：DW100NC

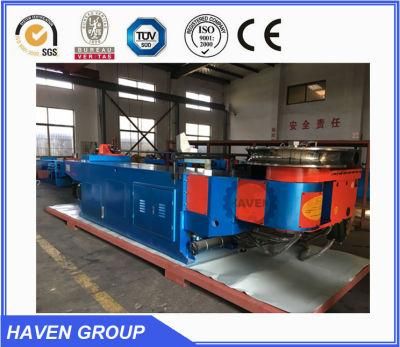

• Type：Pipe and Tube Bending Machine
• Control：NC System
• Machine type：Hydraulic
• Machine power：380V,50Hz,3pH or as your demand
• Machine color：As your demand
• Brand：HAVEN
• Transport Package：Veneer Case
• Specification：CE, SGS, ISO
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：200unis,Month

1. Minimum bending radius according to pipe diameter

2. Maximum bending radius according to customer requirements

3. Maximum core length of wear based on customer requirements
 maximum bending radiusmmR500minimum bend radiusmmR50maximum bending angleDegree190standard straight-lengthmm3600control system microcomputer controlelbow pipe to allow the number ofUnit16parts store a fewUnit16 × 16hydraulic motor powerKW15system pressureMpa14hydraulic system control solenoid valvetank capacityL300Overall sizemm5000 × 1600 × 1200machine weightKg5000
Characters:
1. The pipe bending machine is operated by NC, imported electric and hydraulic elements.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high
4.16 groups of bending information can be stored.  Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming. The safety is high.
6. Delicate design of the bending head makes the bending space large.

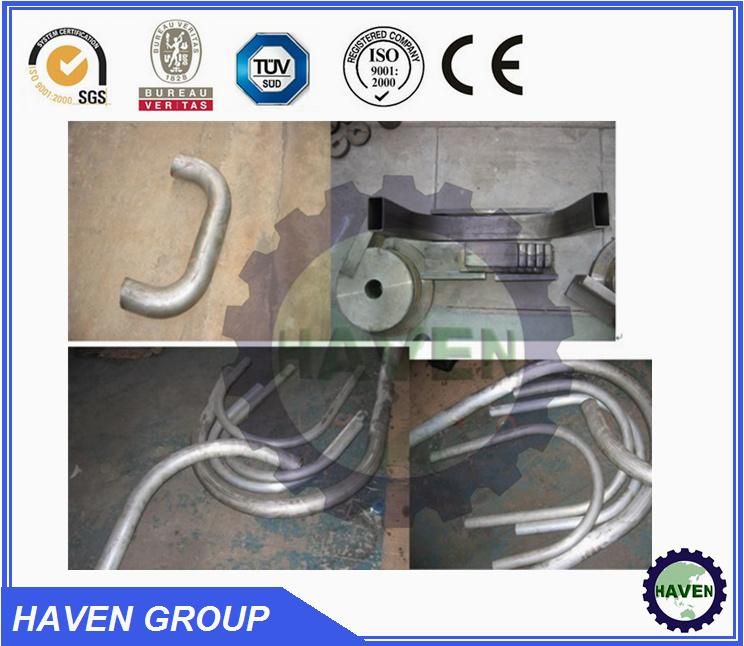

7. Suitable Materials: Steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.

Attached one set toolings for free

Standard Accessories:
Operation manual        one piece
Obturating ring            one set
Inner hexagon spanner    one set
Lubricating screw        one piece
