• Model NO.：WC,E67Y,K
• Advantage：Cheap ,Multifuntional and Eff
• Application：Machinery & Hardware
• Type for Fold-Bending Machine：Hydraulic Fold-Bend
• Transport Package：Standard Export Package
• Specification：ISO
• Trademark：Yaoqiang Technology
• Origin：Jiangsu, China
• Production Capacity：100 Pieces,Year

Basic Info.

Model NO. WC/E67Y/K Advantage Cheap /Multifuntional and Eff Application Machinery & Hardware Type for Fold-Bending Machine Hydraulic Fold-Bend Transport Package Standard Export Package Specification ISO Trademark Yaoqiang Technology Origin Jiangsu, China Production Capacity 100 Pieces/Year

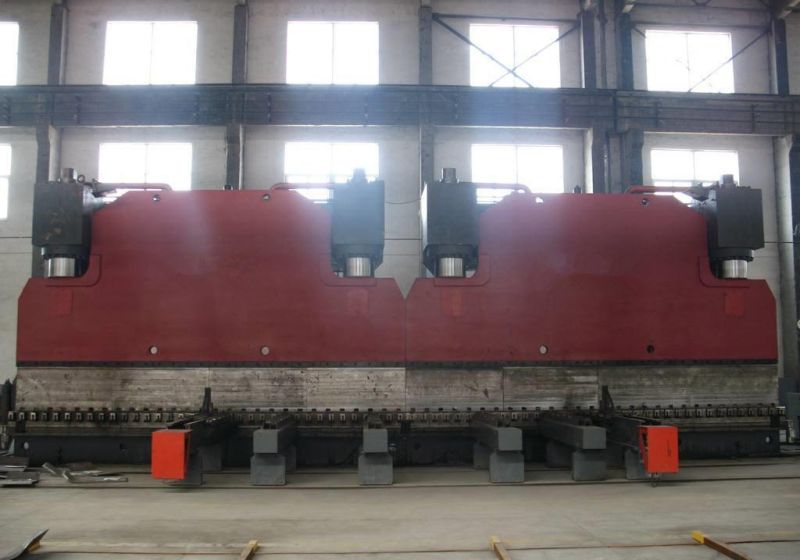

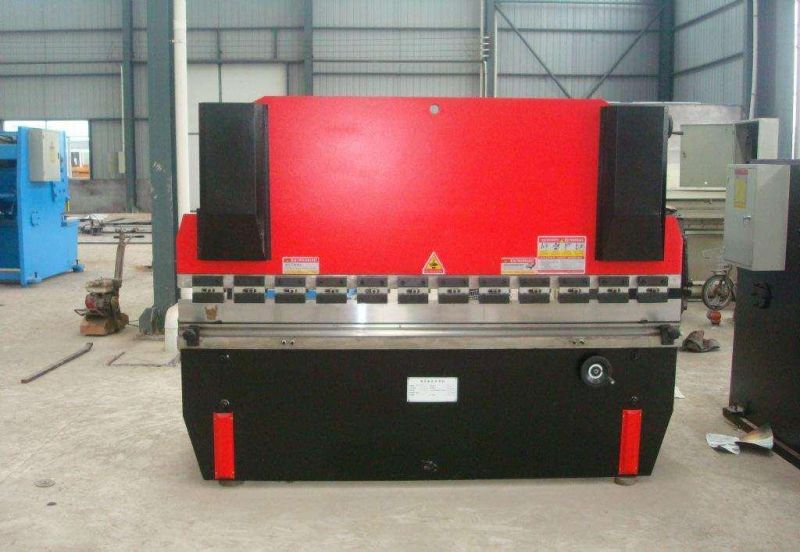

Product Description

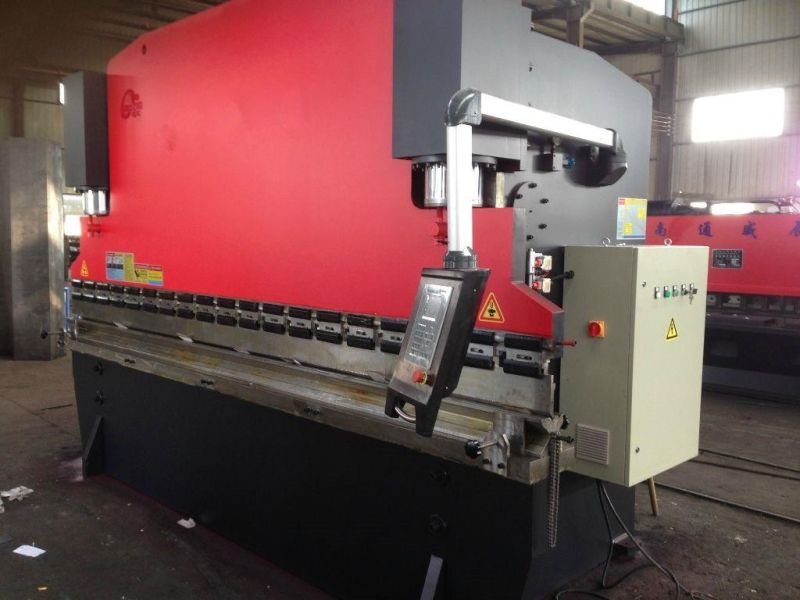

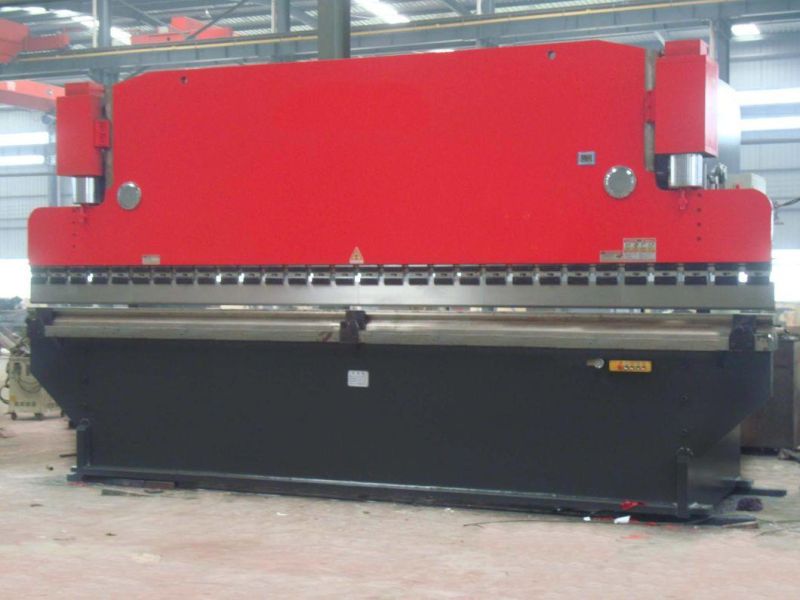

Main features:

1. Totally steel welding structure. Internal stress eliminated via vibration aging, with good strength and stability.
2. Rate of flow from servo proportional valve, and data from electronic meter, together control the sliders Y1&Y2 synchronous movement.
3. Slide repetition accuracy is 0.01mm, the bending angle is 0.5 º
4. Slider low and fast speed switch position and up limit stop position are sensed by grating ruler, and which feedback to computer and then adjust.

Specifications:

Slider travel: 120/150 mm;
Throat depth: 320 mm;
Max. Open height: 370/400 mm;
Nominal Pressure: 1250 KN;
Bending length 3200 mm;
Distance between holes 2580 mm;

Hydraulic System
The hydraulic adopts the integrated ways, which helps to reduce piping connection, eliminate oil leakage, improve the work stability, and beautify the machine appearance, the inner engaged gear pump manufactured by a famous Germany company is used to reduce the system noise and extend the service life.



Type	Nominal Pressue	Working table length(mm)	Distance withine standing columns(mm)	Open height(mm)	Throat depth(mm)	Backgauge range(mm)	Motpr power(mm)
WC/E67Y/K-40T/2500	400	2500	2050	210	200	110	4
WC/E67Y/K-63T/2500	630	2500	2050	235	250	120	5.5
WC/E67Y/K-80T/2500	800	2500	2050	330	320	120	7.5
WC/E67Y/K-80T/3200	800	3200	2560	330	320	120	7.5
WC/E67Y/K-100T/2500	1000	2500	2050	330	320	120	7.5

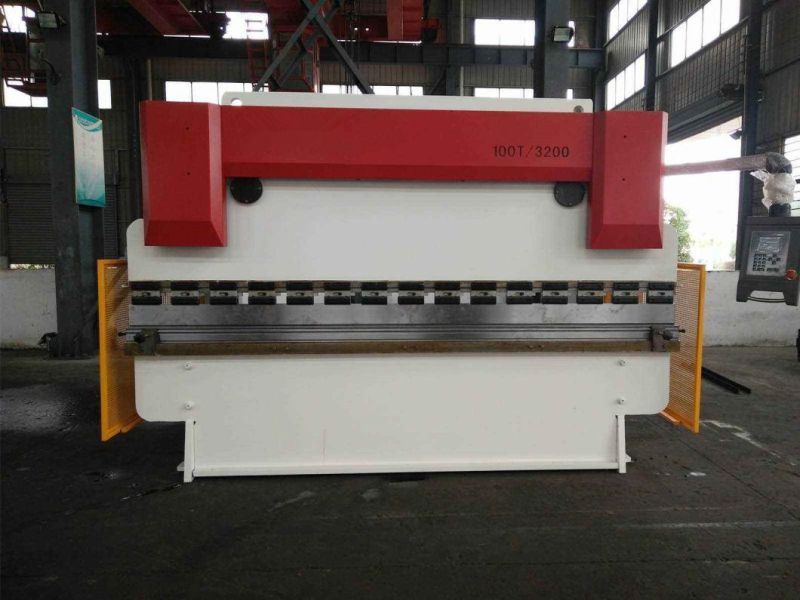

WC/E67Y/K-100T/3200	1000	3200	2500	330	320	150	7.5
WC/E67Y/K-100T/4000	1000	4000	2960	400	320	120	7.5
WC/E67Y/K-125T/3200	1250	3200	2500	330	320	150	7.5
WC/E67Y/K-125T/4000	1250	2500	2960	330	320	120	7.5
WC/E67Y/K-160T/3200	1600	3200	2500	400	320	200	11
WC/E67Y/K-160T/4000	1600	400	2940	400	320	200	11
WC/E67Y/K-160T/6000	1600	600	4600	400	320	200	11
WC/E67Y/K-200T/3200	2000	3200	2500	435	300	200	15
WC/E67Y/K-200T/4000	2000	4000	3100	435	300	200	15
WC/E67Y/K-200T/6000	2000	6000	4800	435	320	200	15
WC/E67Y/K-250T/3200	2500	3200	2500	435	320	200	18.5
WC/E67Y/K-250T/4000	2500	4000	3100	435	320	200	18.5
WC/E67Y/K-250T/6000	2500	6000	4800	435	350	200	18.5
WC/E67Y/K-300T/3200	3000	3200	2600	435	350	200	22
WC/E67Y/K-300T/4000	3000	4000	3100	435	350	200	22
WC/E67Y/K-300T/6000	3000	6000	4800	435	350	200	22

Electric Control System:

1. The electrical component and material meet the international standard, safe and long-lived.
2. The moving foot operated on-off can cut power urgently.
3. The other control components are all big brand.
4. The electrical's main circuit can avoid short circuit and over loading.
5. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
6. The stop button of pump is the main button. It is off then the whole machine is stop.
7. The machine fits the inching control and crash stop button.

Equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.





Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. E. The Wuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing, trading, management
And finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.


FAQ:
Q1: I knew nothing about this machine, how am i know this machine will meet my working needs?
Please tell us your workpiece size or show specific drawings, we will give you professional solutions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We provide overseas service and English manual, after installation, if any problems happen, we offer the remote video guidance and charging overseas service.
Q3: If some problems happen to this machine during warranty period, what should I do?
Contact us directly, we will supply free parts during machine warranty period. While we also supply free life long after-sales service.
Q4: If i want visit your factory, how can i get?
Company address:39#, Liandong U business park, Wuxi city, Jiangsu, China
Factory address:Xinhong Industrial Park, Dongtai Yancheng City, Jiangsu, China
1), Visa: if u need get a government visa, pls pay 20%(at least) prepayment for new customer. Wuxi government regulations. Thanks for support.
2), By train: Wuxi station. By air: Wuxi Shuofang Airport. We will drive u to our factory. 180km between Wuxi and Yancheng city.
Q5: Why your sales office at Wuxi, but your factory located at Yancheng?
10 years ago. In response to the Yancheng government investment invitation, our leader moved the factory from Wuxi to Yancheng, purchased 15,000 square meters of land and built factories. In order to reduce production costs and sustainable development.
Tips: At present, the Jiangsu government is building the provincial high-speed railway. It is expected that Yancheng will open the subway in 2022.
