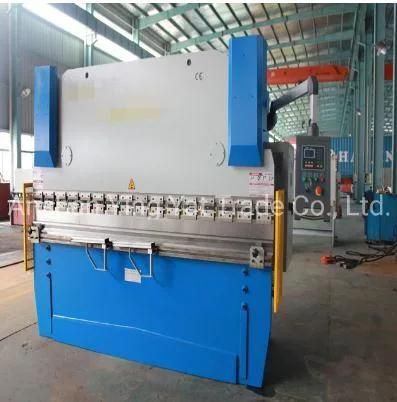

Wc67y-63X2500 Automatic Hydraulic Bending Machine From Esther
Anshan Ying Yat Trade Co., Ltd.- Waterproof Rating：IPX-1
- Warranty：2-year
- Condition：New
- Certification：CE
- Automation：Automatic
- Suitable for：Stainless Steel
Base Info
- Model NO.：WC67Y-63x2500
- Type：Hydraulic Bending Machine
- Transport Package：Export Standard Package
- Specification：2700x1300x2200mm
- Trademark：Ansteel
- Origin：Liaoning, China(Mainland)
- HS Code：8462219000
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. WC67Y-63x2500 Type Hydraulic Bending Machine Transport Package Export Standard Package Specification 2700x1300x2200mm Trademark Ansteel Origin Liaoning, China(Mainland) HS Code 8462219000 Production Capacity 100sets/MonthProduct Description
Product Description:1.Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity.
2.Hydraulic top-drive, steady and reliable.
3.Mechanical stop and steel torsion bar to maintain synchronization and high precision.
4.Electric adjustment, manual fine adjustment, and digital display for backgauge distance and stroke of up ram.
5.Deflection compensation unit installed on the up die or on the down die if the operating pressure is 250t or above
| NO. | ITEM | PARAMETER | UNIT |
| 1 | model type | WC67Y-63x2500 | 1 set |
| 2 | capacity | 630 | KN |
| 3 | max bending length | 2500 | mm |
| 4 | column distance | 2000 | mm |
| 5 | throat depth | 250 | mm |
| 6 | slide stroke | 100 | mm |
| 7 | max open shut | 320 | mm |
| 8 | strokes | ≥10 | times/min |
| 9 | main motor | 5.5 | kw |
| 10 | weight | 4000 | kg |
| 11 | outsize | 2700x1300x2200 | mm |
