• Model NO.：FA1200D,1800D,2400D
• Cooling Way：Both Water and Air Cooling
• Bending Thickness：0-15mm
• Bending Angle：0-180
• Bending Size：1200,1800,2400,2500,3000mm
• Transport Package：Plywood
• Specification：1200,1800,2400
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：50PC,Month

Basic Info.

Model NO. FA1200D/1800D/2400D Cooling Way Both Water and Air Cooling Bending Thickness 0-15mm Bending Angle 0-180 Bending Size 1200/1800/2400/2500/3000mm Transport Package Plywood Specification 1200/1800/2400 Trademark FLYING Origin China HS Code 8456100090 Production Capacity 50PC/Month

Product Description

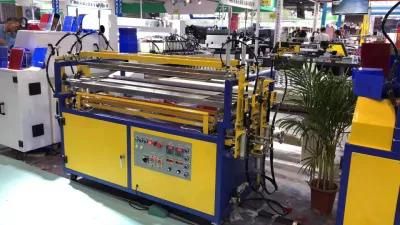

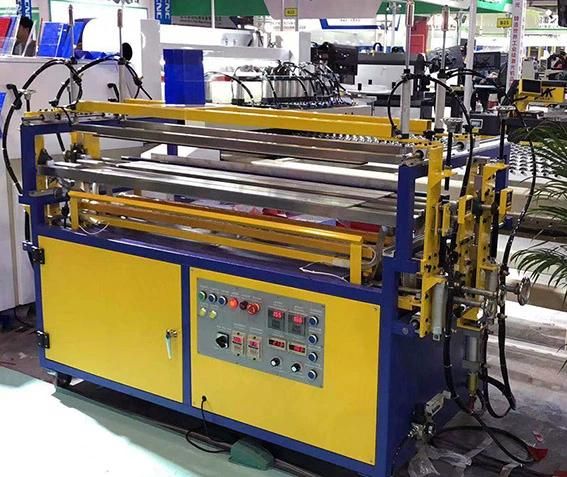

1200mm/1800mm/2400mm automatic plastic acrylic bending machine

Introduction:
   Bending machine is widely used for bending the materials like acrylic, plastic, PC, PVC and PP. The machine bends the materials into different angles by heating up the materials with single or multi tube heaters. This machine is fast and precise. Working plateforms are cooled by water cooling system for the best result, highest efficiency and precise angle forming. The adjustable temperture works out for different materials correctly without over heating causing bubbles and undesirable curves. This is an ideal machine for the acrylic and plastic works.

  Advantage:
Height adjustable device for bottom heaterAadjustable heating widthDigital thermostat for bottom heaterDural cooling system(water cooling and air cooling).

Specification:
1. Power: 220V/110V (+-10%), 50Hz/60Hz, 3000W
2. Bending angles: 0' ~180'
3. Thickness of materials: 0-15mm
4. Width: 1200mm/1800mm/2400mm/2500mm/3000mm
5. Length: Unlimted

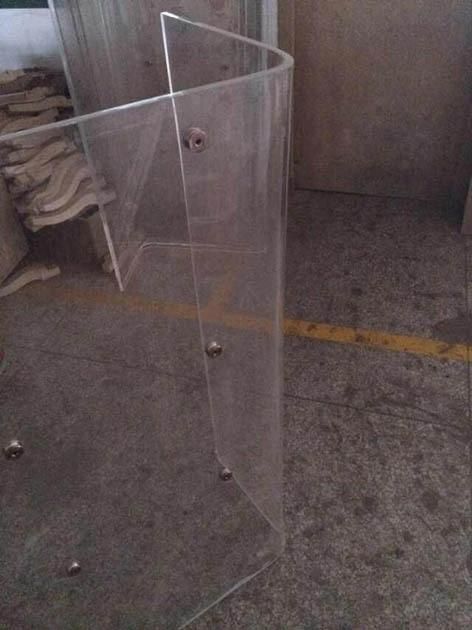

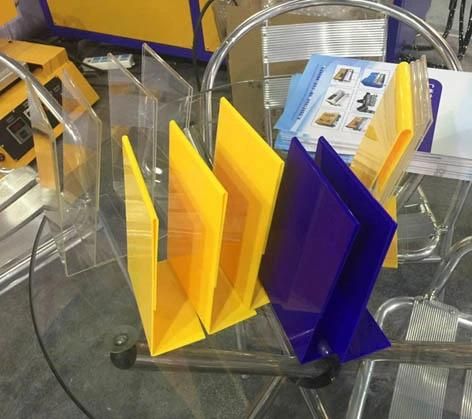

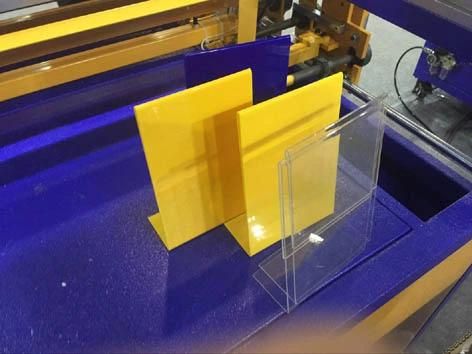

6. Applications: Angle and radian bending for acrylic sheet, organic sheet, PVC foam sheet, etc...
7. Process: Put the sheet into the intenerating slot, start the sheet pressing facility to fix it, when it rises to certain temperature, the system will give alarm automatically, then bend the sheets to certain angles or radians, when it's cooling, it's moulding.
