• Model NO.：WC67Y
• Transport Package：Sea Worthy Packing
• Specification：CE, ISO,
• Trademark：Acemachinetools
• Origin：China
• HS Code：84622990
• Production Capacity：100sets,Month

Basic Info.

Model NO. WC67Y Transport Package Sea Worthy Packing Specification CE, ISO, Trademark Acemachinetools Origin China HS Code 84622990 Production Capacity 100sets/Month

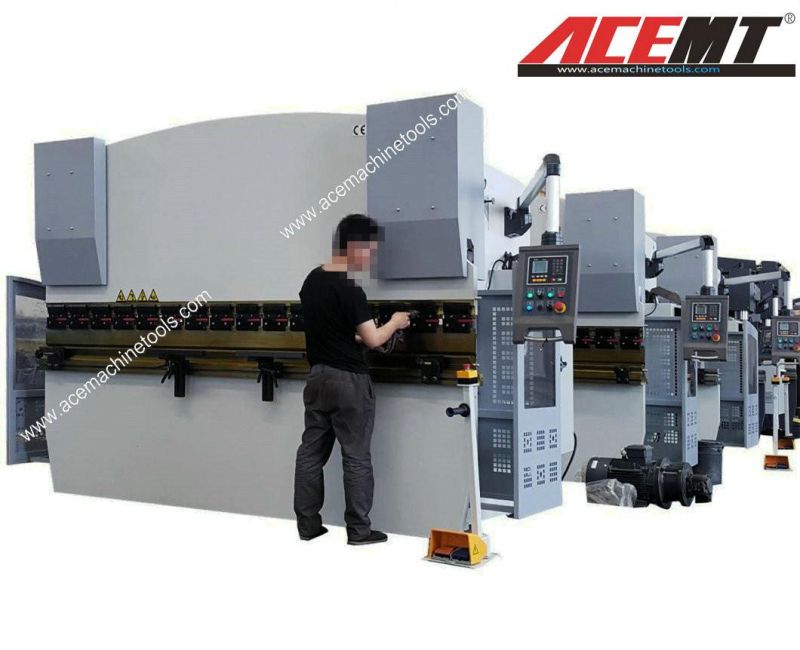

Product Description

Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.

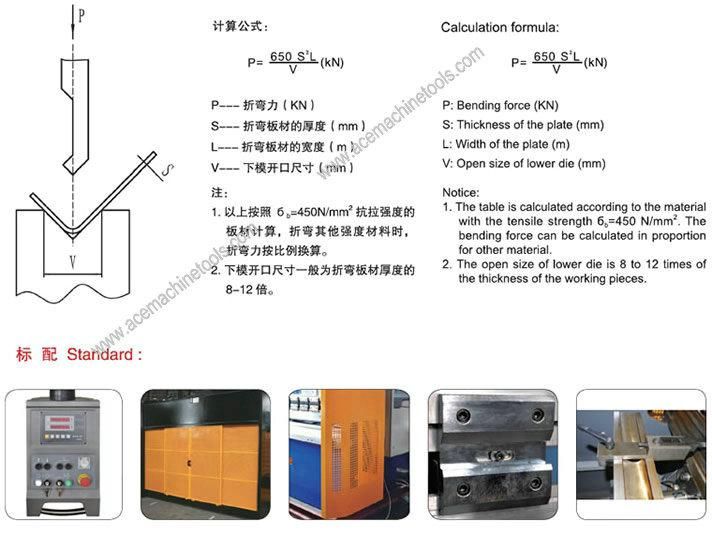

Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter
 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter


Model	Nominal Pressure (kN)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)	weight (t)
40/2000	400	2000	1600	200	110	335	4	2545x1510x2050	3
40/2500	400	2500	2000	200	110	335	4	2950x1510x2080	3.5
63/2000	630	2000	1600	250	110	350	5.5	2555x1600x2130	3.8
63/2500	630	2500	2000	250	110	350	5.5	2960x1600x2180	4.2
63/3200	630	3200	2600	250	110	350	5.5	3740x1600x2230	5.2
100/2500	1000	2500	2000	350	150	400	7.5	2980x1650x2330	6.3
100/3200	1000	3200	2600	350	150	400	7.5	3740x1650x2355	7
100/4000	1000	4000	3200	350	150	400	7.5	4550x1650x2450	8.8
100/5000	1000	5000	4000	350	150	400	7.5	5100x1500x2650	11.8
125/2500	1250	2500	2000	350	150	410	7.5	3980x1650x2370	7.5
125/3200	1250	3200	2600	350	150	410	7.5	3750x1650x2450	8.2
125/4000	1250	4000	3200	350	150	410	7.5	4550x1650x2470	9
125/5000	1250	5000	4000	350	150	410	7.5	5100x1500x2795	11.5
125/6000	1250	6000	4500	350	150	410	7.5	6100x1500x2895	14
160/2500	1600	2500	2000	350	150	425	11	2980x1715x2410	8.5
160/3200	1600	3200	2550	350	150	425	11	3750x1715x2450	11
160/4000	1600	4000	3200	350	190	450	11	4550x1715x2730	12
160/5000	1600	5000	4000	350	190	450	11	5100x1570x2900	15.5
160/6000	1600	6000	4500	350	190	450	11	6100x1570x3010	19
200/3200	2000	3200	2600	350	240	460	11	3750x1815x2715	13
200/4000	2000	4000	3200	350	240	460	11	4550x1815x2850	14
200/5000	2000	5000	3800	350	240	460	11	5100x1715x3020	18.5
200/6000	2000	6000	4500	350	240	460	11	6100x1715x3120	21
250/3200	2500	3200	2600	400	240	525	11	3750x2010x2850	15.5
250/4000	2500	4000	3200	400	240	525	11	4550x2010x3010	17
250/5000	2500	5000	3800	400	240	525	11	5100x1890x3190	21.5
250/6000	2500	6000	4500	400	240	525	11	6100x1890x3350	28
300/3200	3000	3200	2600	400	250	545	15	3740x2100x3235	19.5
300/4000	3000	4000	3200	400	250	545	15	4340x2100x3300	22
300/5000	3000	5000	3800	400	250	545	15	5100x2100x3430	26
300/6000	3000	6000	4500	400	250	545	15	6100x2100x3490	29
