• Model NO.：WE67K-125,4000
• Control Axis：4+1 Axis
• Voltage：380V 50Hz 3phase
• Main Motor：18.5kw
• Hydraulic System：Rexroth Brand From Germany
• Hydraulic Pump：Rexroth or Sunny USA
• Weight：8500kg
• out Dimension：L*W*H=4080*1400*2430mm
• Worktable：Hydraulic Cylinder Compensation
• Throat：320mm
• Distance Between Frame：3200mm
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：CE; ISO9001: 2008
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84622990
• Production Capacity：100units,Month

Basic Info.

Model NO. WE67K-125/4000 Control Axis 4+1 Axis Voltage 380V 50Hz 3phase Main Motor 18.5kw Hydraulic System Rexroth Brand From Germany Hydraulic Pump Rexroth or Sunny USA Weight 8500kg out Dimension L*W*H=4080*1400*2430mm Worktable Hydraulic Cylinder Compensation Throat 320mm Distance Between Frame 3200mm Transport Package Base Framed by Channel Steel and Plastic Bag Specification CE; ISO9001: 2008 Trademark ZDMT Origin China(Mainland) HS Code 84622990 Production Capacity 100units/Month

Product Description



Product Application

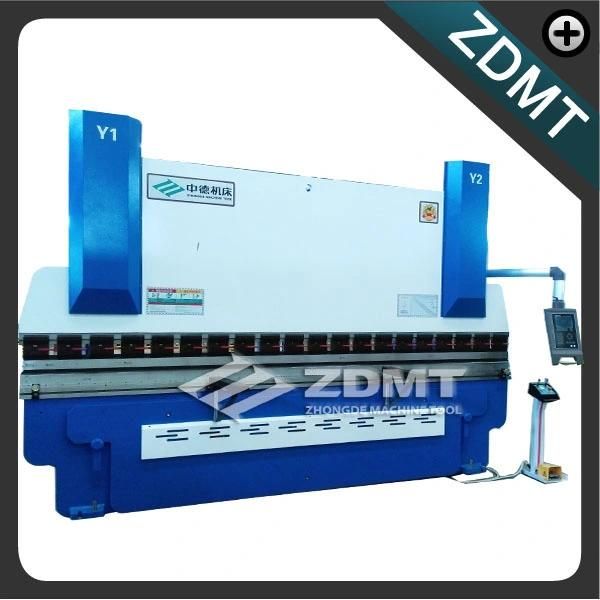

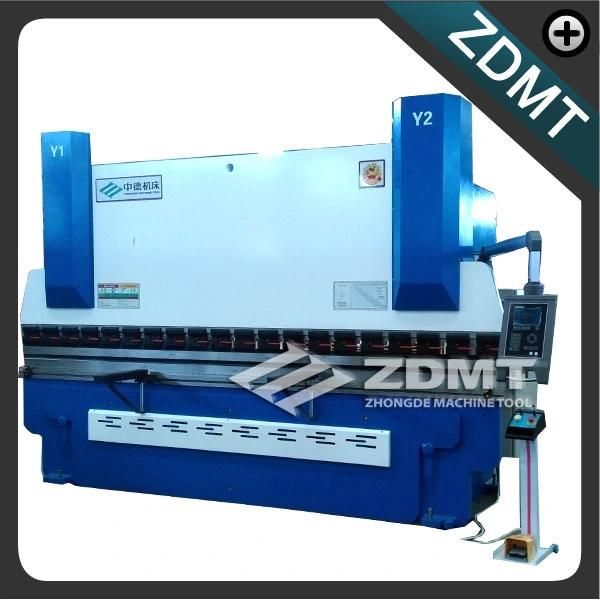

WE67K-1250/4000 electro-hydraulic Synchronous CNC press brake with Delem DA52S control 4+1 axis

Main features:
Max bending width 3200mm Max bending perssure:1000KN
Machine weight:7300KG 380V 50HZ 3 Phase

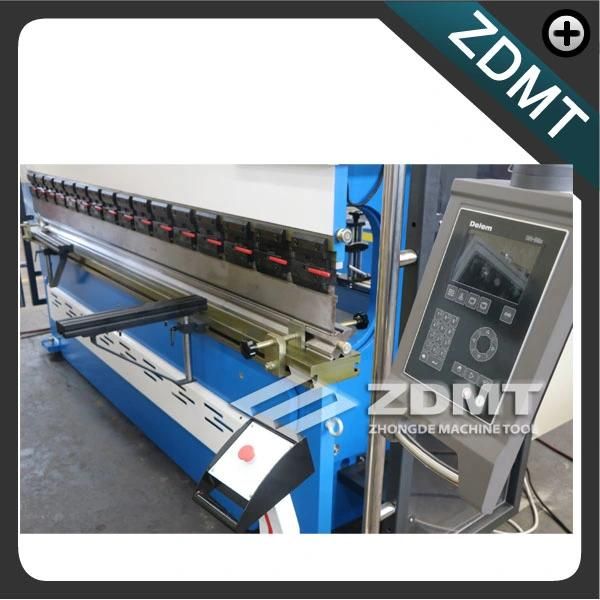

Delem DA-66T control Y1 Y2 X  R axis+C hydraulic cylinder compensation for worktable


Servo motor and drive: Japanese Yaskwa

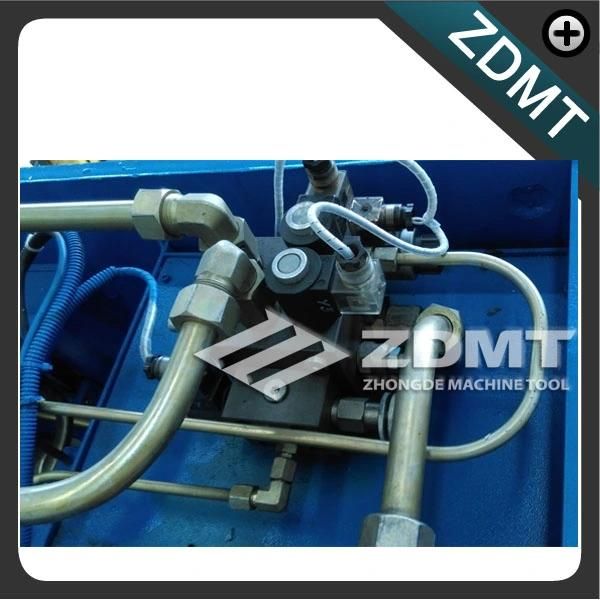

Hydraulic system: Germany Boschrexroth
Ball bearing lead screw: Taiwan
Straight-line guide: Taiwan Hiwin
Seal ring: Germany Fietz or Japanese Valqua
Raster ruler: Germany Heidenhain
Main electrical elements: schenider or Siemens
21 langauge backgauge concede automatic
Standard mould with quick die changing and clamping
Optional: FIESSLER safety light with CE verified / Delem DA52S /Delem DA69T 3D
Quality control: ISO9001:2008 CE
