Boway Lb 6120 Channel Letter Bender Essed: Plastic, PVC, Aluminium Alloy, Aluminum
Hangzhou Fuyang Huibo Hansway (BOWAY) Trading Co., Ltd.- Waterproof Rating：IPX-0
- Warranty：1-year
- Condition：New
- Certification：CE
- Automation：Automatic
- Suitable for：Plastic, Aluminum, Alloy
Base Info
- Model NO.：LB 6120
- Specification：1380*680*1370MM
- Origin：China
Description
Working Principle
Auto feed, Auto Slot(Cut), Auto Bend

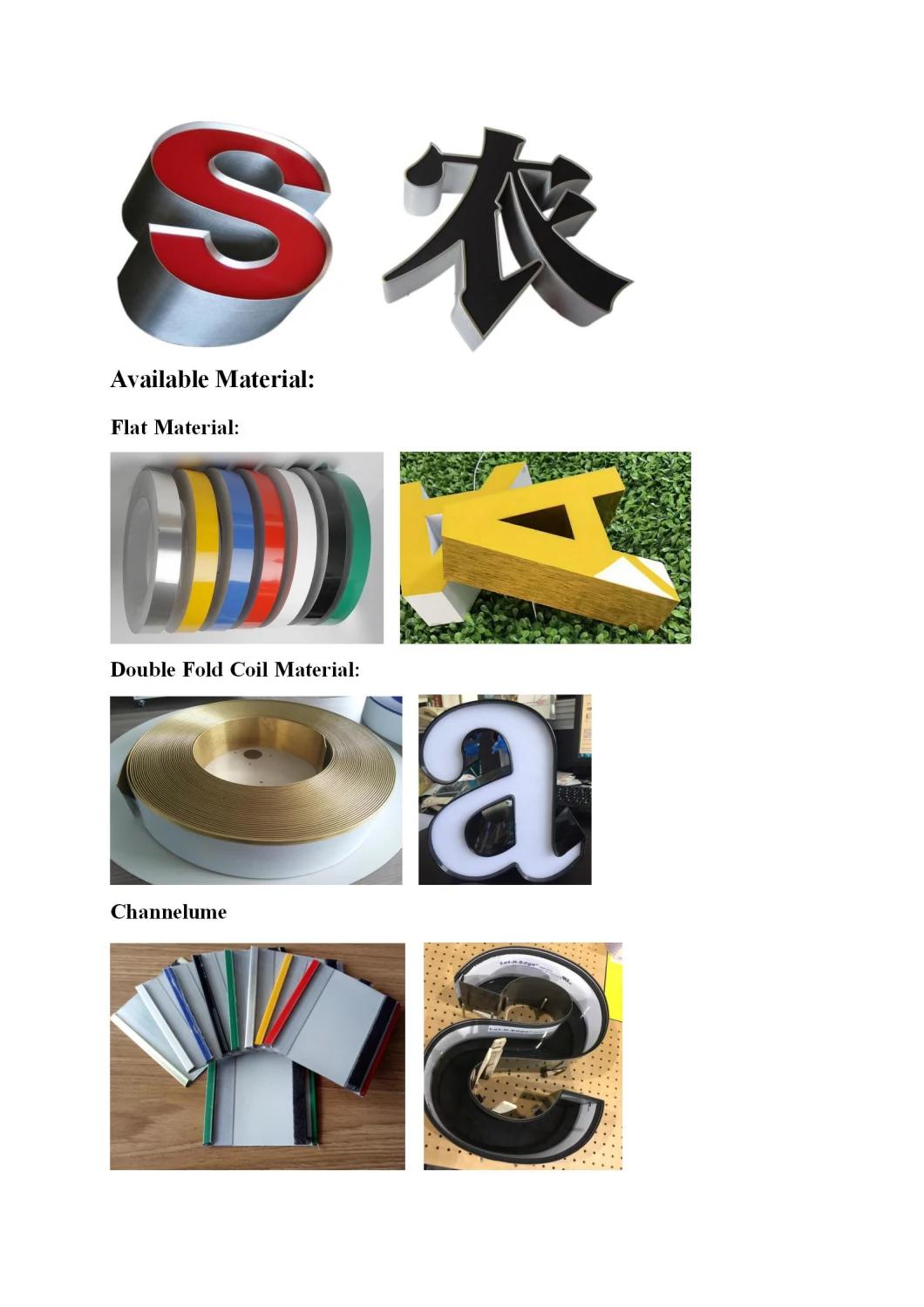

Processing Material
Steel,Iron,Copper, Flat Aluminum
Material Height
120mm(Custom height available)
Material Thickness
SS≤1;Glavnizeed Sheet≤1.2 Flat Aluminum:≤1.5
Feeding Speed
2-5Meter/min
Min Bending Diameter
≥10mm
Bending Mode
Single-Axis Patting
Driveing Motors
2 Servo, 2 Stepper
Voltage
220V
Power Supply
≤2000W
Air Compressor
≤0.6Mpa
File Format
AI,Dxf,plt
Machine Weight
350kgs
Machine Size
1380*680*1370MM
Performance Advantages:
1. Encoder control feeding length, Auto-Compensation on slipping.
2. Adjust cutting depth automatically by software.
3. The whole machine adjust by software, no any working part adjusted by hand any more.
4. Easy to Adjust. With more functional software, one software setting could work on different material.

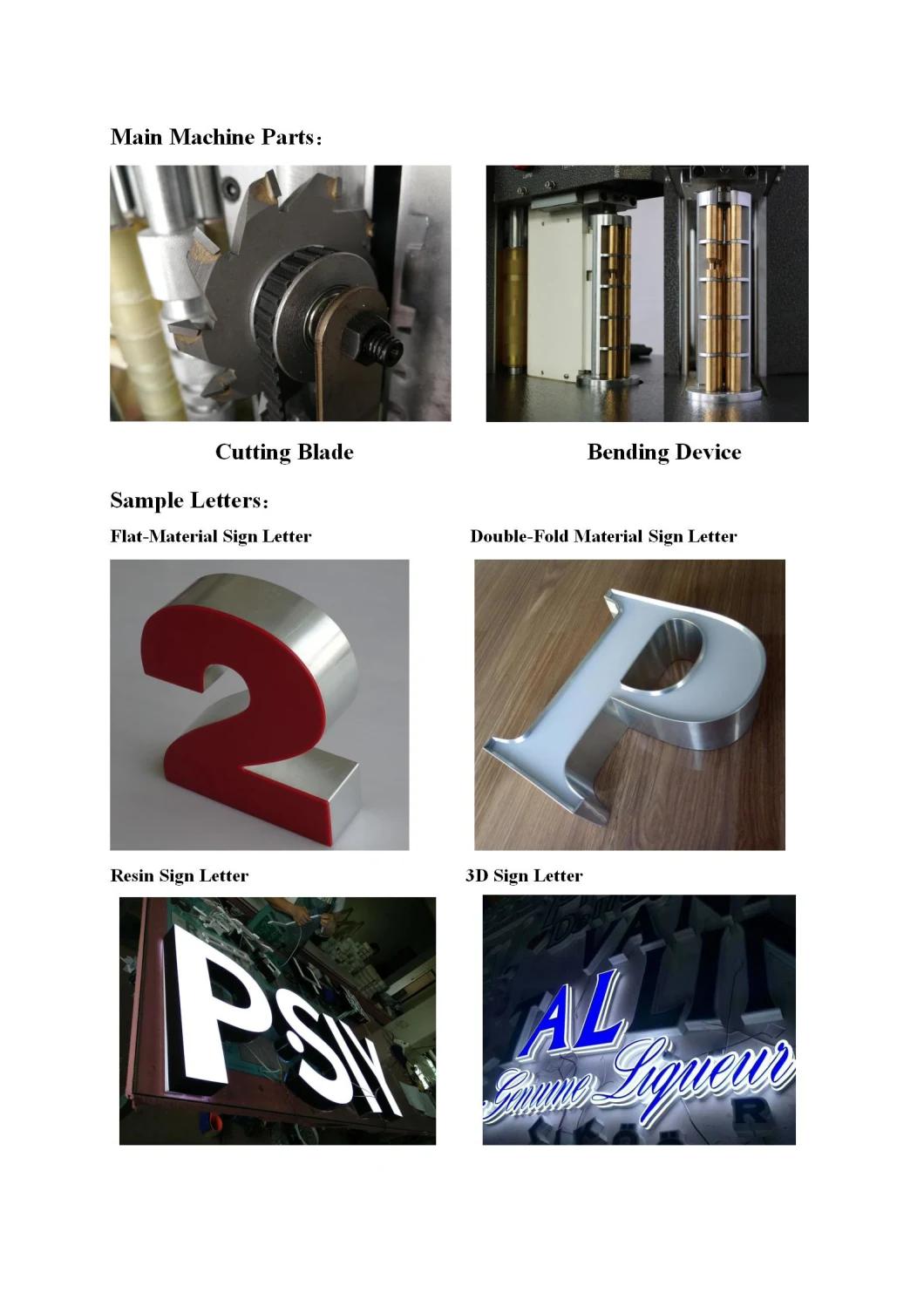

5. Bender Device(Head) adopt Steel Structure:
As the main structure of the machine, the bender device(Head) made by steel, more stable and stronger during bend-working.
6. As the core part of motion card, we use high-class CPU. Its cost come up to 2-3 times than other machine suppliers.
7. Software more functional: compensation on straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Easy to Adjust. With more functional software, one software setting could work on different material.
9. Can read AI,DXF and PLT format. Perfect match CNC Router.
