Multi Axis Spring Making Machine Camless Spring Making Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Waterproof Rating：IPX-5
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Automatic
- Suitable for：Stainless Steel
Base Info
- Model NO.：GT35-12R
- Type：Cnc Bending Machine
- Transport Package：Standand Export Wooden Box
- Specification：1500x1250x1860mm
- Trademark：WG
- Origin：China
- HS Code：8463300000
- Production Capacity：100 Set Per Year
Description
Basic Info.
Model NO. GT35-12R Type Cnc Bending Machine Transport Package Standand Export Wooden Box Specification 1500x1250x1860mm Trademark WG Origin China HS Code 8463300000 Production Capacity 100 Set Per YearProduct Description
Camless CNC Spring Making Machine
Parameter:
| Model | GT35-12 |
| Wire Dia.(mm) | 0.8-3.5 |
| Min./Max.wire feeding value(mm) | 0.01/10000 |
| Max.wire feeding speed(m/min.) | 120 |
| Max.wire feeding | umlimited |
| Axis number | 12 |
| Total output power of servo motors | 17.6KW |
| Input power supply | 380v/50hz/3ph |
| Contral system | Made in Taiwan |
| Program storage | 3000 |
| Compressor air presure | 5-6 |
| Probe number | 3 |

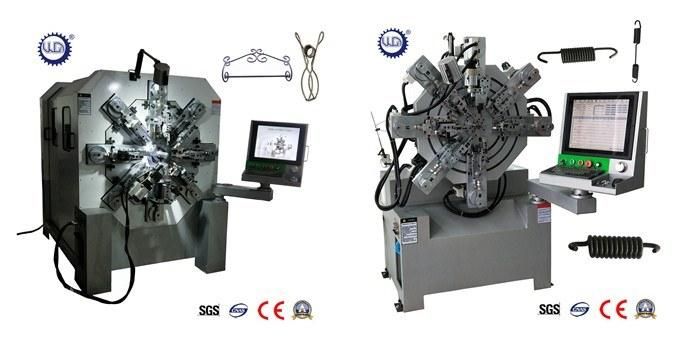

Detailed ImagesThis machine is designed to have no cam and without swing arm, which shorten the installation time and labour cost. less skill will be enough for tough task. keeping the advantage of traditional forming machine. excellent servo motors and reducers ensures
excellent movement and precision of forming.

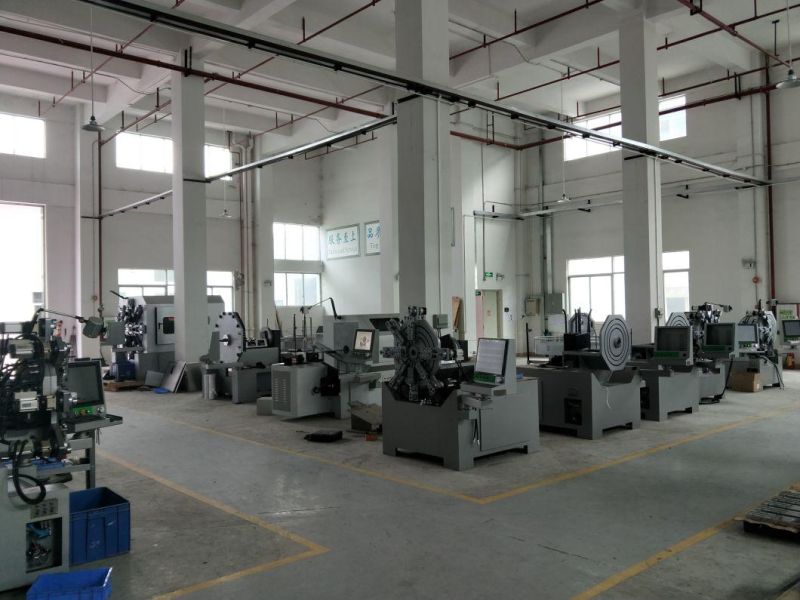

One of Workshop:
Packing and Delivery:

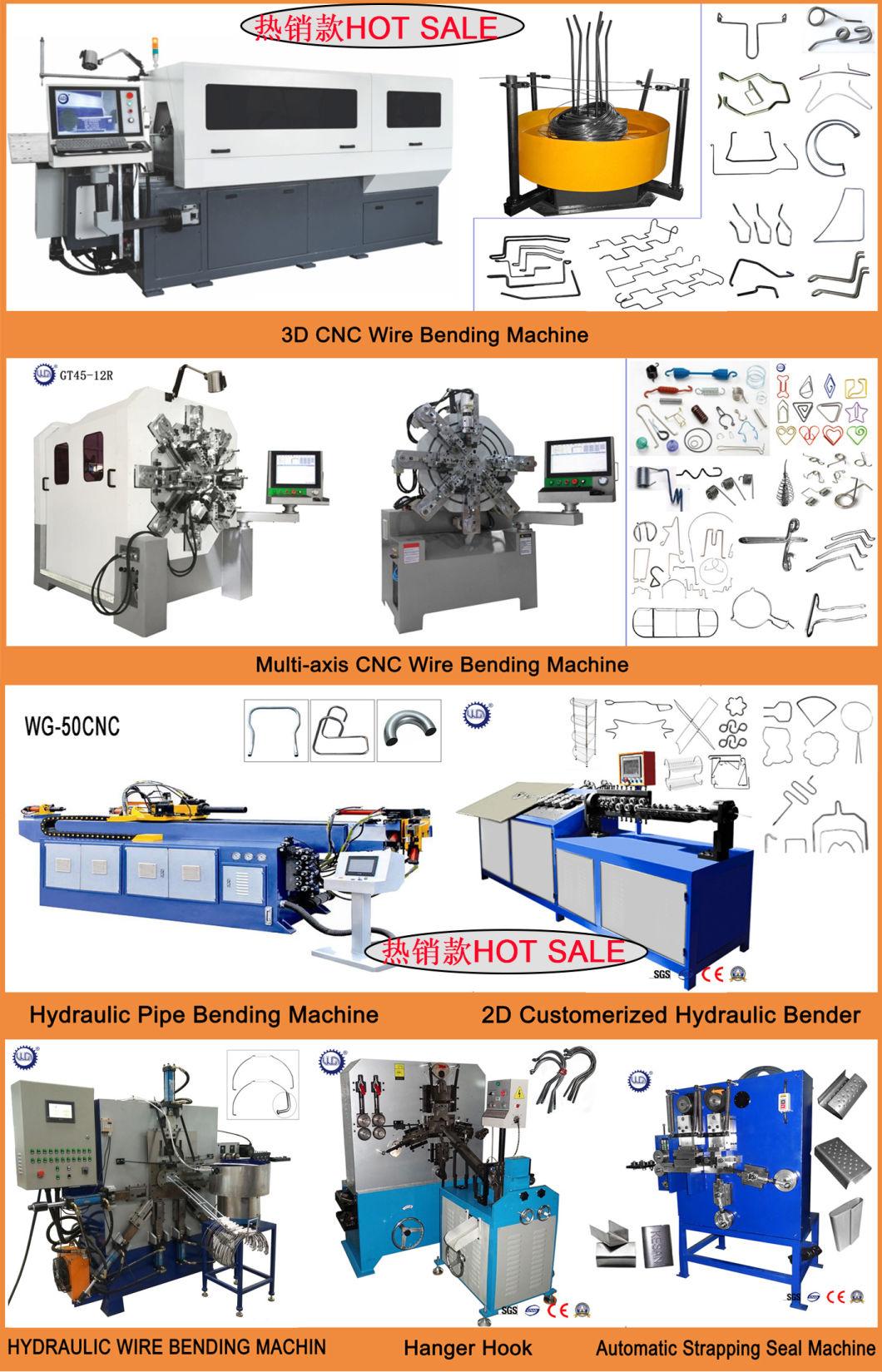

Related products:
More details pls contact us:
