7 Axes CNC Automatic 3D Wire Head Zigzag Bending Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Waterproof Rating：IPX-1
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：GT-WB-120-7A
- Type：Cnc Bending Machine
- Product Name：7 Axes CNC 3D Wire Head Zigzag Bending Machine
- Axes：7
- Wire Size：5.0-12.0mm
- Weight：8600kg
- Transport Package：Standard Fumigated Wooden Case
- Specification：450x180x170cm
- Trademark：WG
- Origin：Dongguan, China
- HS Code：8462299000
- Production Capacity：10 Sets,Month
Description
Basic Info.
Model NO. GT-WB-120-7A Type Cnc Bending Machine Product Name 7 Axes CNC 3D Wire Head Zigzag Bending Machine Axes 7 Wire Size 5.0-12.0mm Weight 8600kg Transport Package Standard Fumigated Wooden Case Specification 450x180x170cm Trademark WG Origin Dongguan, China HS Code 8462299000 Production Capacity 10 Sets/MonthProduct Description

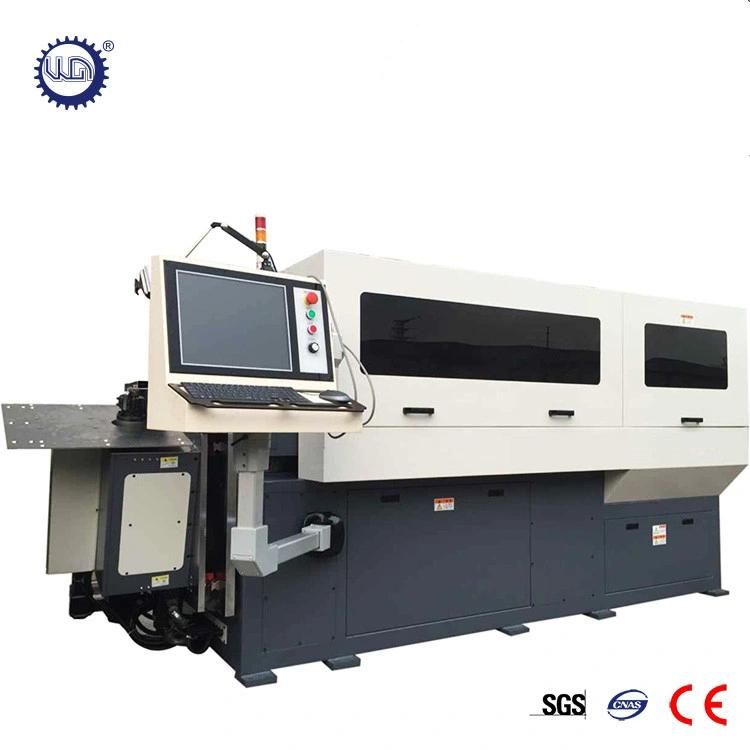

7 Axes CNC Automatic 3D Metal Wire Head Zigzag Bending MachineProduction Description

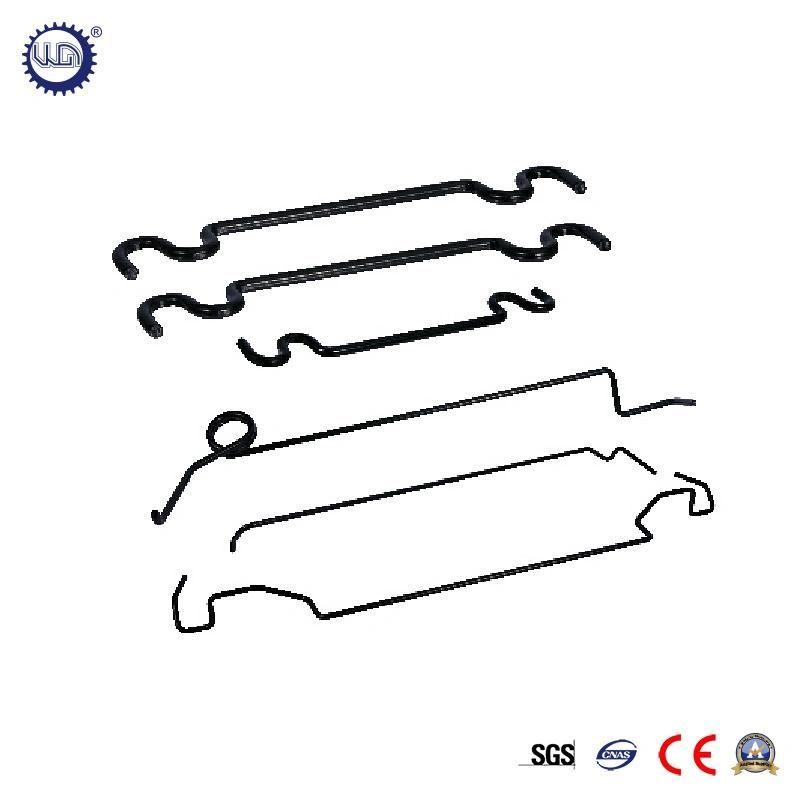

CNC automatic metal wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Features:
1.3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
2.Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
1. Auto Industry area
2. Metal wire industry
3. Display table and cargo shelf
4. Furniture and Kitchen
5. Hardware industry
6. Mattress, Sofa spring area
7. Architecture area
Technical Paramter:
| Model | GT-WB-120-7A |
| Wire size(mm) | 5.0-12.0 |
| axis | 7 |
| feeding roller number | 4 pairs |
| wire turning angle | unlimited |
| platform lifting height | 25-120mm |
| twisting head lift height | 20-80mm |
| distance between cutting and bending head | 305mm |
| distance between bending head and machine body | 800mm |
| out twisting lifting height | / |
| left to right moving range | / |
| Feeding front and back moving range | / |
| machine size(cm) | 450x180x170 |
| machine weight(kg) | 8600.0 |
7 Axes CNC Automatic 3D Metal Wire Head Zigzag Bending Machine
Dongguan Xinsheng Hardware Machinery Co.,Ltd
Address:Zhongfeng industrial area, Niushan village, Dongcheng district,Dongguan city,China 523000
Tel:86 769 22335483 Fax:86 769 28337840
WechatWhatsApp: +86 13026819109
