• Model NO.：GM-DB-42B
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：CE
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-DB-42B Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification CE Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

1. Characteristics of the machine:
(1) The control system has normal PLC type and contact digital control type.
(2) According to different base frame, it can be divided into standard type and rotary type.
(3) Hand-operated, auto, semi-circulation and other functions can be chosen.

(4) PLC control, imported electric elements. The program can be stored forever, no losing.
(5) Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.

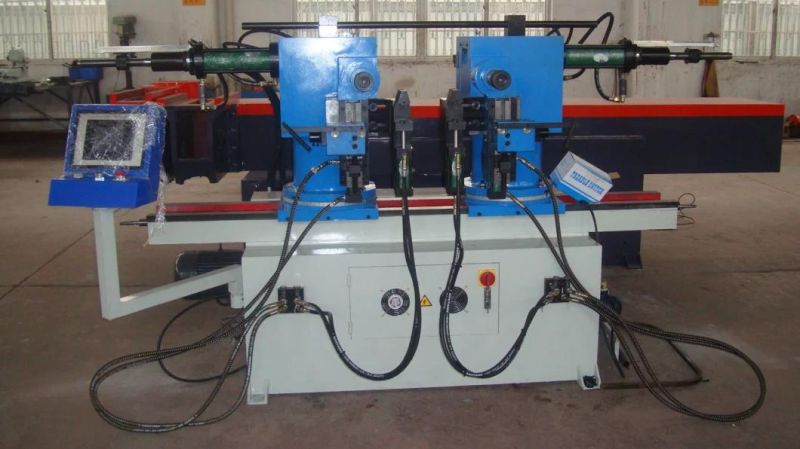

(6) Double head can be used separately.
(7) Three pieces can be bended one times.

2. Main technical parameters

Main technical parameters unit GM-dB-42B
Max pipe bending capacity mm 42× 2
Bending radius region mm 42~250
Max bending angle region ° 185°
Centre distance of double head mm 170-1450
Main motor power kw 4
Bending speed ° /sec 50
Oil flow productivity of the pump L 17
Oil system pressure mpa 14
Clamping traverse mm 50
Pieces of one time bending piece 3
Capacity of oil tank L 120
Machine dimension mm 2700× 900× 1800
Machine weight kg 1800

3. The main Configuration:
A) Hydraulic systems
Hydraulic motor: Made in Taiwan
Hydraulic Pump, made in Taiwan
Hydraulic Elements, made in Taiwan
Oil way board, made in Taiwan
Cylinder, made in Taiwan
Double-layer laminated steel tubing used legitimately imported Taiwan Datong
B) Electronic parts
Touch screen made in Taiwan
PLC made in Taiwan
Other Electronic, made in Taiwan
