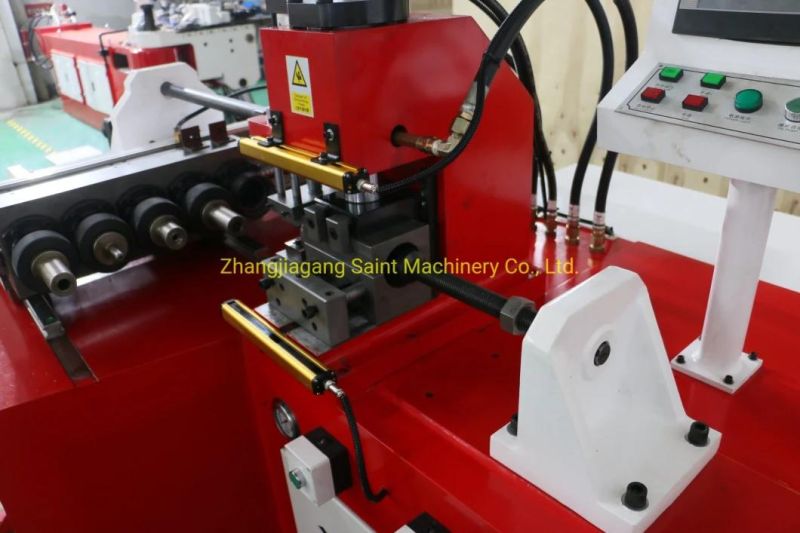

High Standard CNC Automatic Single-Head Straight Punching Three-Station Tube End Forming Machine for Automotive Industry

Zhangjiagang Saint Machinery Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation：Automatic
  • Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Base Info

  • Model NO.：TM30-3
  • Type：Pipe End Forming Machine
  • Forming：Hydraulic 5t
  • Tool Shift：Servomotor
  • Transport Package：Plywood Case
  • Specification：LWH: 1400× 700× 1400mm, GW: 800kg
  • Trademark：STM
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：500

Description

Basic Info.

Model NO. TM30-3 Type Pipe End Forming Machine Forming Hydraulic 5t Tool Shift Servomotor Transport Package Plywood Case Specification LWH: 1400× 700× 1400mm, GW: 800kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

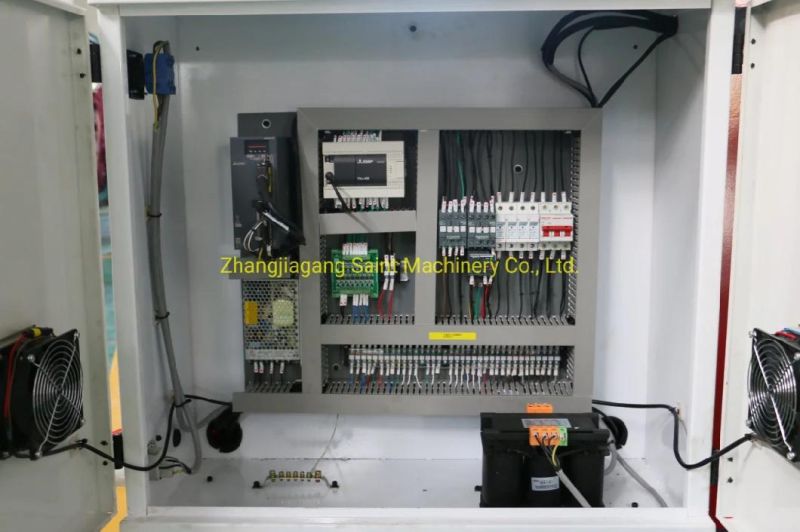

Imported PLC unit control, touch screen, convenient opration, flexible settings and easy to learn

Adopting Mitsubishi servo motor to change moulds, accurately and steady.

Very stable structure to ensure long time swaging.

Adopting high-accuracy linear slide rail, stable propulsion

Can equipe with all kinds of forming moulds, for pipe end forming like expanding, contracting and other special forming

Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature

ParametersTM20TM30
Max processing capabilityφ20mmφ30mm
Max processing length70mm80mm
Main cylinder nominal output4.5T5T
Motor power4Kw4Kw
Oil pressure12MPa12MPa
Size1300×700×1300mm1400×700×1400mm
Weight700kg800kg
