• Availabe Material：Aluminum, Stainless Steel, Galvanized Iron
• Slot Angle：45°-135°(Just for Aluminum)
• Bending Radius：≥10mm
• Max Processed Width：≤128mm
• Material Thickness：Aluminum 0.3-1.2mm, Stainless Steel≤1mm
• Machine Power：≤1800W
• Machine Size：≤1800W
• Machine Weight：400kg
• After-Sale Service：Engineer Speaking English Available
• Transport Package：Standard Export Package Which Can Protect Machine
• Specification：CE, SGS, TUV
• Trademark：Baoyuantong
• Origin：Weifang, China
• HS Code：84798190
• Production Capacity：80 Sets,Month

Model

BWZ-B1

 BWZ-F BWZ-F1

Function

Automatic feeding,slotting and bending

 Automatic feeding,slotting and bending

Automatic feeding,slotting and bending

Applicable Material

    Alu=Aluminum

      Flat Alu,Folding Alu,Channelume

         Flat Alu,Folding Alu         Flat Alu,Folding Alu

   Material Width

             Flat Alu:≤160mm

           Folding Alu:≤160mm

        Channelume:70,90,110mm

         Flat Alu:≤150mm

       Folding Alu:≤108mm

          Flat Alu:≤140mm

        Folding Alu:≤140mm

Material   Thickness

 Aluminum:0.3~1.5mm

Aluminum:0.3~1.2mm

Aluminum:0.3~1.0mm

 Bending Radius 7mm 12mm

12mm

 Feeding       φ36mm feeding wheel+Guide material                             auxiliary+Encoder     φ30mm feeding wheel +Encoder

          φ30mm feeding wheel +Encoder

 Slotting System   Motor control

Air cylinder control

Motor control



          Bending

 Coupled extrusion-Double copper shaft flat arc bender Coupled extrusion-general arc bender Coupled extrusion-general arc bender     Control System                          ADT             Leetro CBS4                   ADT          Power                     <1500W               <1500W              <1500W       Air Pressure                       0.6MPa                 0.6MPa                  0.6MPa         File Format                     Dxf, Ai,Plt              Dxf, Ai,Plt             Dxf, Ai,Plt Working Voltage              220V/ 50-60HZ/1P     220V/ 50-60HZ/1P     220V/ 50-60HZ/1P Net Weight(kgs)                          320                  240                    250 Overall Size(mm)(L*W*H)                 2100*800*1530            1350*700*1300          1340*680*1300

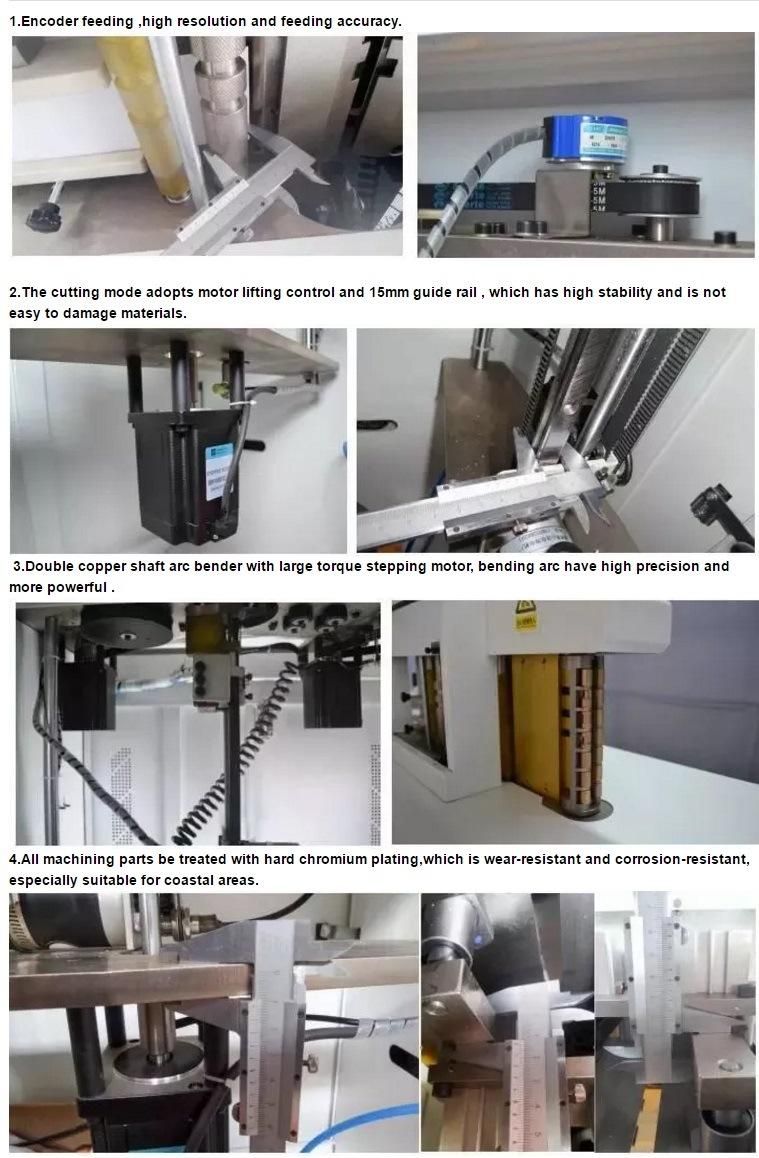

 Main Parts :



 Application Industry

Advertising industry,such as logos,signs,neon signs,billboards,light boxes production,outdoor advertising and other advertising production

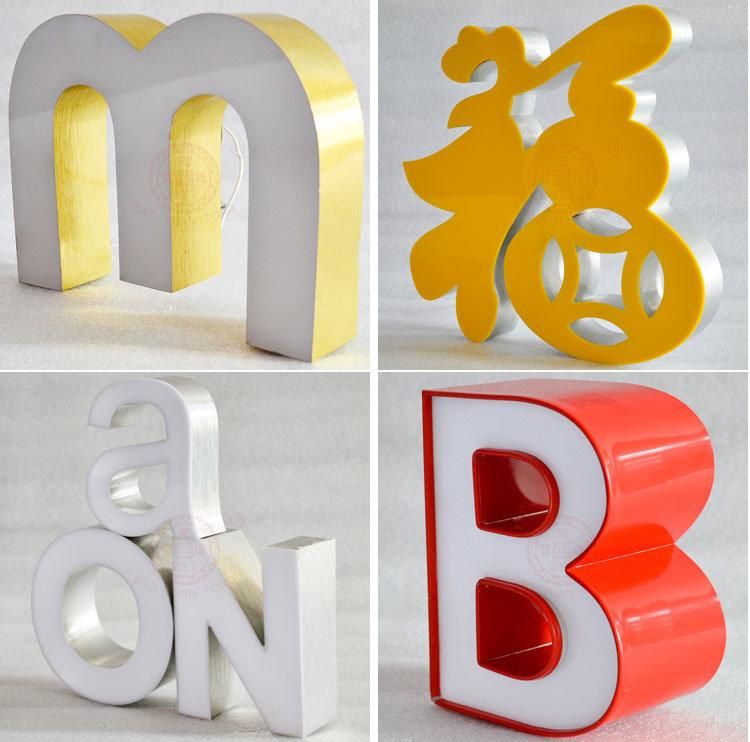

Samples

Our machines can do all jobs, stainless steel letters, aluminum letters.

 Company Profiles



After-Sales Service

1.One year quality guaranty. The machine with main parts(excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.Engineers speaking English12 hours on line serviceeach day, free technical support. We
will solve your problemsimmediately by E-mail, fax, MSN, Skype, or telephone.

6. The English operation manual in electronic edition is included.

7. Machine has been adjusted before delivery.

8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center.



FAQ:

1) This is the first time I use this kind of machine, is it easy to operate?

There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.

2) If machine has any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours


3) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name
or your detailed address. There will be best shipping freight and machine price send to you.

 Contact:

Osar Yu
Shandong Yuantong Century Intelligent Technology Co., Ltd.

Tel.:008615153600298
