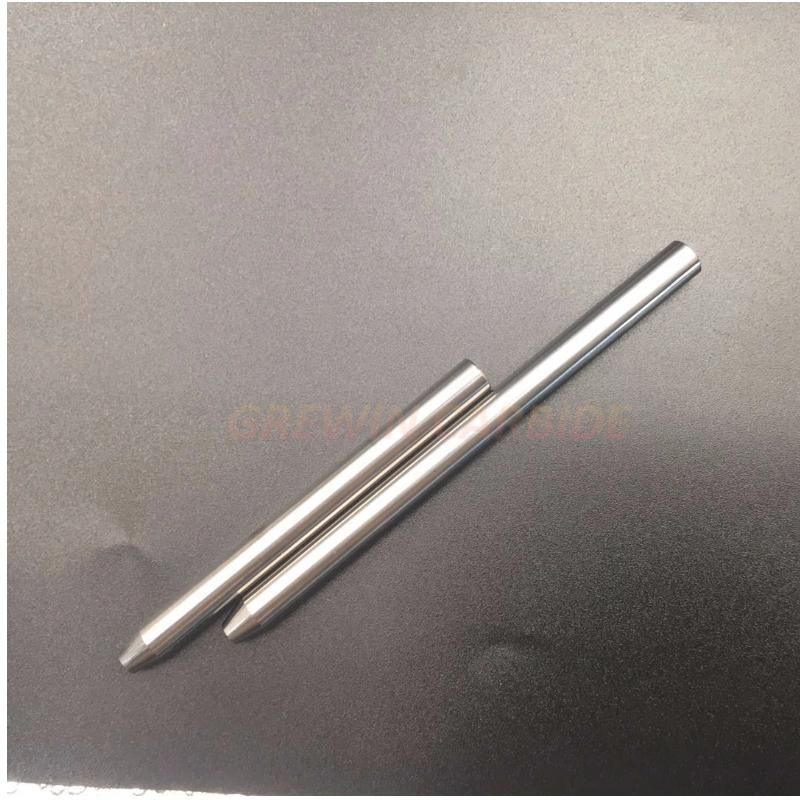

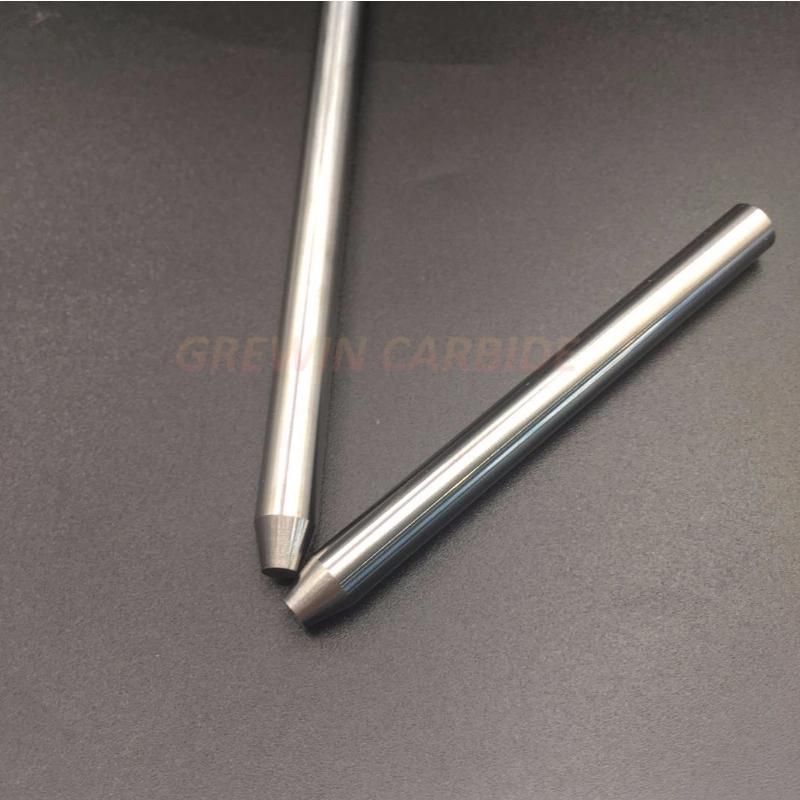

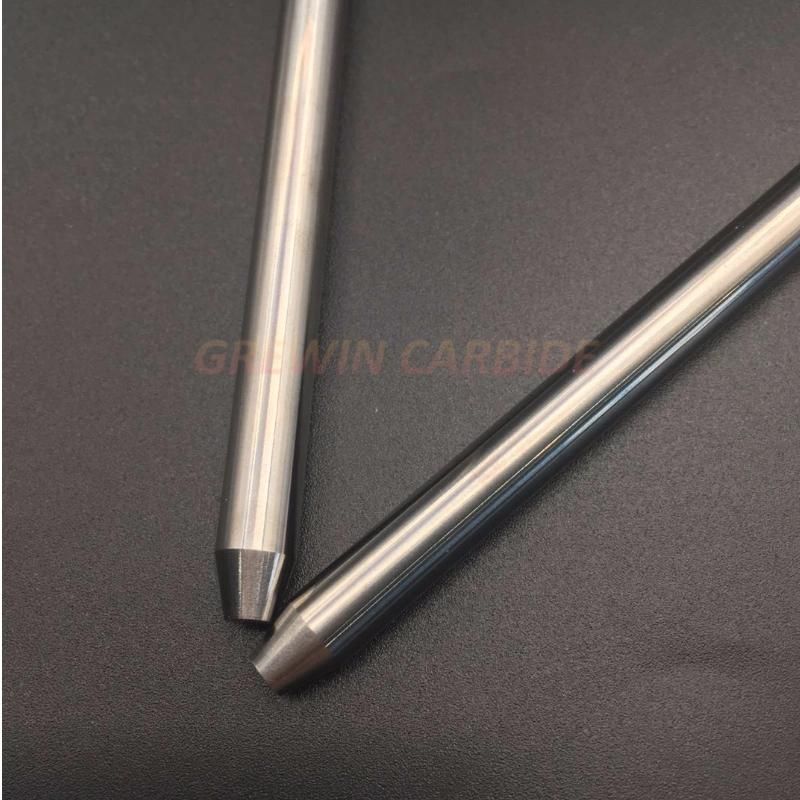

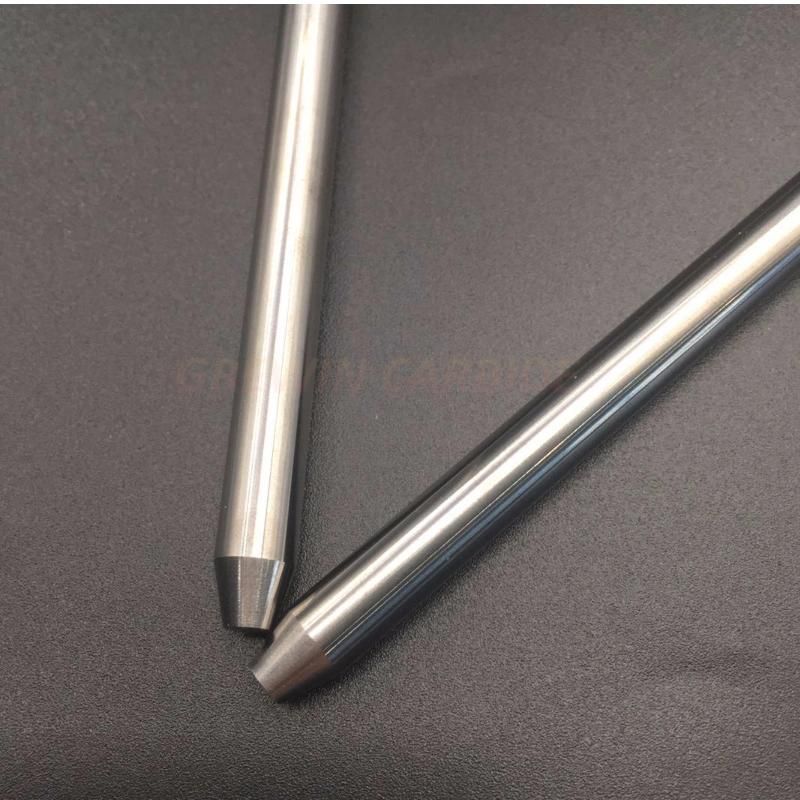

Gw Carbide - Extremely High Hardness of Water Jet Nozzles
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Certification:ISO 9001, SGS
- Condition:New
- Control:Automatic
- Application:Metal, Glass, Stone, Plastic
- Power Source:Hydraulic
- Style:Cantilever
Base Info
- Type:Five-Axis

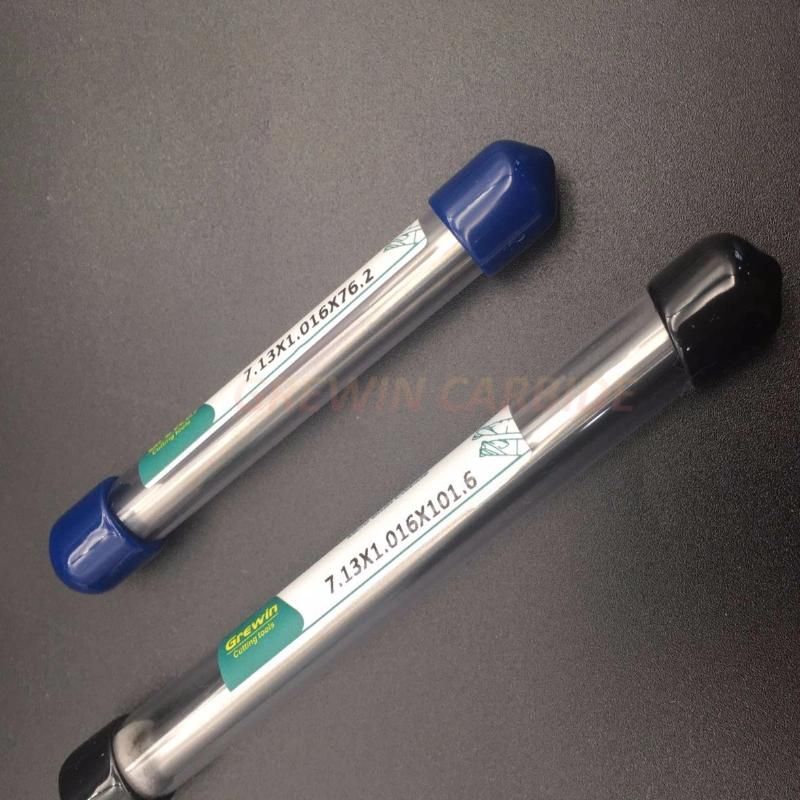

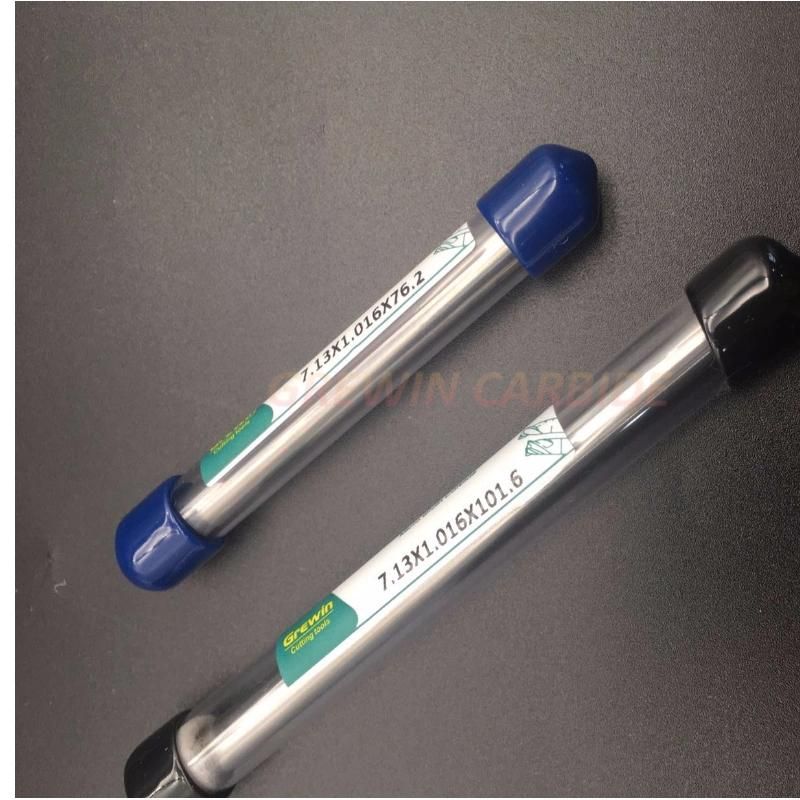

- Size:7.13X1.016X76.2
- Other Size:7.13X1.016X101.6
- Tolerance on Od:+,-0.02mm
- Tolerance on ID:+,-0.015
- Surface:Ground
- Materials:Pure Tungsten with 0.5% Binder

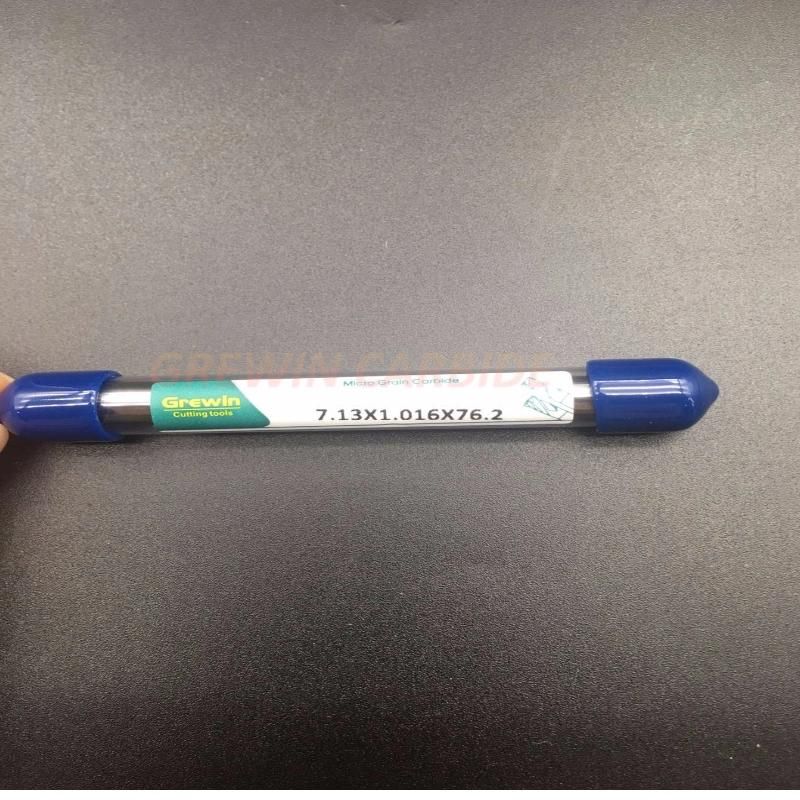

- Specification:7.13X1.016X76.2
- Trademark:No mark
- Origin:China
- HS Code:8207709000
- Production Capacity:50000PCS,Month
Description
Basic Info.
Type Five-Axis Size 7.13X1.016X76.2 Other Size 7.13X1.016X101.6 Tolerance on Od +/-0.02mm Tolerance on ID +/-0.015 Surface Ground Materials Pure Tungsten with 0.5% Binder Specification 7.13X1.016X76.2 Trademark No mark Origin China HS Code 8207709000 Production Capacity 50000PCS/MonthProduct Description
Material: Nano Carbide / ultrafine grain tungsten carbide
Density: 15.7g/cm³
Rockwell hardness: 96HRA
Size: as below and also can cutomize any size
Welcome to contact us to get the sample to test our waterjet nozzles good quality!
Please let us know the clear size including OD,ID & length(mm).
Unique advantage of tungsten carbide water jet nozzles
1. Adopt supermicron grain size, which can result in better wear-reseistance and longer life span.
2. Content of cobalt: 0.5%.
3. Super oxygen-resistant
4. Using HIP sintering which can increase the performance of carbide greatly.
5. Precision Ground and polished
Physic character of tungsten carbide water jet nozzles
1. Long life span: 120-150 HOURS WITH 380 Mpa
2. Garmet: 60-80 mesh
3. Density:15.45g/cm3 -15.60 g/cm3
4. Hardness:2000Mpa-2400Mpa

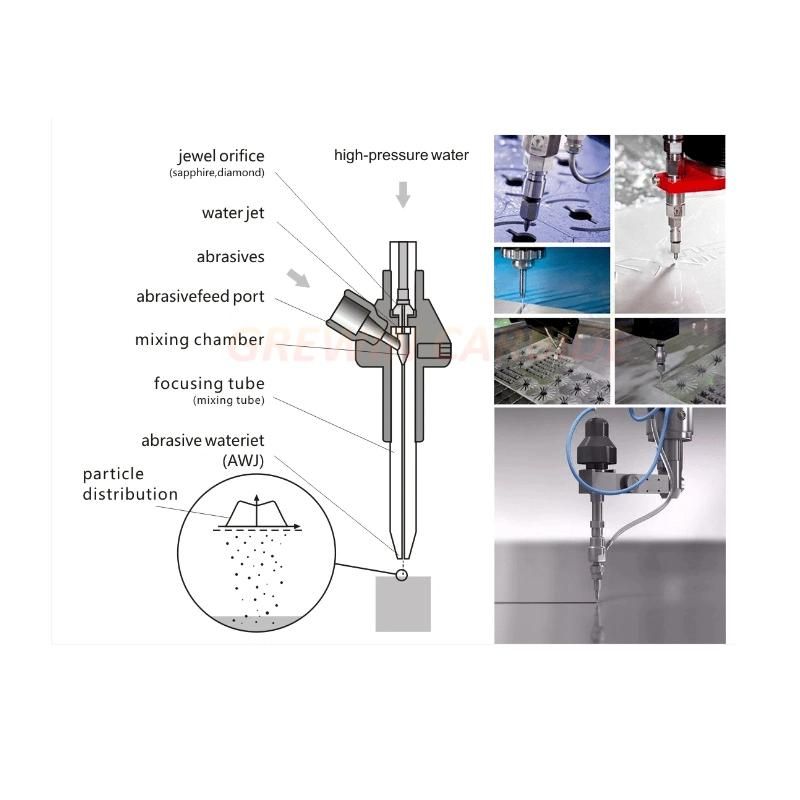

Application of tungsten carbide water jet nozzles
1.For cutting metallic material, is used for architectural decoration, such as stainless steel;To make and cut the crust of machine equipments;To cut all kinds of metallic spare parts.
2.For cutting glass, is used for household electrical appliances,barthroom and architectural decoration, craftwork and automobile.
3.For processing tiles, stones and other building materials,to make very complicated jigsaw and mural;Can art creation of any shapes.
4.Used for composites, bulletproof material, soft material ,pharmaceutical and others With robot arm to cut automotive interior components;To cut foam, sponge, paper, rubber, nylon, carpet, pharmaceutical etc.
