Wc67K Series Mechanical Servo CNC Stainless Steel Hydraulic Bending Machine
Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2008, CE
- Automation：Automatic
- Type：Press Brake
Base Info
- Model NO.：WC67K Series
- Nominal Force(Kn): 400-6000：Worktable Length(mm): 2200-6000
- Application：Machinery & Hardware
- Type for Fold-Bending Machine：Hydraulic Fold-Bend Machine
- Transport Package：Plastic Cover
- Specification：CE STANDARD
- Trademark：ZYMT
- Origin：China
- HS Code：8462219000
- Production Capacity：3000 Sets,Year
Description

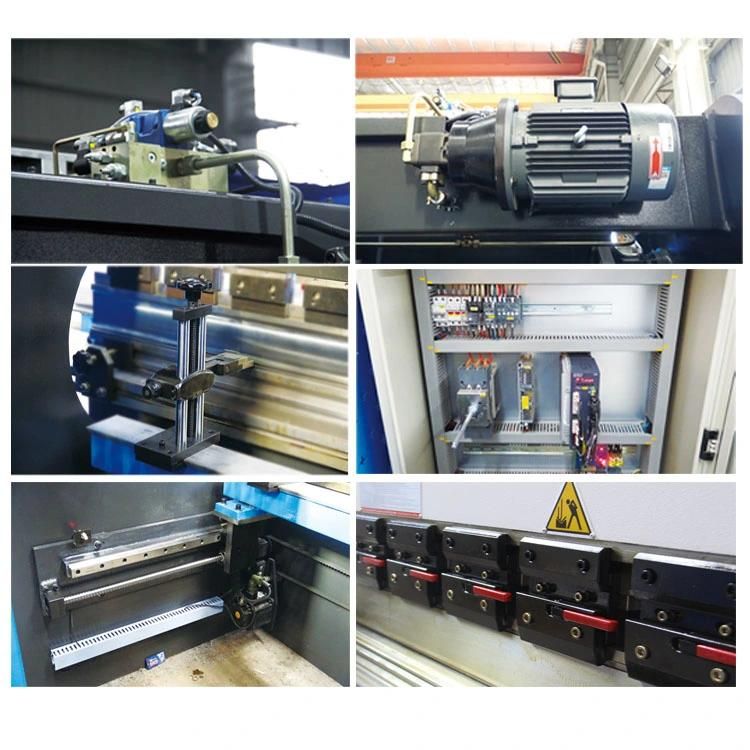

YESFront and back protection fence YES Back gauge with ball screw YES Back gauge travel 500MM Emergency button YES
Other standard equipments:
Segmented upper punch die 1set
Lower die in one piece
Stop fingers 3
Front supporting arms 2
Emergency stop button;
Back, left and right safty fence
Foundation bolts 1set
Manuals and diagram 1book
Parameters:Type Nominal Force
(KN) Worktable Length
(mm) Poles Distance
(mm) Throat Depth
(mm) Slider Travel
(times/min) Max Open
(mm) Power
(kw) 40T/2200 400 2200 1850 230 100 320 5.5 40T/2500 400 2500 1850 230 100 320 5.5 50T/2500 500 2500 1850 230 100 320 5.5 63T/2500 630 2500 1900 250 100 320 5.5 63T/3200 630 3200 2560 250 100 320 5.5 80T/2500 800 2500 1990 300 100 320 7.5 80T/3200 800 3200 2560 320 100 350 7.5 80T/4000 800 4000 3200 320 100 350 7.5 100T/2500 1000 2500 1900 320 120 350 7.5 100T/3200 1000 3200 2600 320 150 400 7.5 100T/4000 1000 4000 3200 320 150 400 7.5 125T/3200 1250 3200 2600 320 150 400 11 125T/4000 1250 4000 3200 320 150 400 11 160T/3200 1600 3200 2580 320 200 460 11 160T/4000 1600 4000 2900 320 200 460 11 160T/5000 1600 5000 3900 320 200 460 11 160T/6000 1600 6000 4900 320 200 460 11 200T/3200 2000 3200 2480 320 200 460 11 200T/4000 2000 4000 2900 320 200 460 11 200T/5000 2000 5000 3900 320 200 460 11 200T/6000 2000 6000 4900 320 200 460 11 250T/3200 2500 3200 2450 400 250 590 18.5 250T/4000 2500 4000 2900 400 250 590 18.5 250T/5000 2500 5000 3900 400 250 590 18.5 250T/6000 2500 6000 4900 400 250 590 18.5 300T/3200 3000 3200 2450 400 250 590 22 300T/4000 3000 4000 2900 400 250 590 22 300T/5000 3000 5000 3900 400 250 590 22 300T/6000 3000 6000 4900 400 250 590 22 400T/3200 4000 3200 2400 400 250 590 30 400T/4000 4000 4000 2900 400 250 590 30 400T/5000 4000 5000 3900 400 250 590 30 400T/6000 4000 6000 4900 400 250 590 30 500T/5000 5000 5000 3900 400 250 590 45 500T/6000 5000 6000 4900 400 320 590 45 600T/5000 6000 5000 2900 400 320 590 55 600T/6000 6000 6000 4900 400 320 590 55
Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.
We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press
Other standard equipments:
Segmented upper punch die 1set
Lower die in one piece
Stop fingers 3
Front supporting arms 2
Emergency stop button;
Back, left and right safty fence
Foundation bolts 1set
Manuals and diagram 1book
Parameters:
(KN)
(mm)
(mm)
(mm)
(times/min)
(mm)
(kw)
Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.
We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press
