• Model NO.：Rail cutter
• Product Name：Internal Combustion Rail Cutting
• Model：K1260 Rail Cutting Machine
• Power：5.8 Kw
• Speed：5100r,Min
• Cutting Wheel：Φ350×4mm
• Cutting Time：43kg,M Rail, 4-6 Times
• Utilization Rate of Grinding Wheel：≤0.35mm
• Machine Quality：29kg (Including Rail Clamping Devi
• Transport Package：Carton Box, Plastic Bagsor as Your Payment
• Specification：CE, SGS
• Trademark：China Coal
• Origin：China
• HS Code：8430610000
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. Rail cutter Product Name Internal Combustion Rail Cutting Model K1260 Rail Cutting Machine Power 5.8 Kw Speed 5100r/Min Cutting Wheel Φ350×4mm Cutting Time 43kg/M Rail, 4-6 Times Utilization Rate of Grinding Wheel ≤0.35mm Machine Quality 29kg (Including Rail Clamping Devi Transport Package Carton Box, Plastic Bagsor as Your Payment Specification CE, SGS Trademark China Coal Origin China HS Code 8430610000 Production Capacity 1000 Sets Per Month

Product Description

Introduction of K1260 Portable Handheld Internal Combustion Rail Cutting Machine

The K1260 internal combustion rail cutting machine is a kind of railway engineering maintenance equipment. It uses imported motive power. It not only cuts the rails with high speed and high quality, but also has low grinding wheel wear. It clamps the rails by the rail clamp to lock the machine.zmwm02

The whole internal combustion rail cutting machine is compact in structure, light in weight, easy to operate, safe and easy to move. It is suitable for railway maintenance, repair of seamless track broken rails, and cutting rails in long rail welding factories. When cutting the rail, it can ensure that the verticality tolerance of the rail cross section is ≤0.2mm, and the smoothness of the rail section also meets the requirements of use.

Introduction of K1260 Portable Handheld Internal Combustion Rail Cutting Machine



Model	K1260
Gasoline engine power	5.8kW (imported Husqvarna K1260 two-stroke gasoline engine)
Speed	5100r/min
Cutting wheel	Φ350×4mm
Cutting time	43kg/m rail, 4-6 times 50kg/m steel rail, 3~5 times 60kg/m rail, 2~4 times
Utilization rate of grinding wheel	φ350×φ 25.4×3.8/4.2
Section accuracy	perpendicularity: ≤0.3~0.4mm Flatness: ≤0.1~0.3mm
b. Plane deviation of bidirectional cutting interface	≤0.35mm
Machine quality	29kg (including rail clamping device)

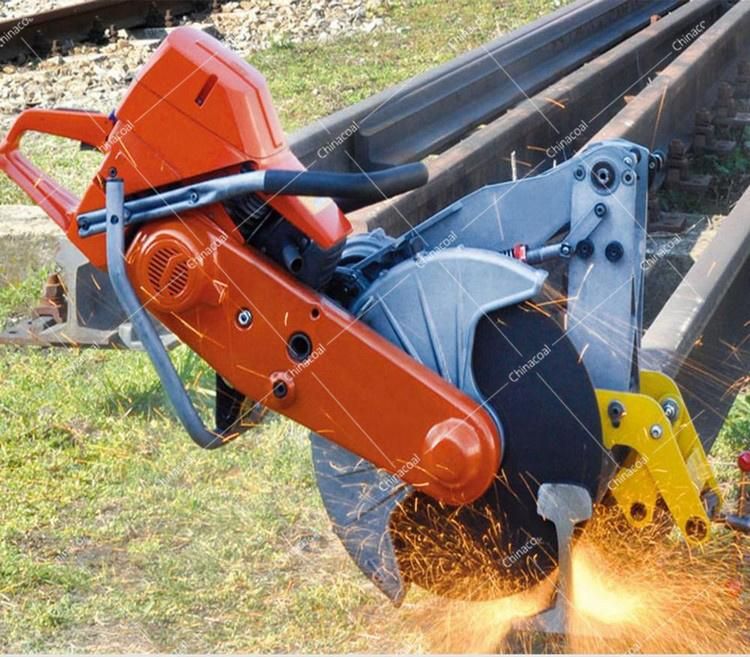

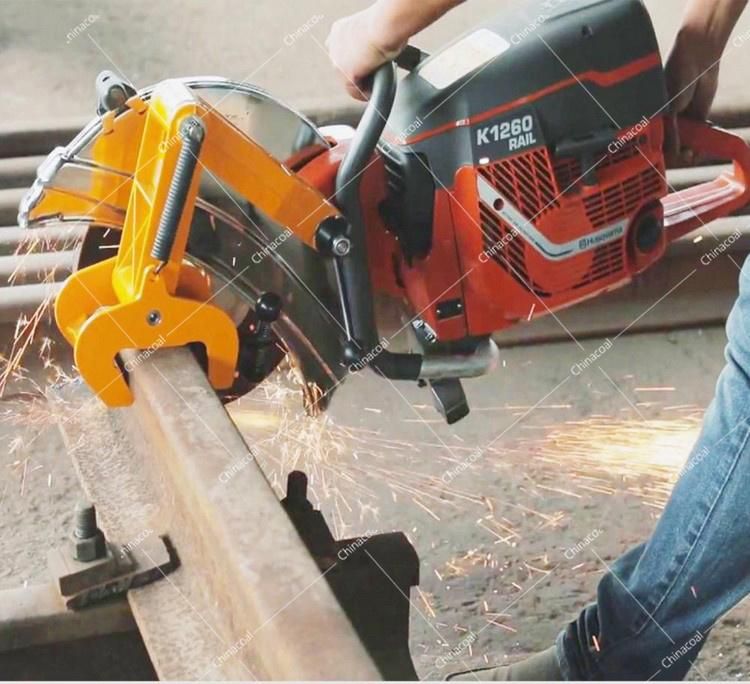

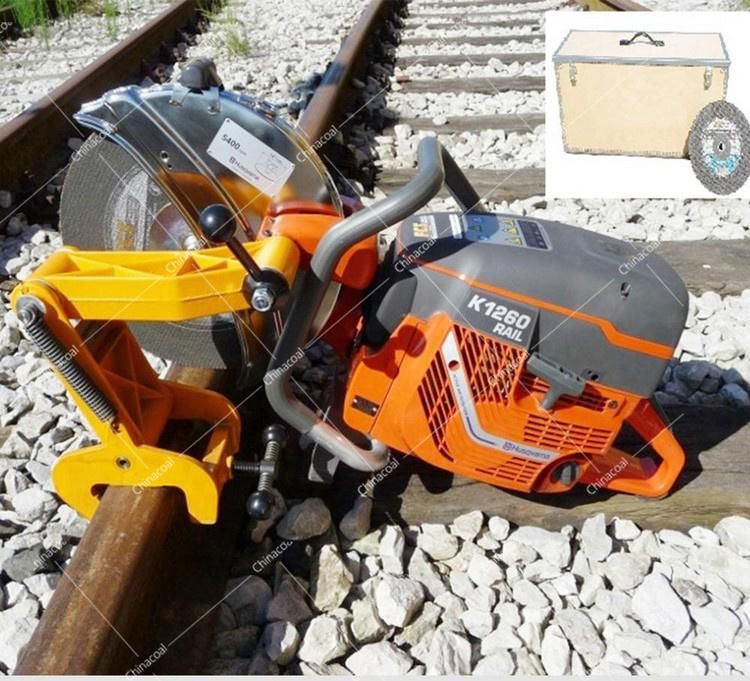

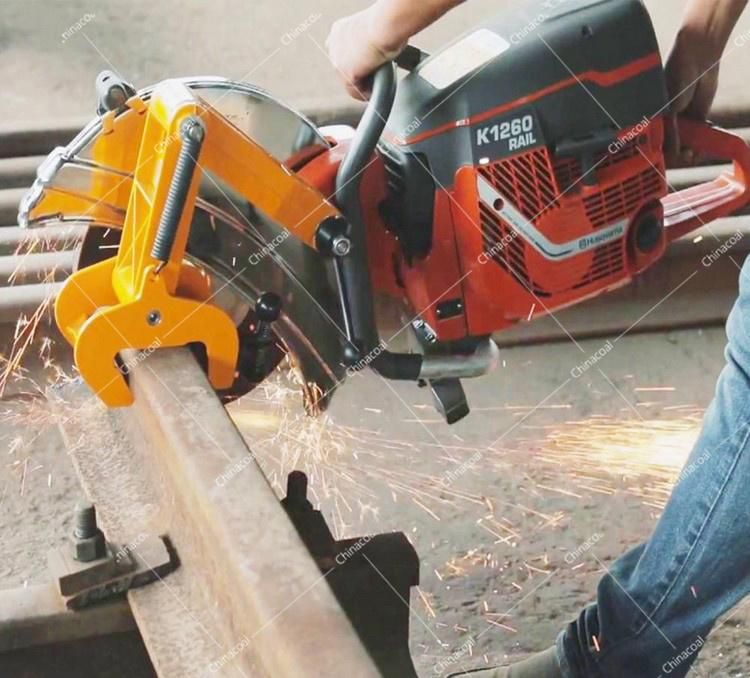

Photos of K1260 Portable Handheld Internal Combustion Rail Cutting Machine
