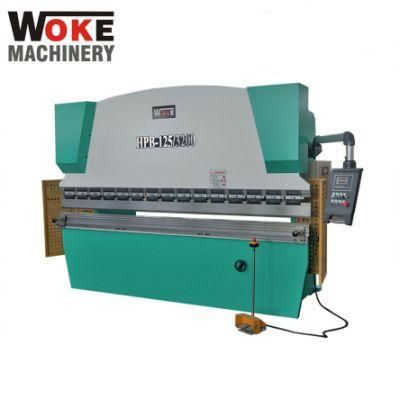

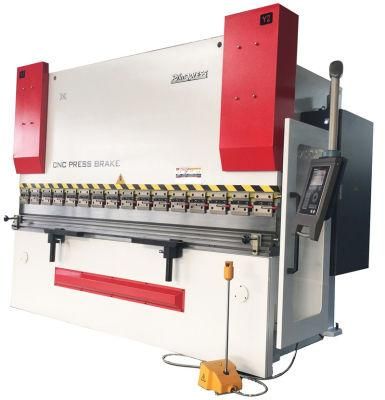

Economic CNC Press Brake Bending Machine Pbz-100t/3200mm
Shanghai Lejia CNC Machine Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：PBZ-100,3200
- Type：Press Brake
- Transport Package：Plastic Cover, Container
- Specification：3500*1580*2400mm
- Trademark：SLJS
- Origin：Shanghai
- HS Code：8462299000
- Production Capacity：3000 Pieces,Year
Description
No.
Item
PBZ-100T/3200
Unit
1
Nominal Force
1000
KN
2
Max Bending Width
3200
mm
3
Stroke Slide
200
mm
4
Max Opening Height
420
mm
5
Distance Between Uprights
2700
mm
6
Throat Depth
400
mm
7
Motor Power
7.5
Kw
8
Axes
3+1 axes (Y1,Y2,X,V)
9
Compensation
Hydraulic Compensation Crowning
10
R-travel
200
mm
11
X-travel
500
mm
12
X-speed
200 mm/s
13
Weight
8800
KG
14
Dimension(L*W*H)
3500*1580*2400
mm
15
Machine
accuracy
Ram Repeat Accuracy
≤±0.01
mm
Ram Positioning Accuracy
≤±0.02
mm
Back gauge Repeat Positioning Accuracy
≤±0.03
mm
Work piece Straightness
0.3
mm/m
Bending Angle Accuracy
±0.5
°
Linear Encoder Resolution Capacity
±0.005
mm
Note:
Y1,Y2----Control ram movement
X----Control back gauge front and rear movement
V----Control Hydraulic Compensation Crowning
Standard Configuration
No.
Part Name
Manufacture Origin
1
Hydraulic System
Germany BOSCH-Rexroth/ HOERBIGER
2
Back gauge Servo Drive and Motors
Nanjing ESTUN
3
Optical Linear scale
Spain FAGOR
4
Main Electrics
SCHNEIDER,France
5
Compensation
Hydraulic Cylinder Compensation
6
Pipe Connection
Germany EMB
7
Sealings
Germany MERKEL,FIETZ/ Japan VALQUA
8
CNC system
DELEM from Holland
9
Linear guide & Ball screw
HIWIN/PMI,Taiwan
10
Quick Punch Clamp
Standard
11
Front Support
Front support moving along linear Guide
Features
Description
Quantity
1
operation manual (mechanical part)
One
2
Operation manual (hydraulic part)
one
3
Operation manual (programming, operation part)
one
4
Electrical drawings
one
5
Hydraulic drawings
one
6
Basic drawings
one
7
Installation and lifting drawings
one
8
Certifications and packing list
one
9
Guarantee card
one
Notice: some of the above files are bound together.
