• Model NO.：Ronen
• Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
• Type：Pipe and Tube Bending Machine
• Product Name：Pipe Bending Machine
• Max. Bending Angle (Deg)：200
• Power Souce：Hydraulic, Electric
• Core Components：Motor, PLC, Engine
• Bending Precision (Deg)：+_0.05
• Power (Kw)：40kw
• Delivery Time：Delivery on Time, Without Delay
• After Sales Service：Provide Solutions Within 24 Hours
• Price：Factory Direct Supply Price
• Function：Tube Bending
• Weight (Kg)：2000
• Raw Material：Tube, Pipe, Profile, Bar
• Color：Blue, White or as You Want
• Bending Tooling：Customized
• Voltage：Customized
• Transport Package：Wooden Case or as You Want
• Specification：Depends on the different model
• Trademark：RONEN
• Origin：Hebei, China
• Production Capacity：60PCS,Year

Basic Info.

Model NO. Ronen Suitable for Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Type Pipe and Tube Bending Machine Product Name Pipe Bending Machine Max. Bending Angle (Deg) 200 Power Souce Hydraulic, Electric Core Components Motor, PLC, Engine Bending Precision (Deg) +_0.05 Power (Kw) 40kw Delivery Time Delivery on Time, Without Delay After Sales Service Provide Solutions Within 24 Hours Price Factory Direct Supply Price Function Tube Bending Weight (Kg) 2000 Raw Material Tube, Pipe, Profile, Bar Color Blue, White or as You Want Bending Tooling Customized Voltage Customized Transport Package Wooden Case or as You Want Specification Depends on the different model Trademark RONEN Origin Hebei, China Production Capacity 60PCS/Year

Product Description

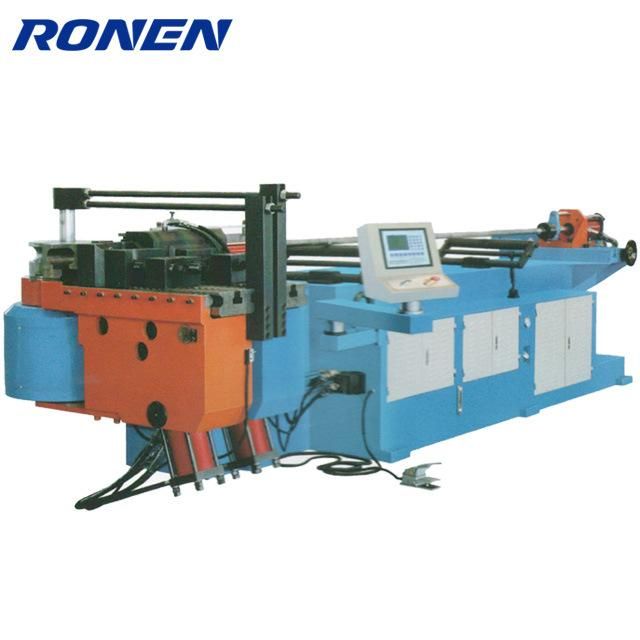

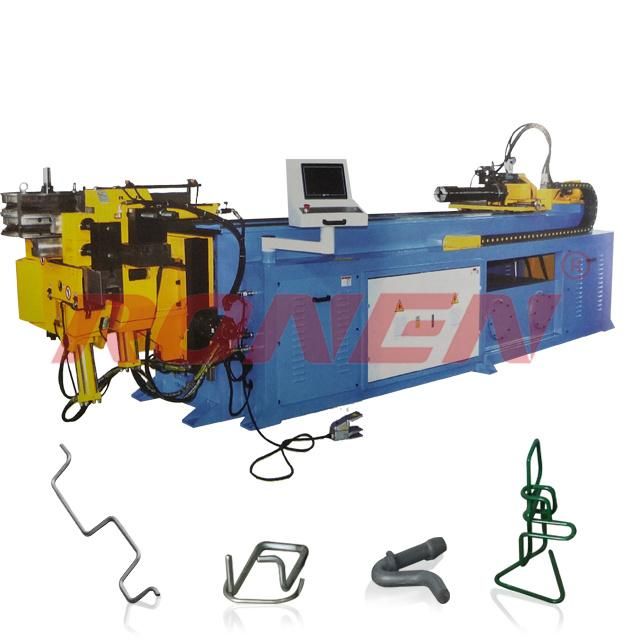

Automatic Exhaust Ship Bending 168CNC Bending Machine Hydraulic CNC Pipe Bending Machine, Tube Pipe Bender

Company Introduction
Pipe Bending Machine Technique Parameter

Model/Type	NC100	NC120	NC130	NC168	NC189	NC219
Taking the biggest bending radius 1.5D  suitable for carbon steel tube materials a example	φ101.6x2.2t φ88.9x2.5t	Φ115x6.0t	Φ125x8.0t	Φ150x8.0t	Φ189x10.0t	Φ219x12.0t
Taking the biggest bending radius 1.5D suitable for stainless steel tube materials as example	Φ101.6x2.2t	Φ101.6x3.0t	Φ101.6x3.0t	Φ125x4.0t	Φ160x5.0t	Φ219x6.0t
Max Effective Distance of Mandrel	3100mm	4250mm	4600mm	5500mm	5500mm	6000mm
Max Bending Radius	300mm	500mm	550mm	600mm	680mm	800mm
Max Bending Angle	185°	185°	185°	185°	185°
The number of bends set in each tube	16	16	16	16	16	16
Maximun Oil Pressure	14mpa	14mpa	14mpa	14mpa	14mpa	14mpa
Motor power	15HP	20HP	30HP	30HP	40HP	40HP
Machine Weight	2500kg	7500kg	8500kg	14000kg	19000kg	25000kg
Machine Size L,W,H (cm)	505x130x125	560x200x 140	560x200x 140	700x210x150	800x210x 150	900x220x 160

Ronen Group is dedicated to manufacturing series of welded pipe roll forming&welding production lines, pipes bending forming lines and various auxiliary forming equipment and shot blasting machine. The company is headquartered in Beijing, and its manufacturing workshop is located in Baoding and Cangzhou. It provides high quality equipment for domestic and foreign pipe and auto parts customers, with rich experiences of serving the industrial field for more than 20 years, RGL becomes a reliable professional pipe equipment supplier and life time partner. RGL does not only provide machines, but also the know-how on specific products making thanks to backup by a consultancy team consists of many top professors-being called "Craftsman", we are confident to guarantee all our customers that our manufacturing level/serving level ranks at the top all over China. We follow up the principle of "ZERO FAULT"on each steps of business with you. Ronen will always be here for you!

Product Description

Equipment Feature

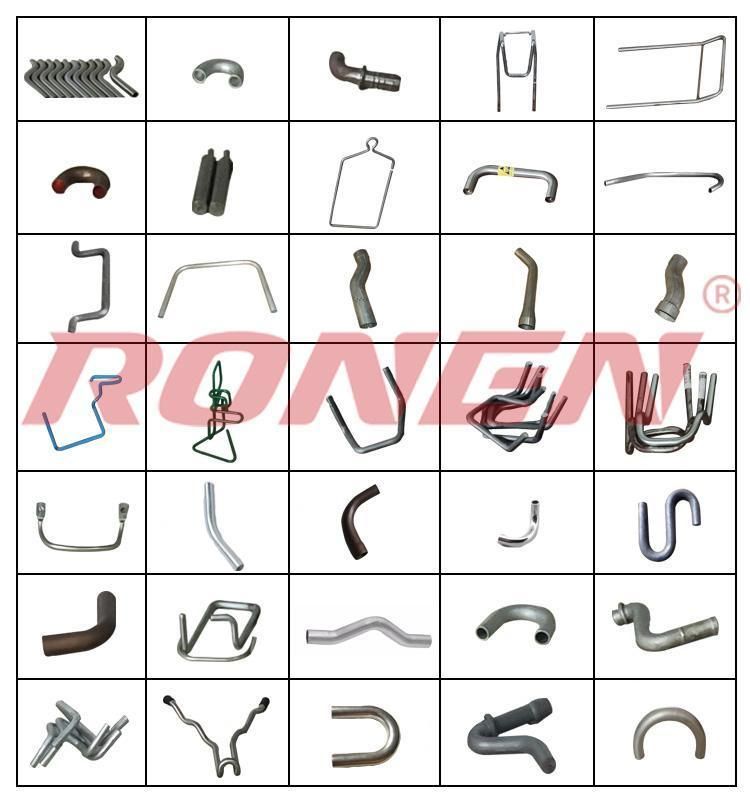

Vehicle Fitings (Brake Hoses, Bumpers, Muflers and Seats). Industries: Motorcycle Making, Fitness  Apparatus, Air Conditioning Retrigeration, Bicycle Industry, Steel Furniture and bathroom equipment.

1. PLC cortroled, quite stabie operation.
2. Multiple functions of manual operation, automation, semi- circulation. full circulation.
3. Setting 16 angles (any of 0 to 185 degrees), selecting one angle or continuously selecting two angles,
4. Mobile type pedal switch having functions of automatic starting, urgent shutdown and instant stop continuing. high safety.
5. Big-volume cooling circulation system, smooth machine operation.
6. Simple and easy change of die, convenient elastic production.
7. Machine head, well designed bending tubes, maximum space for bending tubes.
Ronen Workshop

Ronen Group Exhibition

Certifications

Packing and Shipping

FAQ:

Q: Are you manufacturer?
A:Yes, We are manufacturer.
Q: How to order?
A:Please send us your inquiry by email, send message through Alibaba , Wechat, Whatsapp or others as you want.
Q: What are the payment terms?
A: Pattern :we can accept T/T,Western Union ,Money Gram.
Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.
3.All of the goods, packing details will be send to buyer after finished production. We will arrange shipment and the buyer finished to pay the balance.

Not only the Good Machine, but also the Most Attentive Service
If any doubt,feel free to contact us with no doubt!
RONEN always here for you!!
