• Model NO.：ZX-1625V
• Power Source：Electric
• Layout：Horizontal
• Model：Zx-1625va
• Working Area：1600*2500(W*L) mm
• Rated Power：11kw
• Max. Cutting Speed：1200mm,S
• No-Load Speed：1500mm,S
• Cutting Thickness：0.1-110mm (Depending on The Materials)
• Cutting Accuracy：±0.1mm
• Transmission Interface：Ethernet
• Drive System：Servo Motor, Linear Guide Rail, Rack and Pinion
• Material Fixed Mode：Vacuum Adsorption
• Format Supported：Dxf, Plt, etc
• Operation Property：Online,Offline Operation, Continuous Cutting with
• Safety Device：Infrared Sensing Device, 4 Emergency Stop Buttons,
• Power Supply：AC 110V,220V,380V, 50,60Hz, Single,Three Phase
• Weight：1000kg
• Transport Package：Plywood Case
• Specification：1600*2500
• Trademark：ZHUOXING
• Origin：China
• HS Code：8479899990
• Production Capacity：50set,Month

Basic Info.

Model NO. ZX-1625V Power Source Electric Layout Horizontal Model Zx-1625va Working Area 1600*2500(W*L) mm Rated Power 11kw Max. Cutting Speed 1200mm/S No-Load Speed 1500mm/S Cutting Thickness 0.1-110mm (Depending on The Materials) Cutting Accuracy ±0.1mm Transmission Interface Ethernet Drive System Servo Motor, Linear Guide Rail, Rack and Pinion Material Fixed Mode Vacuum Adsorption Format Supported Dxf, Plt, etc Operation Property Online/Offline Operation, Continuous Cutting with Safety Device Infrared Sensing Device, 4 Emergency Stop Buttons, Power Supply AC 110V/220V/380V, 50/60Hz, Single/Three Phase Weight 1000kg Transport Package Plywood Case Specification 1600*2500 Trademark ZHUOXING Origin China HS Code 8479899990 Production Capacity 50set/Month

Product Description

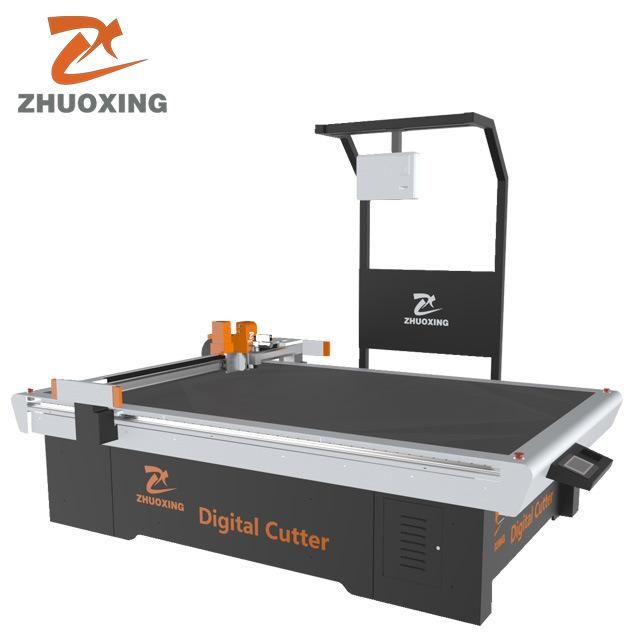

Automatic CNC Shoes And Bags Leather Making Cutting Machine

Product Description

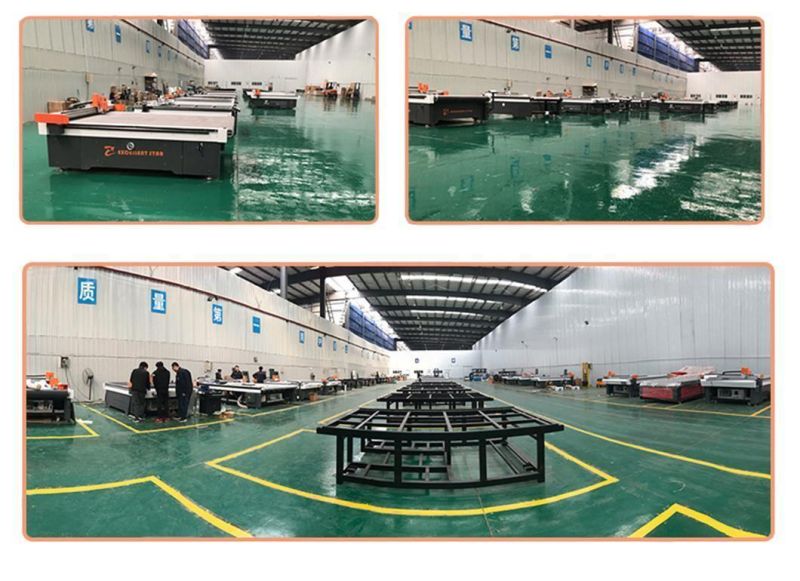

Company Information

Jinan Zhuoxing Intelligent Technology Co.,Ltd.

Jinan Zhuoxing Intelligent Technology Co. Ltd is a high-tech enterprise which is specialized in research and development, production, sales and service of CNC knife cutting equipment and related CAD/CAM software system.

Zhuoxing supply an automated, computerized cutting systems cut with accuracy and repeatability and have been engineered for single, low-ply cutting requirements.

Precision cutting tools offer the utmost flexibility for hundreds of soft and some hard-to-cut material applications in various industries, such as Garment; Shoes & Accessories; Gasket; Packaging; Advertising; Home furnishing; Automotive Interiors; Arts & Crafts; Toys; Sporting goods; Camping & Outdoor gear, etc.

We are and will be powered by innovation and uncompromising quality.

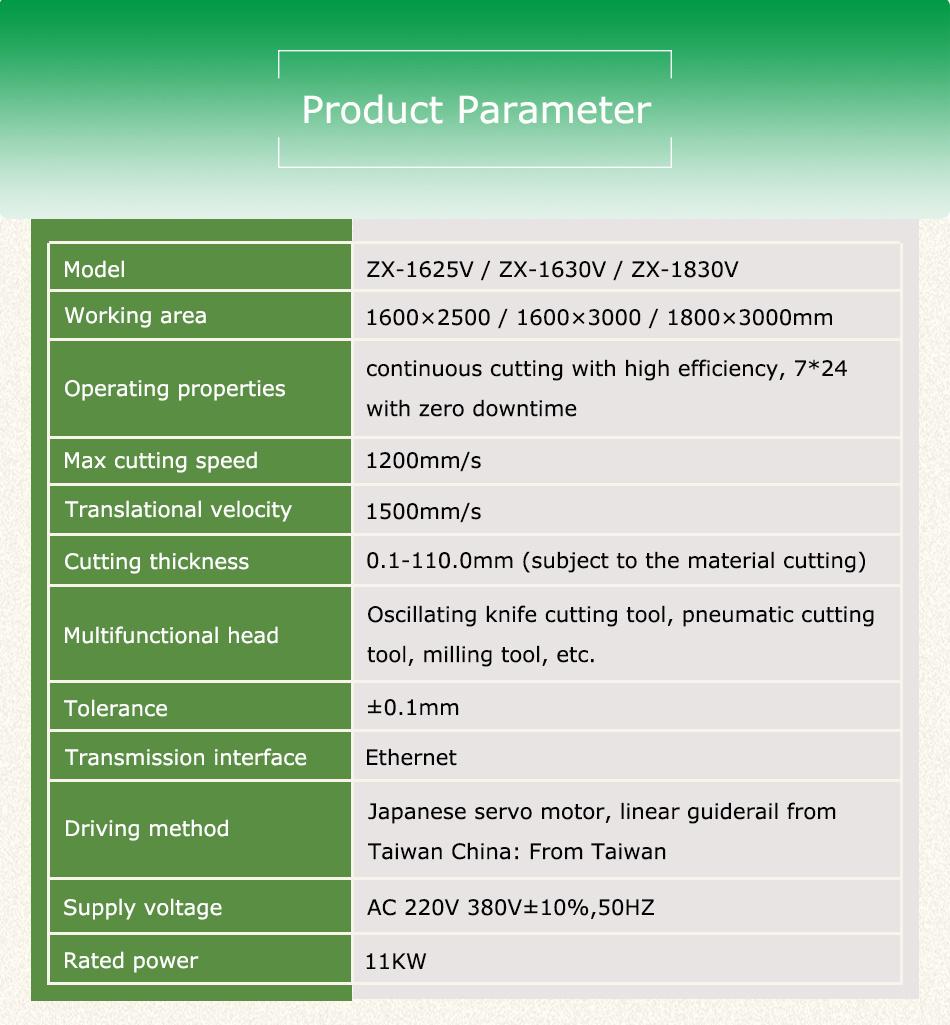

Parameter

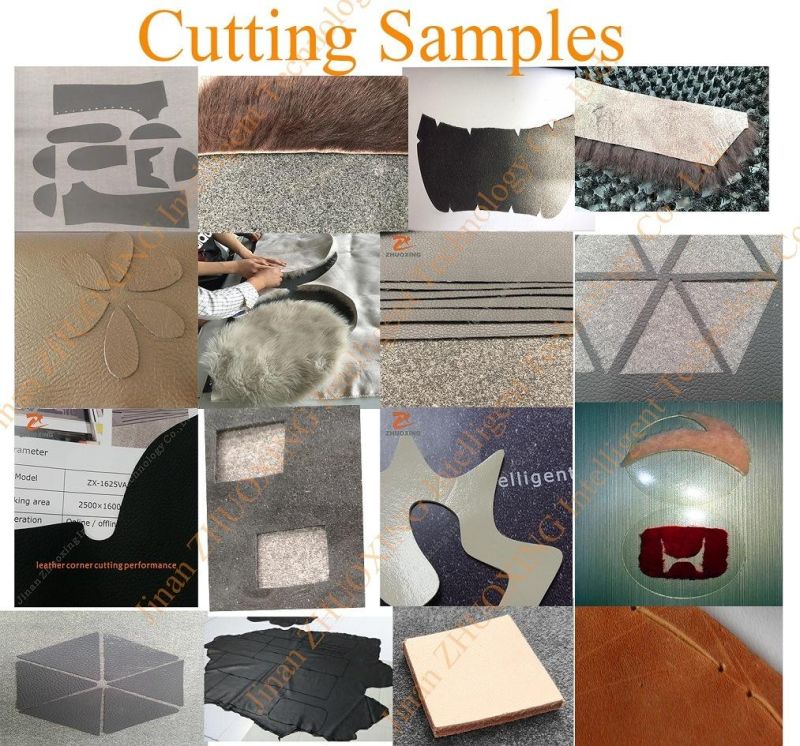

Sample Photos

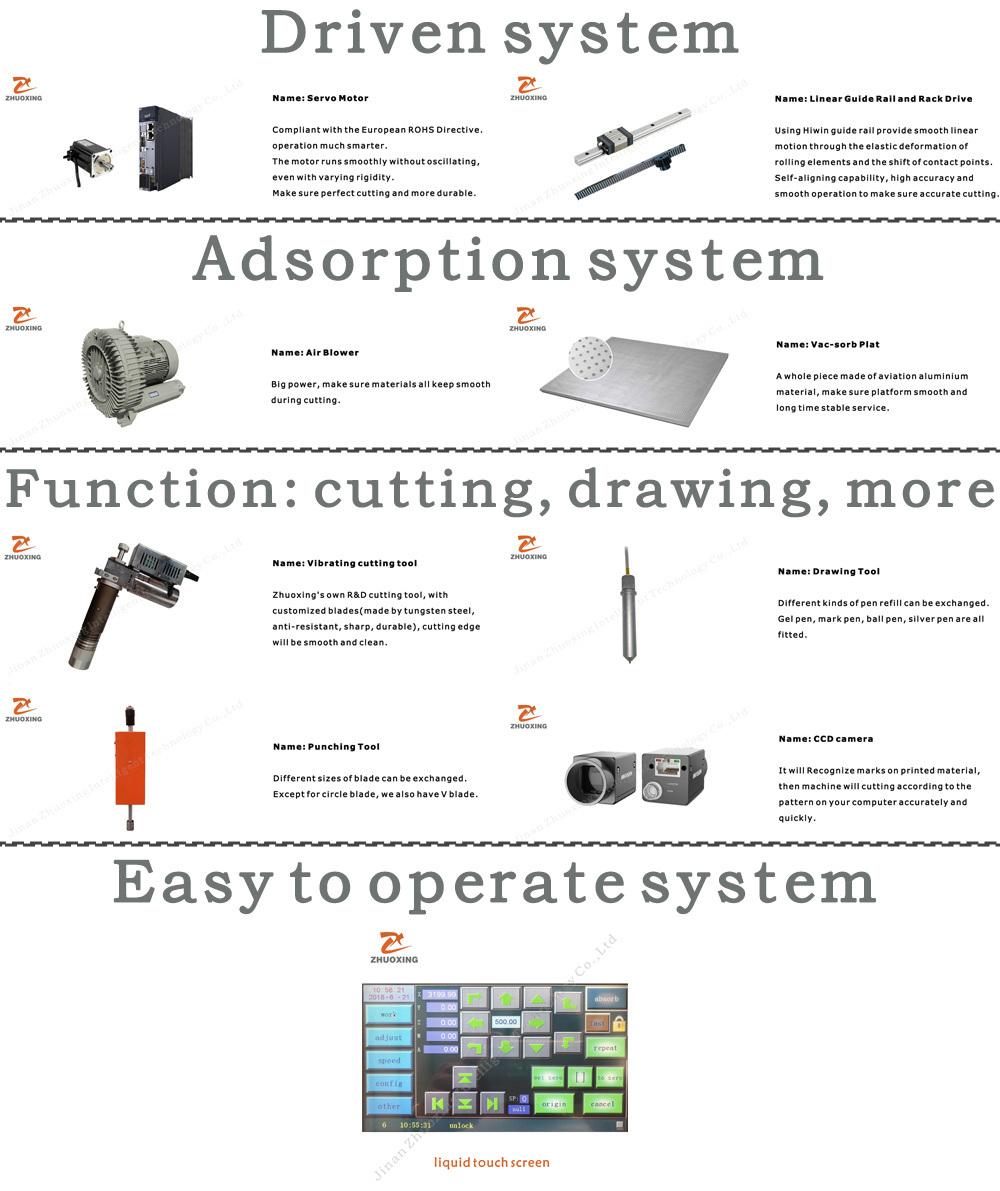

Features
1.Accurate

High requirement and constant emphasis on R&D leads to excellent and high accuracy. Our elaborate cutting machine reaches 0.1mm cutting tolerance.

2.Smooth & clean cutting edge

Even applied to very complex lines, irregular lines and other challenging requirement, our cutting machine can fulfill it well and the similar performance can hardly be done by laser cutting machine, die cutter or manual workers.

3.Diverse

Material -- It can cut nearly all of soft flexible materials and some hard materials.
The Cutting thickness -- 0.1mm to 55mm, even larger, according to the material and your requirement.
Function -- through cutting, kiss cutting, dot cutting, V- cutting,line folding, marking,etc.

4.Exquisite

The cutting machine is able to cut complex patterns with high precision and repeating precision.

Certificate



FAQ
Q1: Are you a factory or trading company?

A: We are a factory and we have lots of know how knowledge.

Q2: Do you accept customized products?

A: Yes.

And our personalized cutting machine is steady and reliable.

Q3: Can you provide OEM/ODM service?

A: Yes.

We have lots of OEM or ODM experience.

Q4: Where is your factory located? How can I get there?

A: Our factory is based in jinan, shandong province, China.

We can pick you up at the air station or train station.

Q5: What's the warranty policy?

A: Standard warranty is 12 month upon delivery.

Q6: Is there any after sales service?

A: We have integrated after sales service.

Besides our own experienced engineers, we also offer local after sales service through the help of our agents.
Service
