• Model NO.：XCLP3
• Origin：China
• HS Code：84532000
• Production Capacity：10PCS,Month

Basic Info.

Model NO. XCLP3 Origin China HS Code 84532000 Production Capacity 10PCS/Month

Product Description

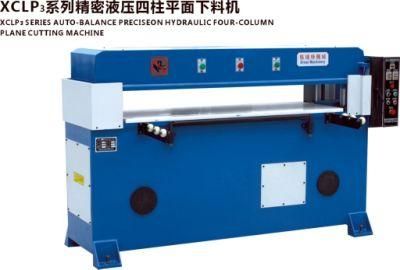

Hydraulic Sponge Cutting Machine

Application: This machine can be used for cutting nealy all nonmetal materials, such as Foam, PVC carpet, PE Foam and so on.



Usage and characteristics:
1. The machine is widely applicable for cutting of nonmetal materials in various industries by die cutter.
2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is same.
3. With special setting mechanism, and equipped with die cutter and cutting depth setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.

Remark: My factory can make the machine according your order, for example, the cutting area, the cutting force, the color, the motor information etc. My factory will supply the cutting board, tools and sapre parts together with the machine.

Maximum cutting force	60Tons
Distance from upper pressing board to worktable	50-200mm
Cutting area	1600× 900mm  /  1400× 900mm
Main motor power	5.5KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Machine weight (approximate)	4200Kg /4000KGg
