• Model NO.：GM-DB-42B
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：CE
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-DB-42B Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification CE Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

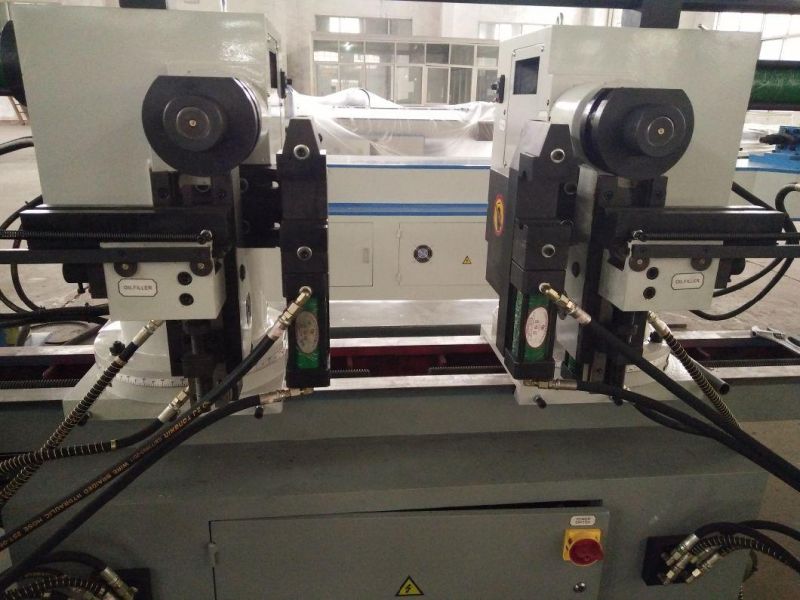

1. Construction of Machine Body by welding, mechanical parts assembly, import hydraulic system, electronic control of imports of fabric to complete.
2. Major performance Using industrial touch screen, in English mode menu is simple, with high precision, fast, multifunctional and high degree of automation
4. Configuration

A) Linear guide way, made in Taiwan
Hydraulic system, have adopted a combination of import items Fuzhou, Taiwan's sole hydraulic motor-source Hydraulic Pump, made in TaiwanHydraulic Valves, made in TaiwanOil way board, made in Taiwan Cylinder, made in Shanghai
Double-layer laminated steel tubing used legitimately imported Taiwan Datong
b) Electronic parts
Touch screen, made in Taiwan
PLC, made in TaiwanOther Electronic, made in Taiwan

Main technical parameters	Unit	GM-DB-42B
Max. bending capacity	Mm	42*2
Bending radius region	Mm	42-250
Max. bending angle	°	185
Bending speed	°/sec	50
Circulation speed	sec/°	5sec/90°
The center region between two bends	mm	170-1450
Clamp journey	mm	50
Motor power	kw	4
Oil flow productivity of the pump	L	17
Max. pressure	MPA	14
The length	mm	2700
The width	mm	900
The height	mm	1800
The weight	T	2.8
