• Model NO.：ZX-1625VA
• Power Source：Electric
• Layout：Horizontal
• Product Name：Zhuoxing Oscillating Knife Cutter Cutting Machine
• Max Cutting Speed：1200mm,S
• No Load Speed：1500mm,S
• Cutting Thickness：0.1-110.00mm
• Cutting Accuracy：+-0.1mm
• Transmission Interface：Ethernet
• Transmission System：Servo Motor
• Material Fixed Mode：Vacuum Absorb
• Consumption：11kw
• Power Supply：AC 110,220,380V
• Format：Dxf,Plt
• Transmission Way：Taiwan PMI Linear Guide
• Safety Device：Emergency Stop Button
• Cutting Extent：Through-Cut
• Optional Configurations：Driven Rotary Cutting Tool, Punching Tool (V-Shape
• Transport Package：Strong Standard Wooden Case
• Specification：3355x2410x1250 mm(L*W*H)
• Trademark：ZhuoXing
• Origin：China
• HS Code：8441100000
• Production Capacity：50sets,Month

ZX-2516VAWorking area 2500×1600 mm(L*W)   (accept customization)Machine size3355x2410x1250 mm(L*W*H)Cutting thickness0.1-25.0 mm (depend on material)Cutting precision0.1mmMax cutting speed1200 mm/s (depend on material)Transmission interfaceEthernetRated power11KWWorking voltageAC 110V 220V 380V±10%, 50HZFixed typeIntelligent vacuum adsorptionDrive systemServo motor, linear guide rail, rack and pinionSafety deviceInfrared sensors, 4 emergency stop buttonsControl panelLiquid crystal displayCutting extentThrough-cutApplicative materialcar mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth etc. Applicable Industry:  Automotive interior, composite materials, seal gasket, sports goods, safa fabric etc.Standard configurationOscillating cutting tool, red light pointing, auto feederOptional configurationsDriven rotary cutting tool, punching tool (V-shape or circle shape), drawing tool, CCD camera, scanner, cradle(auto or normal), package box Operating characteristicWork offline; 24 hours continuous and efficient working
Our samples





Packing & Delivery

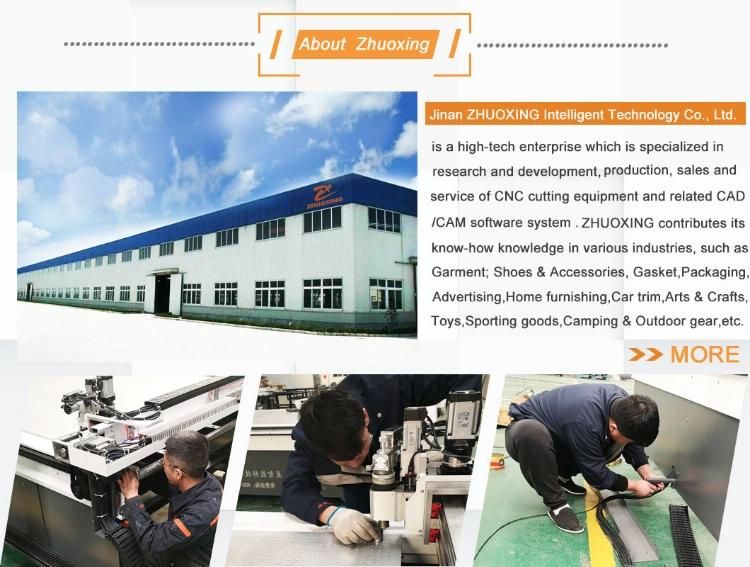

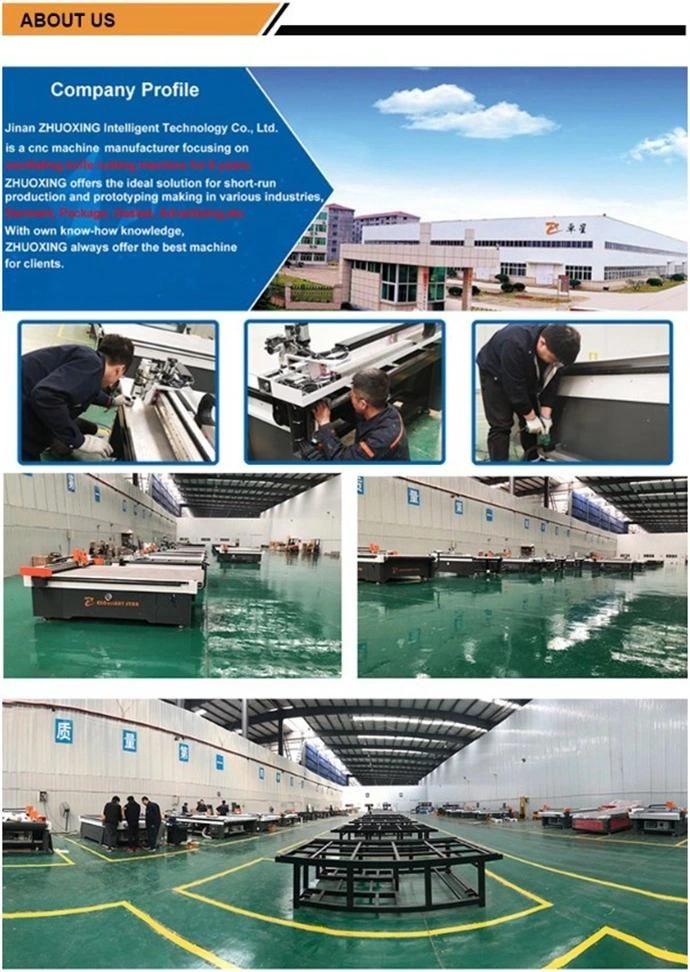

Our Company

Jinan Zhuoxing Intelligent Technology Co.,Ltd.

Jinan Zhuoxing Intelligent Technology Co. Ltd is a high-tech enterprise which is specialized in research and development, production, sales and service of CNC knife cutting equipment and related CAD/CAM software system.

Zhuoxing supply an automated, computerized cutting systems cut with accuracy and repeatability and have been engineered for single, low-ply cutting requirements.

Precision cutting tools offer the utmost flexibility for hundreds of soft and some hard-to-cut material applications in various industries, such as Garment; Shoes & Accessories; Gasket; Packaging; Advertising; Home furnishing; Automotive Interiors; Arts & Crafts; Toys; Sporting goods; Camping & Outdoor gear, etc.

Zhuoxing supply the ideal solution for prototyping, short-run production and full production runs, tackling down challenges of customization and fast delivery.

We have had great success in China, and will be powered by innovation and uncompromising standards in the future.






Certificate


FAQ
Q: 1. How can I choose the suitable car mat cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?

Q: 2. Can you design a car mat cutting machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which can match your request and with best cost performance.

Q: 3. What should I do if the car mat cutting machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, you can contact us.


Q: 4. What's the warranty policy?

Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can guarantee our best service for your machine.


Q: 5. If I don't know this car mat machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
