Cg1-2 H-Beam Flame Cutting Machine

SHANGHAI CHD WELDING & CUTTING EQUIPMENT CO., LTD.
  • Certification：ISO 9001:2015
  • Condition：New
  • Control：Semi-Automatic
  • Application：Metal
  • Connected Shaft Number：2-Shaft
  • Style：Desktop

Base Info

  • Model NO.：CG1-2
  • Type：Gas Cutting
  • OEM：Yes
  • ODM：Yes
  • Magnetic：50kgs+
  • Voltage：AC220V
  • Pipe Diamater：∮108+
  • Cutting Thickness：5-50mm
  • ISO：Yes
  • Transport Package：Carton
  • Specification：L470*W415*H420
  • Trademark：CHD
  • Origin：Shanghai & Wenzhou
  • HS Code：8456909000
  • Production Capacity：2000 Set,Year

Description

1.Main Unit1SET   2.Cutting torch unit1SET 3. Cutting Unit1SET 4.Cutting Torch1)G02:1#,2#,3#1PCS 2)G03:1#,2#,3#1PCS5. Rail1PCS    6. Connector1 SET    7. Cable1SET8. M6 Allen Key1SET9. M8 Allen Key1SET9. Cross screwdriver1PCS10. Needle1PCS   11. Introduction, Quality certificationEACH 1 PCS


5. ASSEMBLY DRAWING

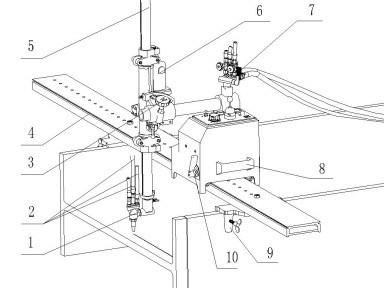

5.1 Exploded View
Cg1-2 H-Beam Flame Cutting Machine
1. Torch
2. Hose
3. Adjusting handle (horizontal)
4. Rail
5. Vertical moving bar for torch
6. Reducer
7. Gas distributor
8. Handle.
9. Rail Clips
10. Clutch Handle


 6. About CHD
Cg1-2 H-Beam Flame Cutting MachineCg1-2 H-Beam Flame Cutting MachineCg1-2 H-Beam Flame Cutting Machine
CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.

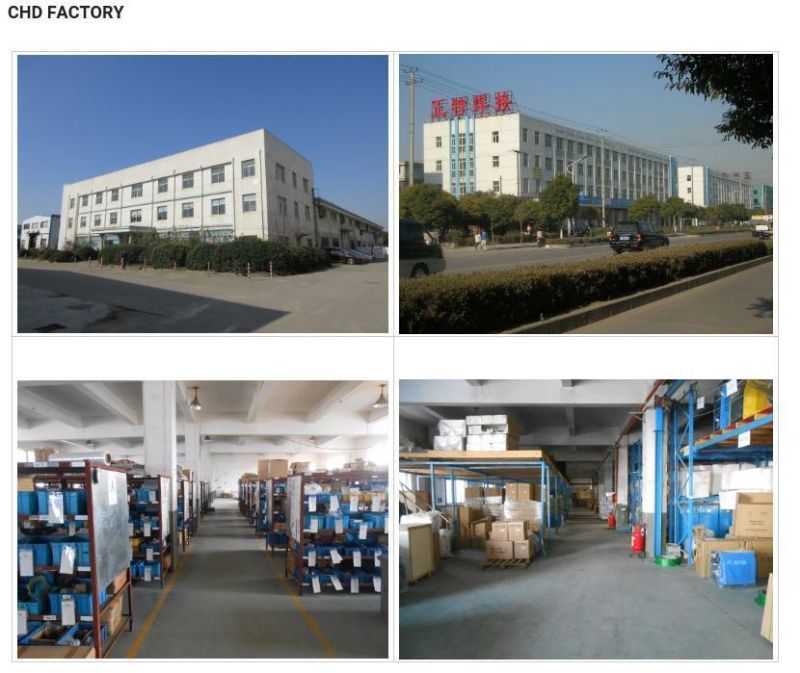

CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53,000 square meters , respectively located in Shanghai, Chengdu and Wenzhou.
CHD focus on quality control, has passed many certification audits including ISO9000, SGS, CE, CCC, etc., was one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.

7. Advantages of CHD

Large Production Capacity. 16 R& D stuff, 120 Workers, 3 Production Bases,Plant of 53000 Square Meters. 10 Production Lines.
Full line of Products. Cutting Machine, Plasma Power, Welding Machine, Beveling Machine, Circular Cooling Water Tanks, Consumables.
Honesty. All parameters (cutting thickness & precision) are actual operation parameters without overstate.
Good after service, not one-off business.
One year guarantee. Free spare parts service on base of order amount. Engineer oversea service.
Adjustable Short Lead Time.


8 FAQ
     1. Q: Certificate
         A: ISO,SGS, CCC
     2. Q:Cutting material?
         A: All kind of sheet metal
     3. Q:Lead Time, Delivery Time
         A: 7 working days
     4. Q:Warranty
         A: 1 Year
     5. Q: After service
         A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service
     6. Q:Portable or not?
         A: Yes
     7. Q: Precision
         A: ±0.5mm
