Automatic Glb Hydraulic Sheet Metal Bending Machines
Dongguan Glory Star Laser Technology Co., Ltd.- Warranty：10000+30000 Hours
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE, Sheet Metal Processing
- Automation：Automatic
- Suitable for：Copper, Aluminum, Carbon Steel, Stainless Steel, All Metal
- Type：Hydraulic Bending Machine
Base Info
- Model NO.：GLB
- Repeat Accuracies：+,-0.01mm
- Parallelism Accuracies：+,-0.01mm
- Premium Backgauge：R, Z1-Z2, X′axes
- Supreme Backgauge：6 Axes X1,X2, R1,R2, Z1,Z2
- Transport Package：Packed in Piaywood
- Specification：metal
- Trademark：GLORY STAR
- Origin：China
- HS Code：84561000
- Production Capacity：3500 PCS,Year
Description
Basic Info.
Model NO. GLB Repeat Accuracies +/-0.01mm Parallelism Accuracies +/-0.01mm Premium Backgauge R, Z1-Z2, X′axes Supreme Backgauge 6 Axes X1/X2, R1/R2, Z1/Z2 Transport Package Packed in Piaywood Specification metal Trademark GLORY STAR Origin China HS Code 84561000 Production Capacity 3500 PCS/YearProduct Description

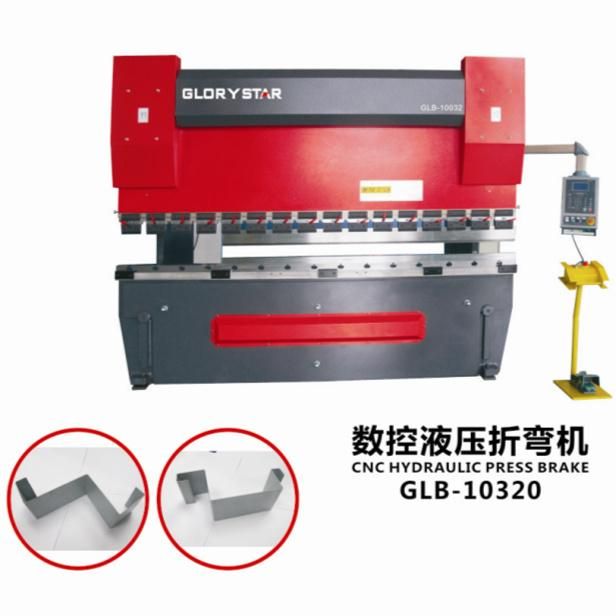

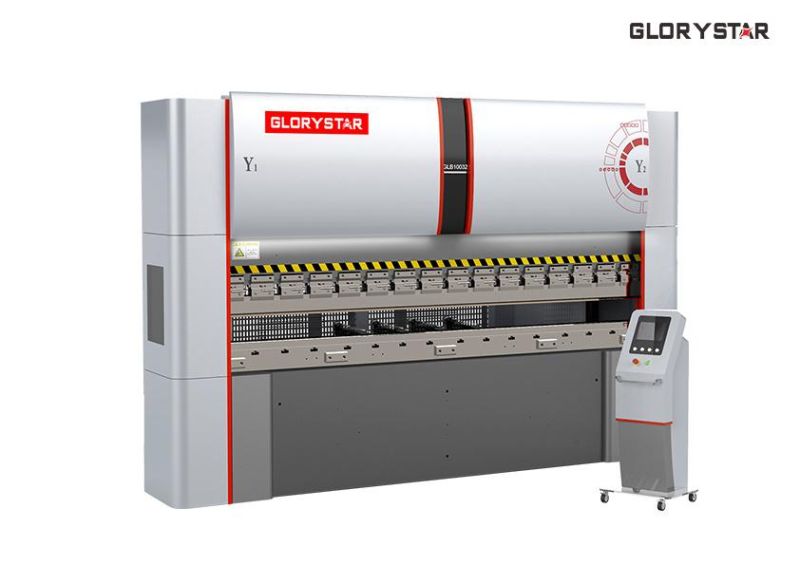

Automatic GLB Hydraulic Sheet Metal Bending Machines
>>> Features
1) Machine frame is heaviest welded con struction,stess released by annealing process,this has minimized deflection of the frame.
2) Y Axis full closed loop control
3) Proportional hydraulic compensation system to prevent deformation
4) German HEIDENHAIN linear encoder
5) Taiwan HIWIN ball screw and linear guide rail ,high performance AC Japanese Yaskawa AC servo motors and drives
6) Rich functions CYBELEC/DELEM professional control system
7) Electro-hydraulic servo synchronization module and Greman BOSCH pressure module
8) +/-0.01mm repeat accuracies
9) +/-0.01mm parallelism accuracies
>>> Optional Accessorie
1) Premium Backgauge-R,Z1-Z2,X' Axes as Options
2) Supreme Backgauge 6 axes X1/X2, R1/R2, Z1/Z2
3) Light Curtains or Laser safe
4) Laser check bend angle measuring device

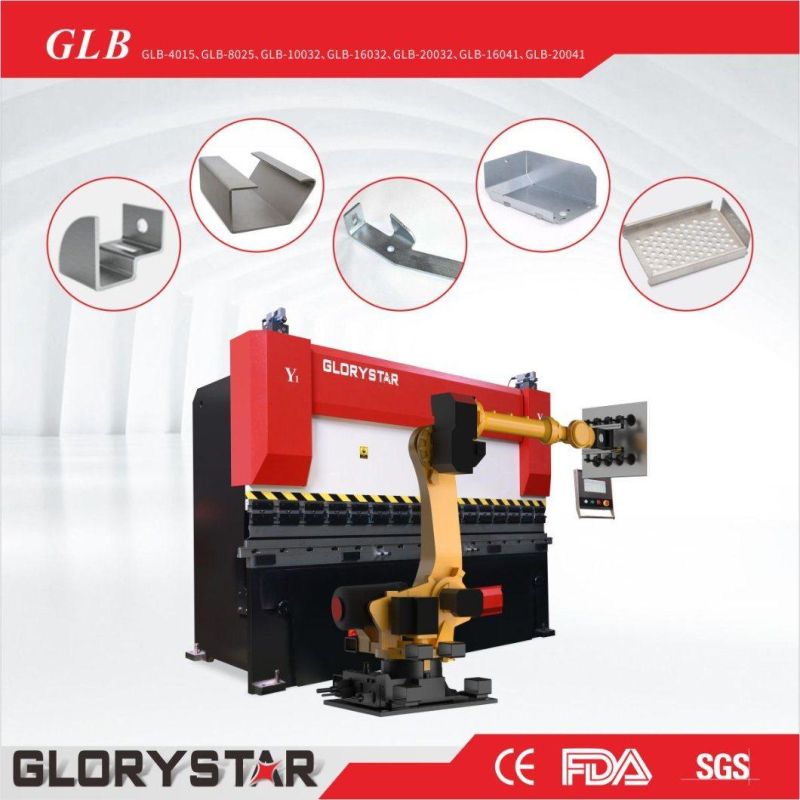

5) Robotic Bending
