S8-II Heavy Duty Pipe Beveling Machine

Watt Machinery Technology Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Certification：CE
  • Condition：New
  • Control：Automatic
  • Application：Metal

Base Info

  • Power Source：Electric
  • Layout：Portable
  • Transport Package：Wooden Case
  • Trademark：watt
  • Origin：China
  • HS Code：846190900
  • Production Capacity：500

Description

Model

 Working range
     (mm)

             Wall thickness
     (mm)

Rated power
       ( kw)

Rotating Speed
     (rpm)

electricPneumaticS8-IIQS8-II

Ф80-240

≤75

1.43

16

S12-IIQS12-II

Ф150-330

≤75

1.43

14

S24-IIQS24-II

Ф300-600

≤ 75

1.43

10

S32-IIQS32-II

Ф600-820

≤ 75

2.0

7


Technical Parameters:
Pneumatic: Pneumatic motor drive, air pressure 0.8 ~ 1.0Mpa, air consumption 1500 ~ 3500L / min;
electric: Overtone motor drive, power 110V or 220V optional, power: 1.7-2.2KW, frequency: 50 ~ 60Hz;

TOOLING
     S8-II Heavy Duty Pipe Beveling Machine

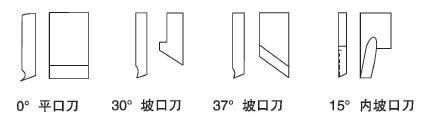

 other beveling shape, angle and pipe material, please declare before order

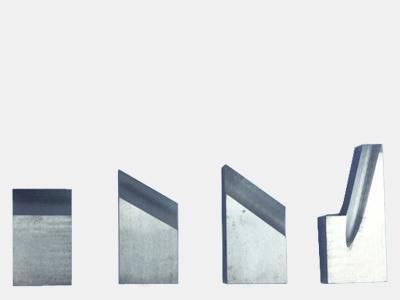

Integrated tool
 can be reused by grinding
 Material:M42 and M35
 Standard supply

S8-II Heavy Duty Pipe Beveling Machine

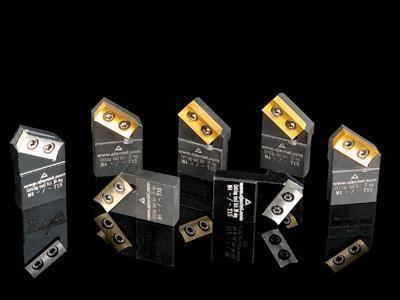

Insert tool
 Insert same, different angle holder
 HolderMaterial: HSS ;
 Insert material: Cermet or Carbide
 Optional
S8-II Heavy Duty Pipe Beveling Machine
