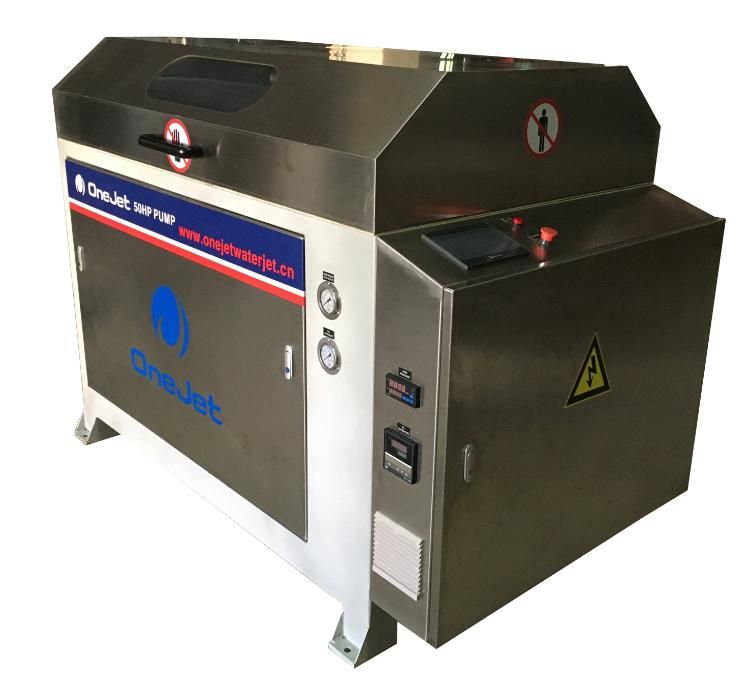

Waterjet Cutting Machine with Intensifier Pump for Marble, Granite, Slab, Ceramic, Metal Sheet Cutting

ONEJET WATERJET CO.,LTD
  • After-sales Service：7X24h
  • Warranty：One Year
  • Certification：CE
  • Condition：New
  • Control：CNC
  • Application：Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather, Fabric, Alloy

Base Info

  • Model NO.：ONEJET50-G30*15
  • Power Source：Electric
  • Style：Gantry
  • Type：Three-Axis
  • Maxi Bearing Pressure：420MPa,60000psi
  • Working Range：3000X1500mm
  • Main Motor：Siemens
  • PLC：Siemens
  • Servos：Yaskawa
  • Soft Starter：Siemens
  • Pressure Adjustable：0-380MPa
  • Guid Linear and Ball Screw：Hiwin&Tbi
  • Cutting Accuracy：0.1mm
  • Power：380,415
  • Transport Package：Pep Inside and Thin Film Outside, Fixed in Contain
  • Specification：3000X1500mm
  • Trademark：ONEJET
  • Origin：Guangdong, China
  • HS Code：8456500000
  • Production Capacity：5 Sets Per Month

Description

Overview Product Description

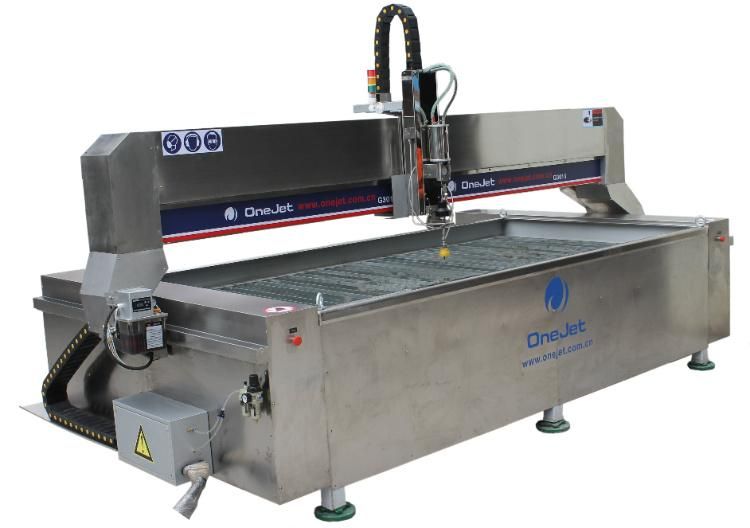

ONEJET50-G30*15 Waterjet cutting machine
Detailed Photos

Waterjet Cutting Machine with Intensifier Pump for Marble, Granite, Slab, Ceramic, Metal Sheet CuttingWaterjet Cutting Machine with Intensifier Pump for Marble, Granite, Slab, Ceramic, Metal Sheet CuttingWaterjet Cutting Machine with Intensifier Pump for Marble, Granite, Slab, Ceramic, Metal Sheet Cutting

Product ParametersPackaging & Shipping

Waterjet Cutting Machine with Intensifier Pump for Marble, Granite, Slab, Ceramic, Metal Sheet Cutting

Company Profile

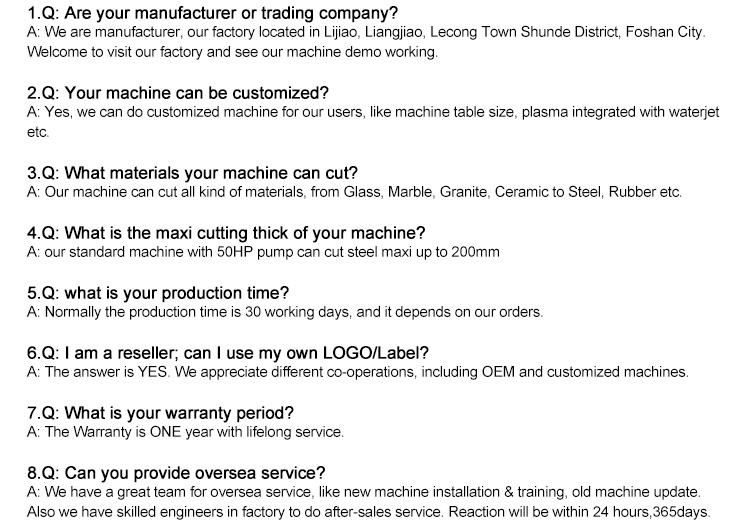

Our AdvantagesFAQ

Waterjet Cutting Machine with Intensifier Pump for Marble, Granite, Slab, Ceramic, Metal Sheet Cutting


Table and ControlerModelG20*15G25*15G30*15G30*20G40*20G20*60G25*60Working RangeX2000mm2500mm3000mm3000mm4000mm2000mm2500mmY1500mm1500mm1500mm2000mm2000mm6000mm6000mmCutting Acuracy±0.10mmRepositioning Acuracy±0.03mmLubricationAuto lubrication systemDriver motorsPanasonic/Yaskawa/WISEMaxi travel speedX,Y 9600mm/min; Z 5000mm/minCutting headThree axis headAC headNOSyetemNcstudio based on Windows 7ProgrammNcEditor, AutoCADCapacity filesDXF,G codes,nce,nc etcCovers and protectionsAll stainless steel covers with water & dust proof designControl hardwareIntel Core dual;RAM 4GB; HD 500G; 19inch screen;wireless keyboard and mouse; two USBOptionalsESA SYSTEM/ECS SYSTEM/LANTEK
