Manual Sheet Metal Bending Machine Pbb1020/2.5 Pbb1270/2 Manual Folding Machine
TENGZHOU MILLART MACHINE TOOL CO., LTD.- After-sales Service:If Any Parts Are Broken, We Will Send You for Free
- Warranty:1-year
- Condition:New
- Certification:RoHS, ISO 9001:2000, CE
- Automation:Manual
- Type:Press Brake
Base Info
- Model NO.:PBB1020,2.5 PBB1270,2
- Angle:0-135
- Application:Machinery & Hardware
- Type for Fold-Bending Machine:Manual Fold-Bend Machine
- Transport Package:Wood Case
- Specification:CE ISO900 rohs
- Trademark:L&T
- Origin:Tengzhou China
- HS Code:8451500000
- Production Capacity:100 PC,Month
Description
Basic Info.
Model NO. PBB1020/2.5 PBB1270/2 Angle 0-135 Application Machinery & Hardware Type for Fold-Bending Machine Manual Fold-Bend Machine Transport Package Wood Case Specification CE ISO900 rohs Trademark L&T Origin Tengzhou China HS Code 8451500000 Production Capacity 100 PC/MonthProduct Description

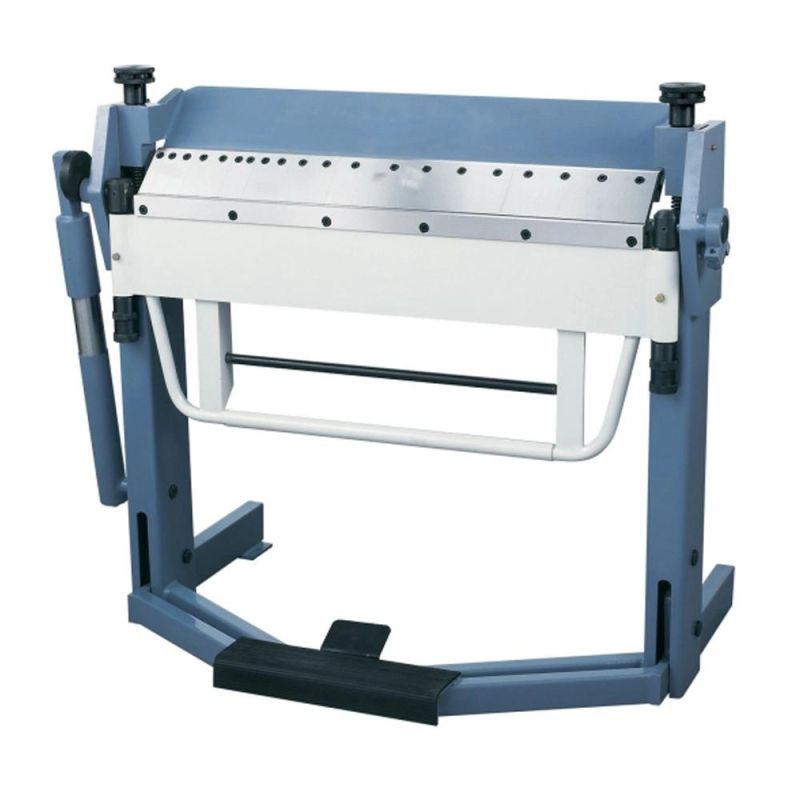

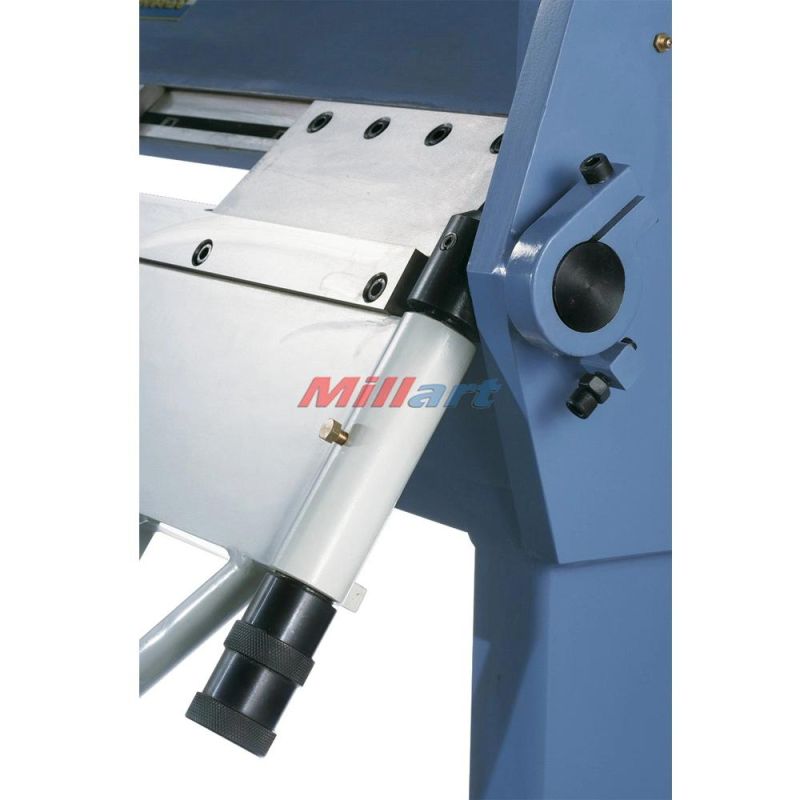

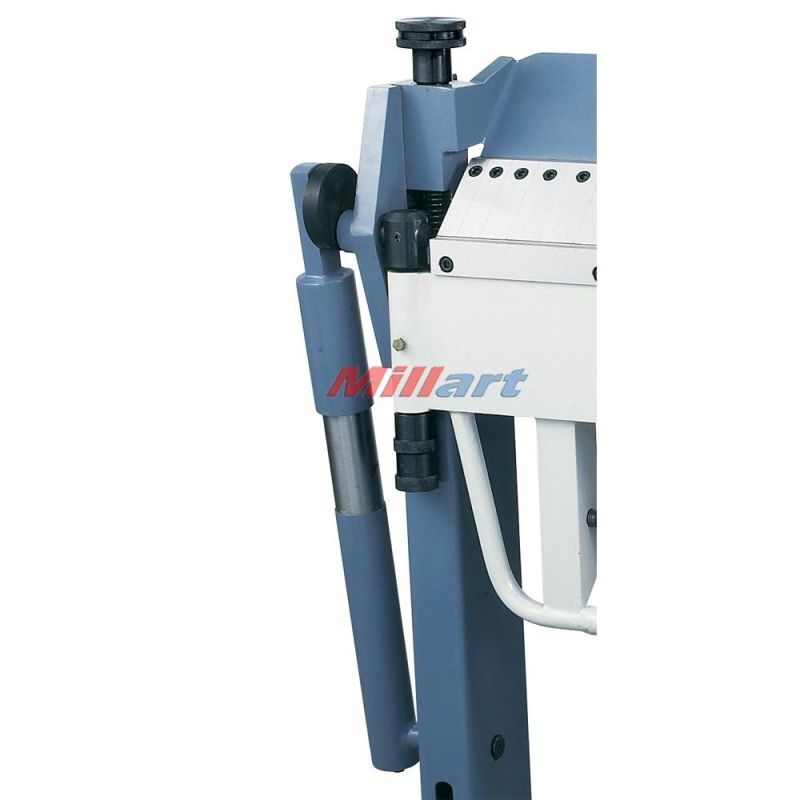

Manual Sheet Metal Bending Machine PBB1020/2.5 Manual Folding Machine Features:1. They have the function of air spring which can be installed inside the arm (optional)2. With foot control, It is easy for operation and relax hands.
3. Our precision folding machine PBB serials features a pedal structure. We have applied for patent protection at home.

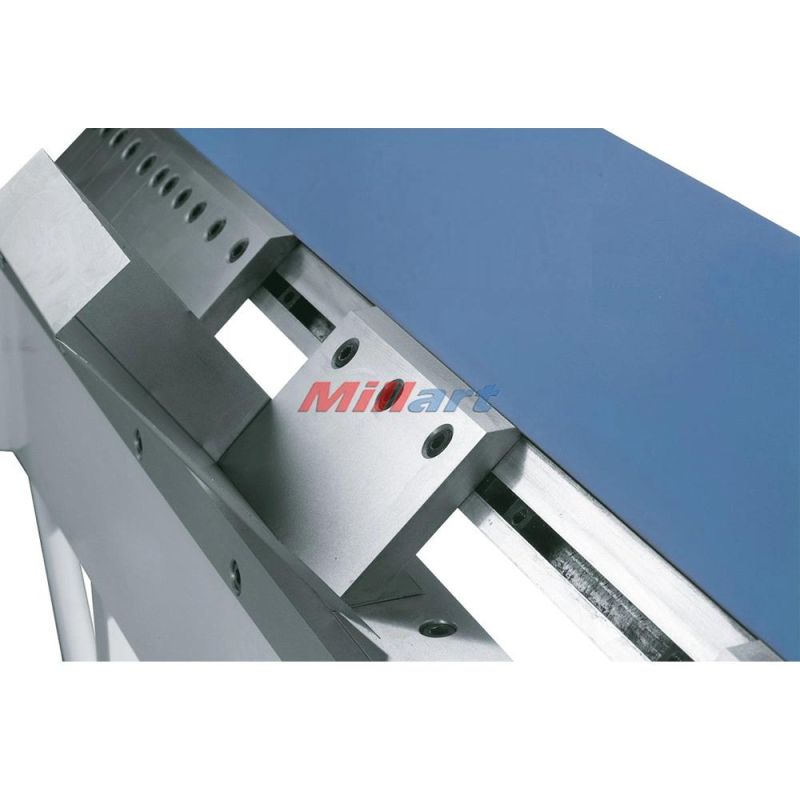

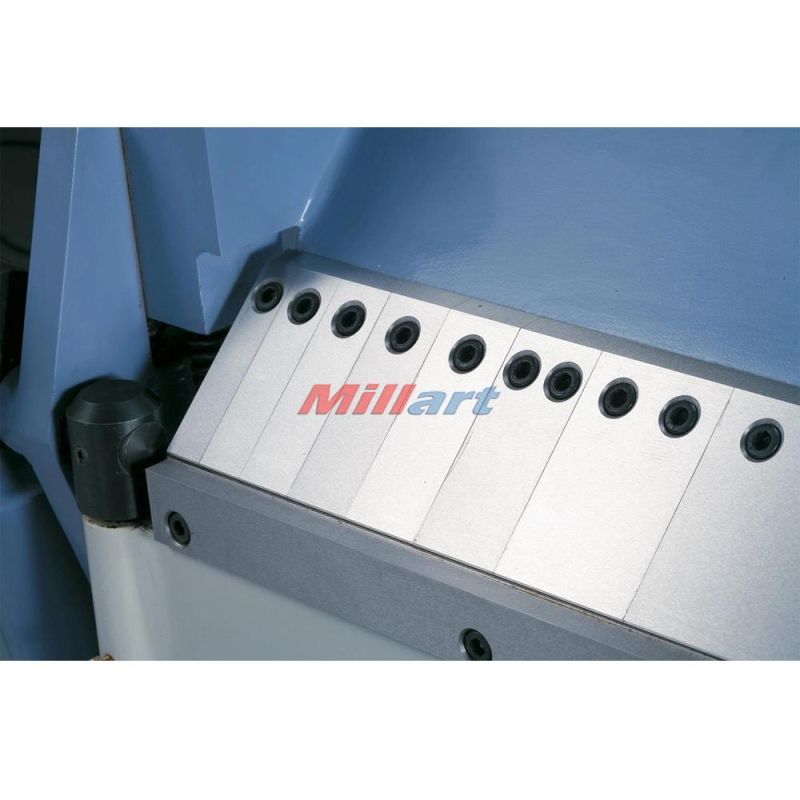

4. Our precision folding machine is used for bending the sheet metal parts. The upper blade can be dismantled for use. It can choose a combination of upper blades according to the abnormity degree and length of the workpiece.
Technical parameter:
Model | PBB1020/2.5 | PBB1270/2 |
Max. working length(mm) | 1020 | 1270 |
Max. sheet thickness(mm) | 2.5 | 2.0 |
Max. clamping bar lift(mm) | 47 | 47 |
Folding angle | 0-135° | 0-135° |
Packing size(cm) | 146X62X127 | 170X71X127 |
N.W/G.W(kg) | 285/320 | 320/360 |
