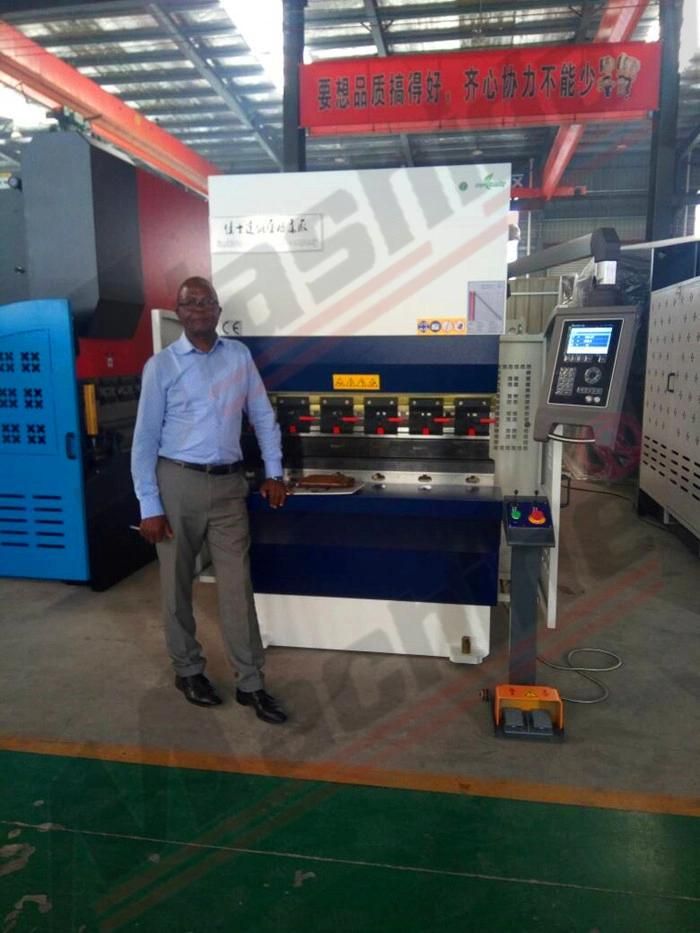

40-Ton Strength 2500 mm Length CNC Metal Sheets Bending Machine

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：2-year
  • Certification：CE
  • Automation：Automatic
  • Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type：Press Brake

Base Info

  • Model NO.：HPB 40T2500
  • CNC System：Delem Da52s
  • Max Bending Thickness：6mm
  • Max Bending Width：1200mm
  • Axes：X, Y, R Axes
  • Backgauge：500mm Distance, Ball Screw and Linear Guide
  • Power：3kw
  • Weight：2500kg
  • Main Motor：Siemens
  • Electrical Components：Schneider
  • Hydraulic Valve：Bosch-Rexroth
  • Transport Package：Wooden Package
  • Specification：1300x1400x2050mm
  • Trademark：Jiashida Machine
  • Origin：China
  • HS Code：8462219000
  • Production Capacity：100 Sets,Month

Description

MB8 Series Electro-hydraulic Servo CNC Press Brake DA52S System:

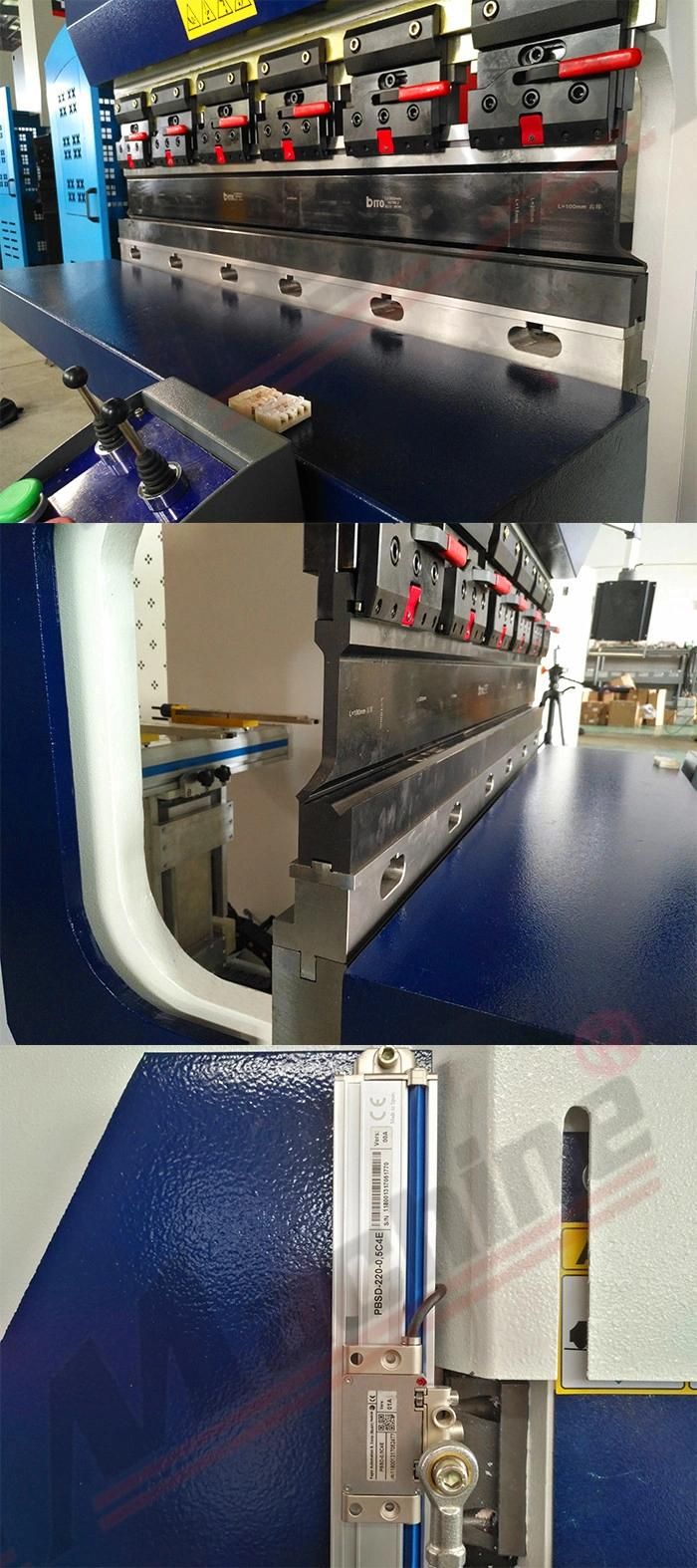

The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.MB8 standard 2 shafts back gauge system, as to complex shape work pieces, 4 or 5 shafts back gauge system and corresponding dies are available for your option.According to state of sheet metal on the press brake, CNC system can automatically control the table deflection compensation yielding uniform length of all work-pieces angles.The distance of the rear gear and the stroke of the slider are controlled by the numerical control system, which is convenient and quick.The oil cylinder has been forged, Quenched and tempered, fine grinding, hard chromium plating and other processes, and with the import of sealing ring, the phenomenon of oil leakage in customer service.40-Ton Strength 2500 mm Length CNC Metal Sheets Bending MachineStandard Punch and Die
Double V dies as showed in the photo
Can also be customized according to customer's product
Material is 42CrMo

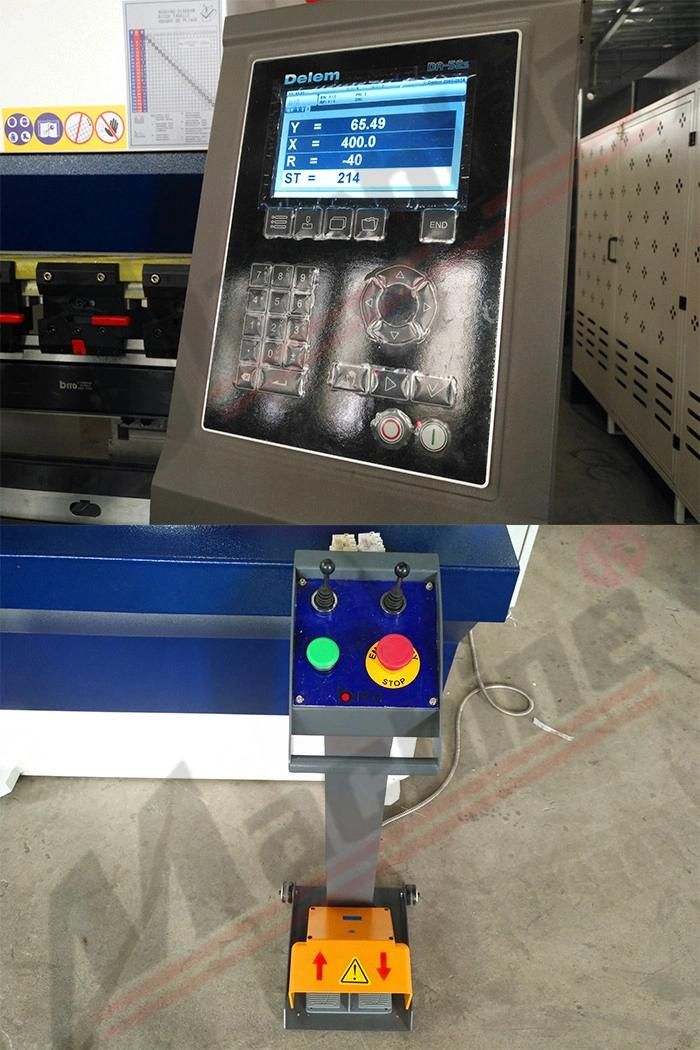

Overall quenching process, high hardnedd and good wear resistence. Brand Quick Clamping DeviceThe clamping interface of the European mouldWith the fine tuning wedge, adjustable fixture to ensure the effective use of height between flatness requirements.Y Axis ControlPress Brakes using Germany Bosch Rexroth fully-closed-loop electro-hydraulic servo control technology, slide position signal is feedbacked to controller by Spain FAGOR grating ruler, then the CNC controller adjusts the amount of fuel tank by chaning the synchronous valve opening size, hereby controlling the slide Y1, Y2 to run on the same frequency, maintaining the parallel state of the worktable40-Ton Strength 2500 mm Length CNC Metal Sheets Bending MachineHolland Delem DA52S CNC ControllerSouth Korea Foot Pedal Switch
Emergency buttom
Two black small hand shank to control the finger block to move left and right

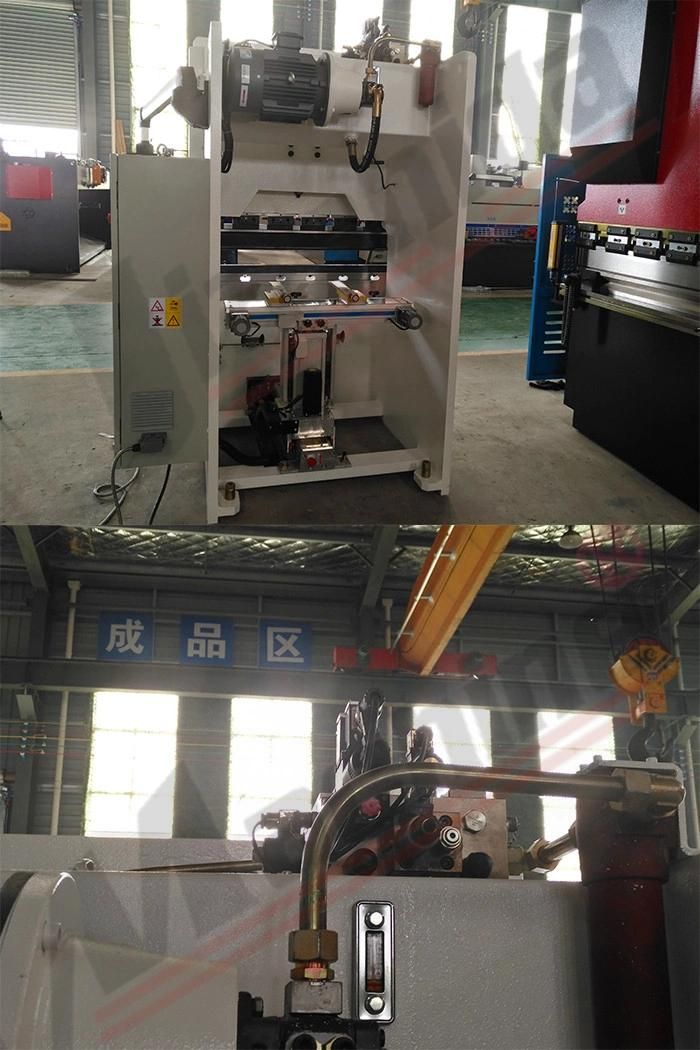

Foot press up and down40-Ton Strength 2500 mm Length CNC Metal Sheets Bending MachineGermany EMB TubeGermany EMB Tube and Connectors, reduce the odds against welding slag jamming the valves or affect oil flowingSealing Ring from German BAUSER and Busak+Shamban
Improve the service life of oil cylinderGuarantee long-term use without leakageSIEMENS Main Motor
To guarantee press brake service life, and reduce the noise when workingBosch Rexroth Hydraulic Valve
Hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluidAmerica Sunny Oil Pump

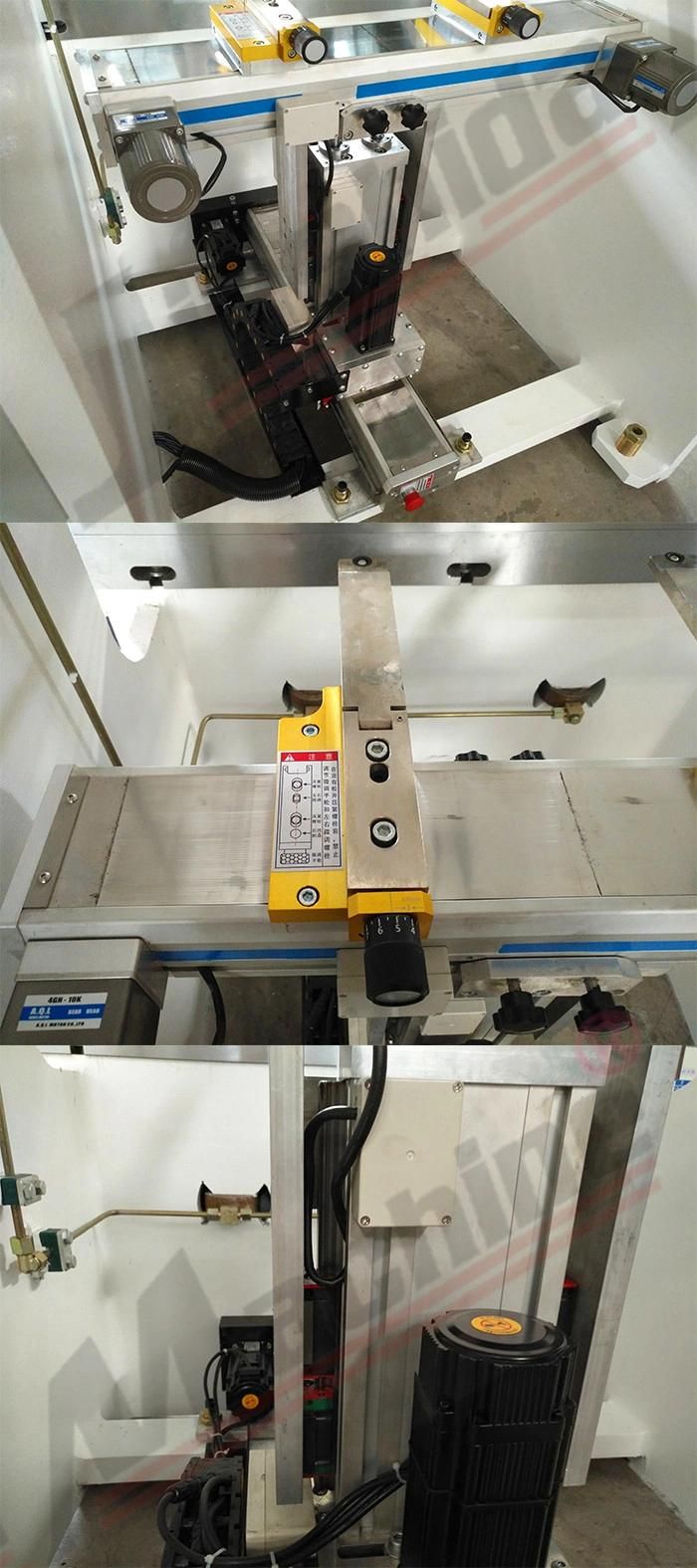

To guarantee the oil service life, and reduce the noise while working40-Ton Strength 2500 mm Length CNC Metal Sheets Bending MachineBack gaugeManual adjust R and Z axesServo Motrols X-axis, to guarantee high precisionTaiwan HINWIN Ball Screw and Linear Guide RailBack guage adopts horizontal installation shell structure with high stability, single shell doube guide rail, high precision, X-axis drive, automatic CNC system40-Ton Strength 2500 mm Length CNC Metal Sheets Bending Machine
