• Steel Grade：Q235
• Main Motor Power：45kw
• Roll Station：12 Stations
• Transport Package：Wooden Box
• Specification：customized
• Trademark：zzx
• Origin：Shandong, China
• HS Code：8462219000
• Production Capacity：15 Set,Sets Per Month

Basic Info.

Steel Grade Q235 Main Motor Power 45kw Roll Station 12 Stations Transport Package Wooden Box Specification customized Trademark zzx Origin Shandong, China HS Code 8462219000 Production Capacity 15 Set/Sets Per Month

Product Description

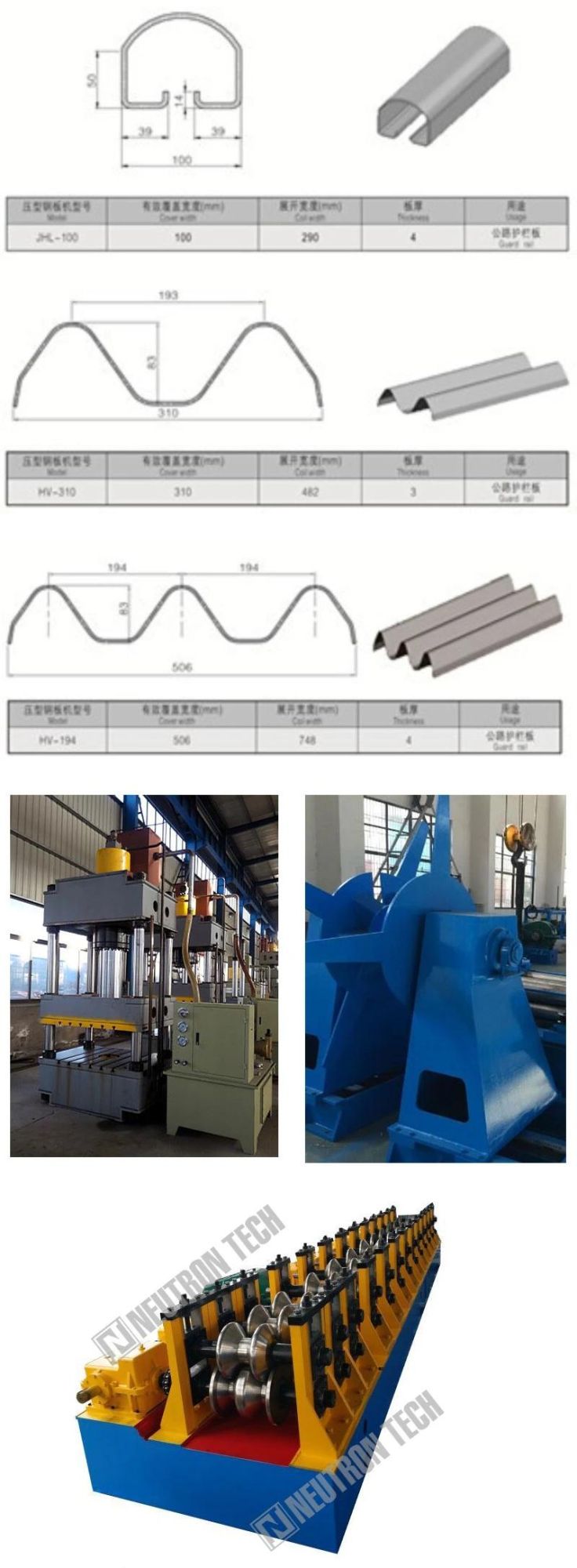

Product parameters

Raw Material:
Steel grade:  Q235
Thickness:   2.5~4.0mm
Coil inner diameter:φ508~φ600
Coil out diameter: ≤φ1900
Coil weight: ≤10T

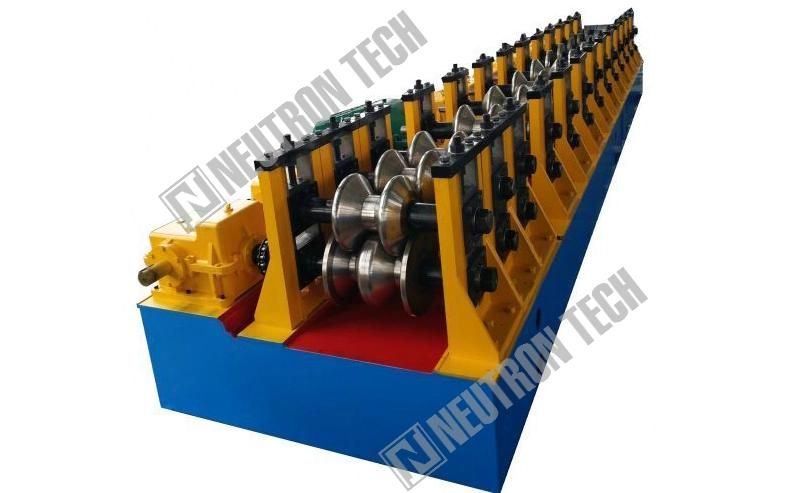

Automatic decoiler - Feeding - Leveling - Punching and cutting - Roll forming - Product packing manually The Structure of MachineAutomatic expansion decoiler1.Double unrolling machine,  2.Adopt automatic expansion system, power 2.2kw  3.Maximum coil weight: 10,000kg,4.inner diameter: 450-600mm, out diameter max 1900mm  5.with brake system. Feeding & levelingwall plate type 9 rollers leveler, 2 roller feeding, 7 roller leveling. Leveling roller 120mm, material 40Cr, heat treatment HRC48º~52º. Four stand roller to control sheet up and down movement. Power: 11kw, inverter adjusting, speed: 10-25m/min, feeding width max 500mm.  Punching and cutting:1.Use four column type press from Yangli group, equip with punching and cutting die set, fit for 9 or 10 holes. With one set of middle hole punching, cylinder dia 160mm, traveling distance: 60mm 2.Cut to length by encoder: length accuracy 4320±2.0mm, length can set in PLC. 3.Fast feeding unit: after cutting, sheet feeding into roll forming unit, 2.2kw, roller Dia: 120mm, material 40Cr, HRC48º~52º.Roll forming machine1.Main motor power: 45kw2.Drive: gearbox driving, 10units, GY230  3.Main shaft diameter: 80mm and 40Cr steel4.Roller material: GCR15 quenched 58°-62°, chromed5.Roll station:12 stations6.Speed: 2-3pieces per minute (4320mm length)Output tableControl panel1.Control system2.Voltage, frequency, phase: 380v, 50hz, 3phase 3.Automatic length measurement: One-unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length.4.Automatic quantity measurement5.Computer used to control length & quantity, machine will automatically cut to length and stop when required quantity is achieved 6.Length inaccuracy can be amended easily7.Control panel: button-type switch, touch screen 8.Unit of length: millimeter 9.Protection function 10.Motor over: Load protection 11.System over: Current protection 12.Short circuit protectione. Additional function Display total length producedDisplay total quantity producedDisplay forming speed Product display

Customer visit



Certifications



Company information
Our company is specialized in different kinds of products. We stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers for the management and zero defect, zero complaints as the quality objective. To perfect our service, we make our products with good quality at the reasonable price. The main products are high-speed railing molding equipment, U-shaped column forming equipment, iron tower processing equipment, steel structure processing equipment, sheet processing equipment, flange forming equipment, flame cutting machine, plasma cutting machine, laser cutting machine, hollow glass aluminum spacer Production line, hollow glass warm edge strip production line, furniture production line, CNC engraving machine, hollow aluminum strip, hollow sealant, etc. Its products are widely used in road and bridge construction, construction steel structure, electric power tower, automobile manufacturing, furniture manufacturing, decoration and decoration industries.

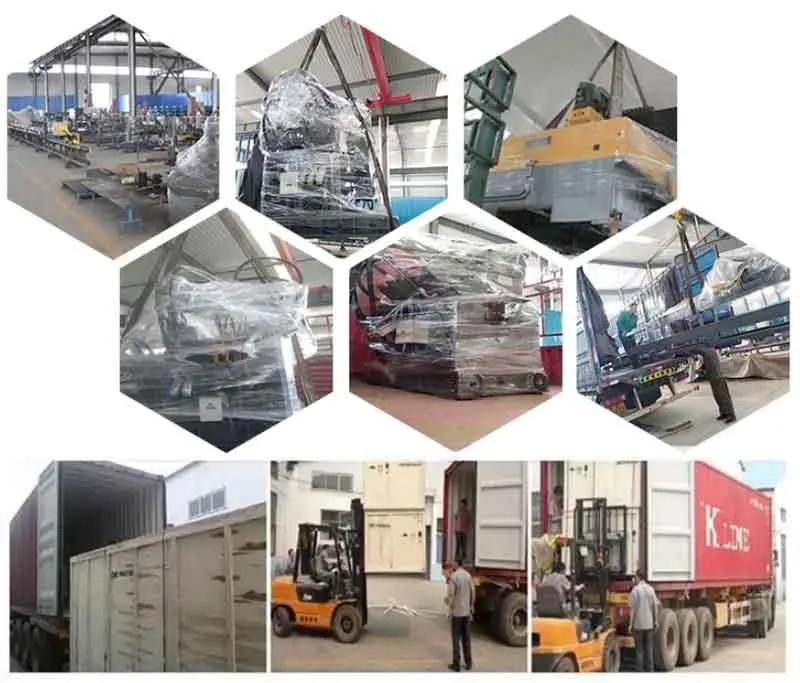

Packaging & Shipping
