Cutting & Fold-bend Machine

MB8-100t*3200 Delem Da52s CNC Press Bending Machine

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Warranty:2-year
  • Condition:New

Base Info

  • Model NO.:MB8-100t*3200
  • Certification:CE
  • Automation:Automatic
  • Suitable for:Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Cnc Bending Machine
  • Color:as Your Require
  • CNC System:Delem Da52s
  • Bending Thickness:4mm
  • Bending Width:3200mm
  • Motor:Simenes
  • Valve:Rexroth
  • Electric:Schneider
  • OEM&ODM:Yes!
  • Export:All Over The World
  • Certificate:Ce
  • Transport Package:as Customer Require
  • Specification:MB8-100T*3200
  • Trademark:Jiashida Machine
  • Origin:China
  • HS Code:8462219000
  • Production Capacity:100 Sets,Month

Description

Basic Info.

Model NO. MB8-100t*3200 Certification CE Automation Automatic Suitable for Aluminum, Alloy, Carbon Steel, Stainless Steel Type Cnc Bending Machine Color as Your Require CNC System Delem Da52s Bending Thickness 4mm Bending Width 3200mm Motor Simenes Valve Rexroth Electric Schneider OEM&ODM Yes! Export All Over The World Certificate Ce Transport Package as Customer Require Specification MB8-100T*3200 Trademark Jiashida Machine Origin China HS Code 8462219000 Production Capacity 100 Sets/Month

Product Description

We67k-100t*3200 Delem Da52s CNC Bending Machine From Jsd Factory

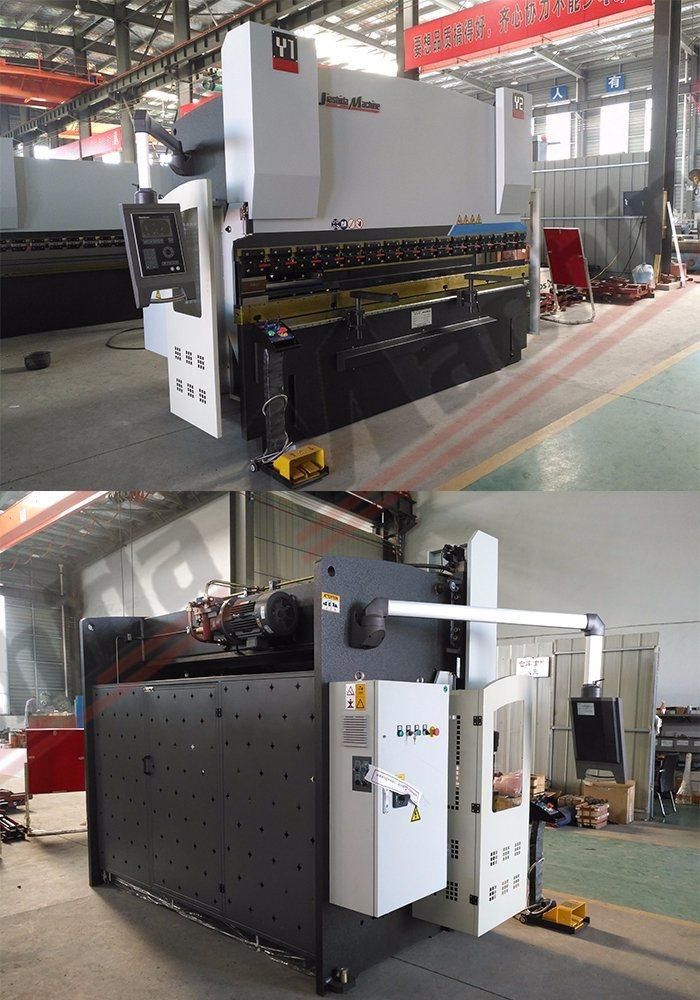

MB8-100t*3200 Delem Da52s CNC Press Bending Machine
DA52S CNC Press Brake Machine Features:
1.Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simple appearance.
2.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.
3.Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series PRESS BRAKES.
4.Optimal ratio of parameters and top-level core configuration ensure stable performance and easy operation.
5.MB8 standard 2 shafts back gauge system, as to complex shape work pieces, 4 or 5 shafts back gauge system and corresponding dies are available for your option.
6.Press brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to CNC system by bilateral gratings, then CNC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider Y1, Y2 running on the same frequency, maintaining the parallel state of the worktable.
7.According to state of sheet metal on the press brake, CNC system can automatically control the table deflection compensation yielding uniform length of all workpieces angles.
8.The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged. Compensation valves are subject to plate thickness and properties of material to be bent.
MB8-100t*3200 Delem Da52s CNC Press Bending Machine

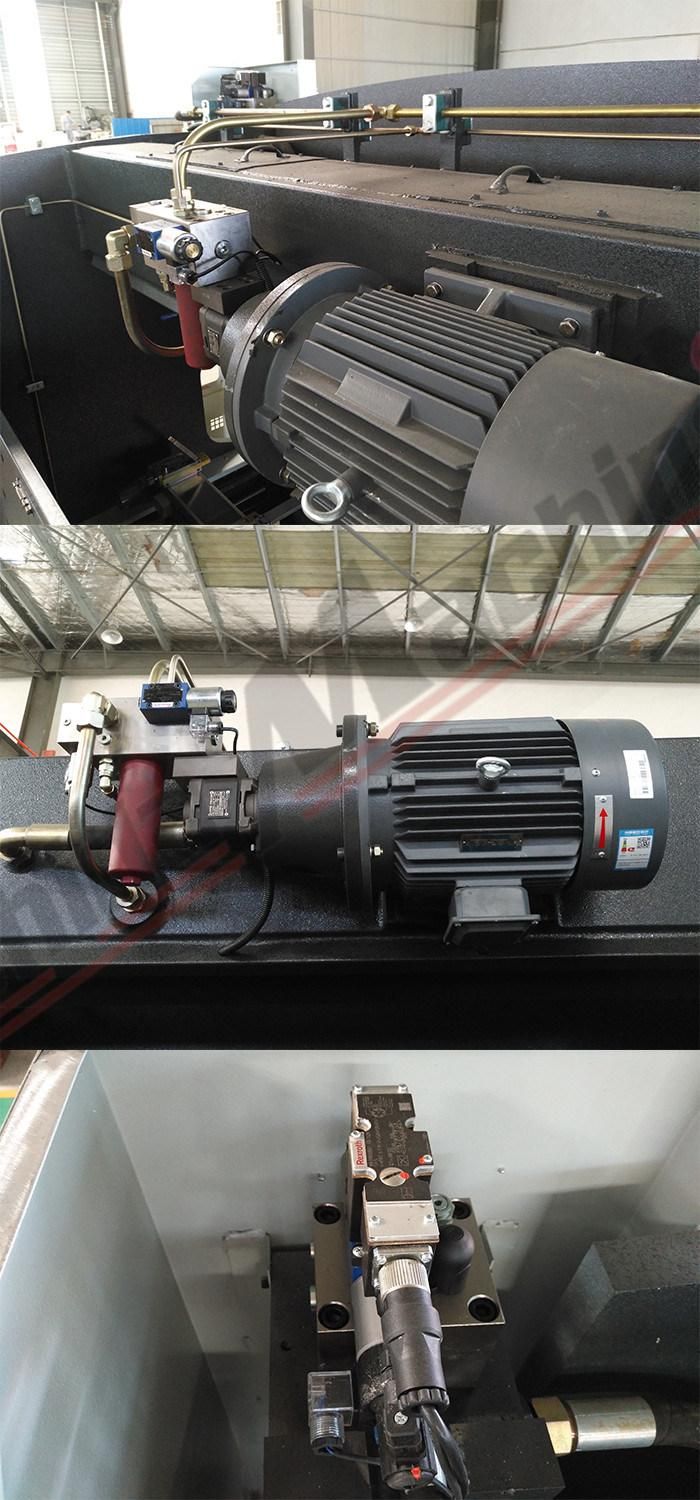

Machine on the Top
Sealing Ring from German BAUSER and Busak+Shamban
Hydraulic Valve from German Bosch-Rexroth
Main Motor from German Siemens
Oil Pump from America Sunny
MB8-100t*3200 Delem Da52s CNC Press Bending Machine

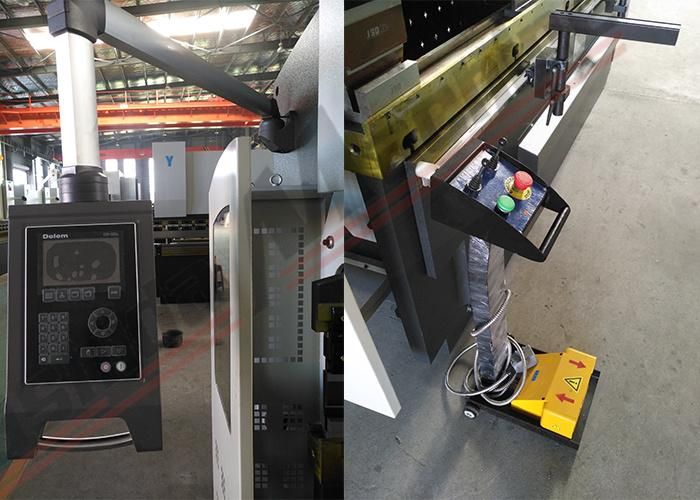

Holland Delem DA52S CNC Controller Features:
Quick, one page programming
Hotkey navigation
7" VGA colour TFT
Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
Crowning control
Tool/material/product library
USB, peripheral interfacing
Advanced Y-axis control algorithms for closed loop as well as open loop valves
South Korea Foot Pedal Switch
Emergency buttom
Two black small hand shank to control the finger block to move left and right
Foot press up and down
MB8-100t*3200 Delem Da52s CNC Press Bending Machine

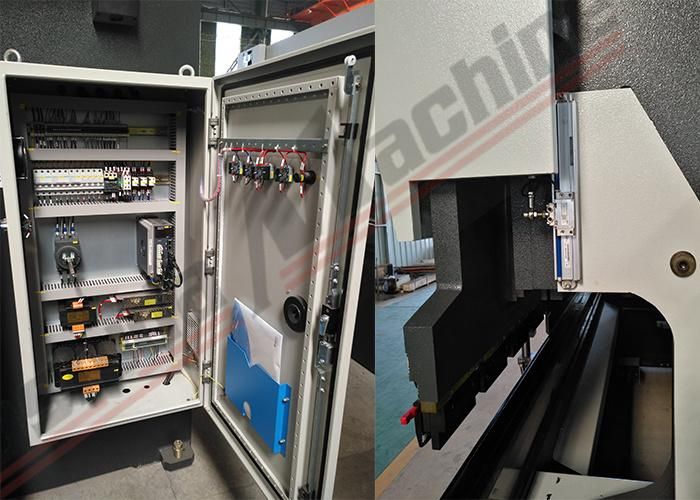

France Schneider Electrics
Stable performance, long life service
Spanish Fagor Grating Ruler
Slider position signals can be feedback to CNC system by bilateral gratings, then CNC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider Y1, Y2 running on the same frequency, maintaining the parallel state of the worktable.
MB8-100t*3200 Delem Da52s CNC Press Bending Machine

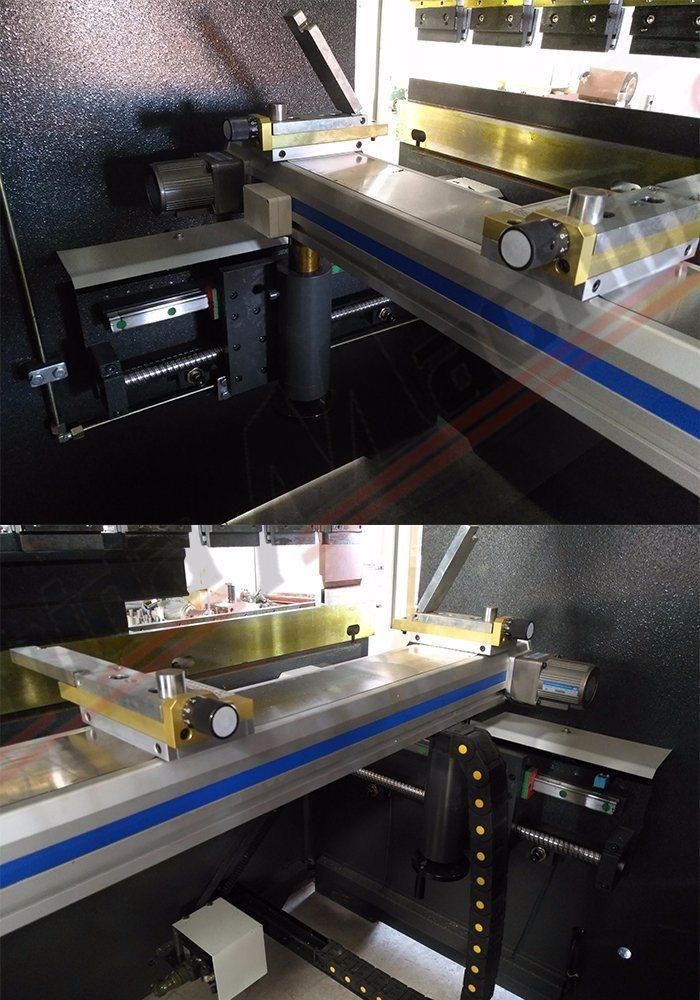

Backgauge
With X and R axis
Taiwan Hiwin Ball Scress and Linear Guide to main the high precision
Estun Servo Motor controls backguage
Two Finger Blocks move along the beam electronically
MB8-100t*3200 Delem Da52s CNC Press Bending Machine

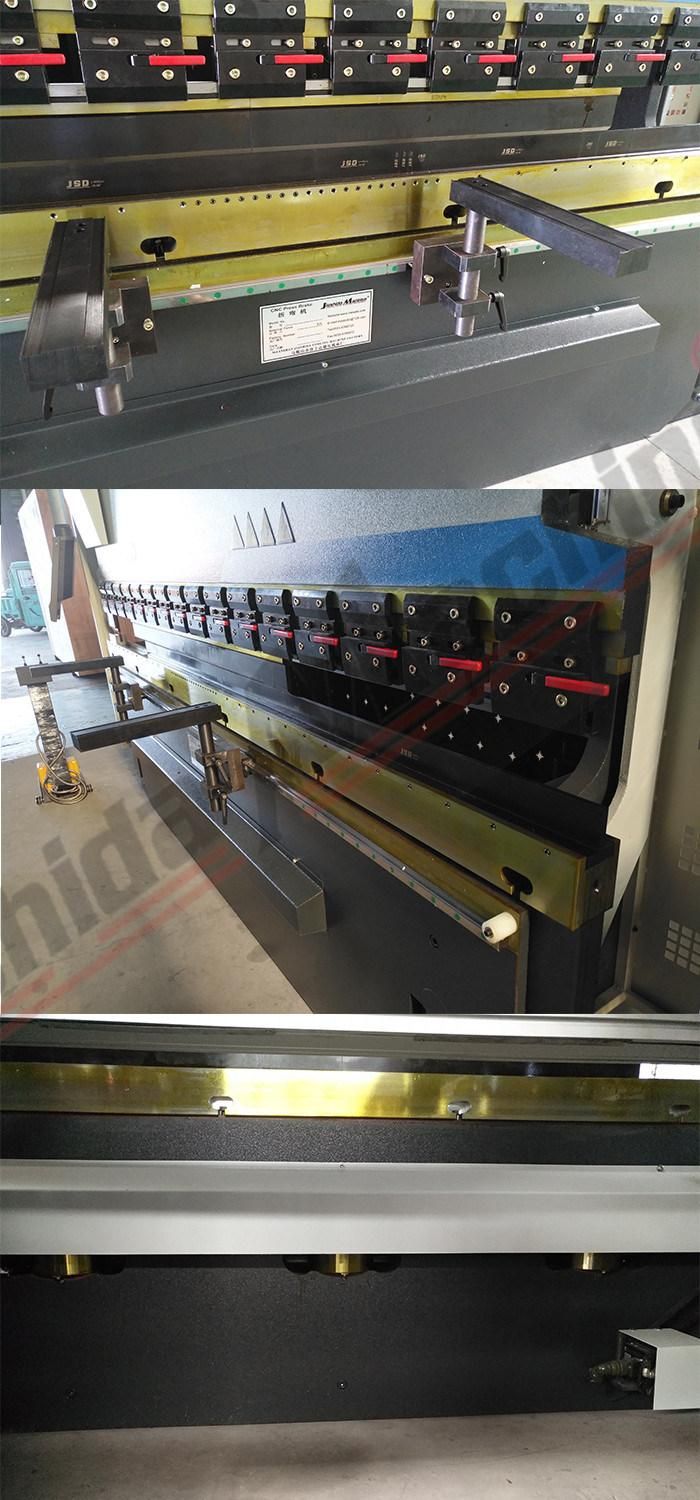

Machine on the Front
Equipt with Chinese quick clamping(can also be Amanda)
Front Supports can be moved along the linear guide in the worktable direction
Hydraulic Crowning for the straightness of metal sheet bending(can also be mechancal crowning)

WATCH MACHINE VIDEO HERE FROM YOUTUBE:
https://youtu.be/6SWnAJTeqrs


MORE DETAILS, PLEASE GIVE US YOUR INQUIRY, THANKS.
