Factory Price Hydraulic Bending Machinery
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info

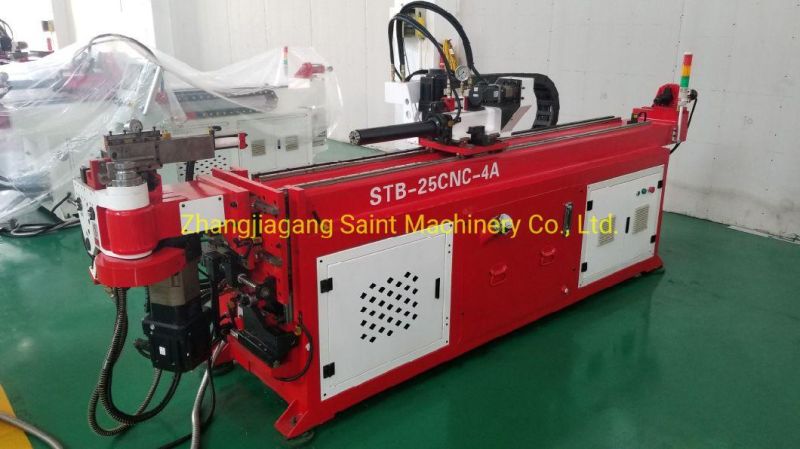

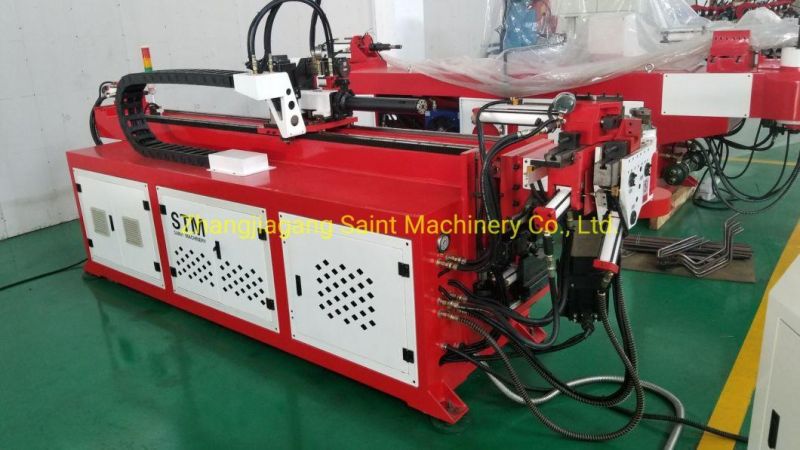

- Model NO.：STB-25CNC-4A-2S
- Type：Pipe and Tube Bending Machine
- Electric Axis：4 Axis
- CNC System：Mitsubishi
- Tools Stack：2 Stacks
- Controller Type：Ipc
- Transport Package：Polywood Case
- Specification：LWH: 3700× 1200× 1500mm, GW: 1400kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. STB-25CNC-4A-2S Type Pipe and Tube Bending Machine Electric Axis 4 Axis CNC System Mitsubishi Tools Stack 2 Stacks Controller Type Ipc Transport Package Polywood Case Specification LWH: 3700× 1200× 1500mm, GW: 1400kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description

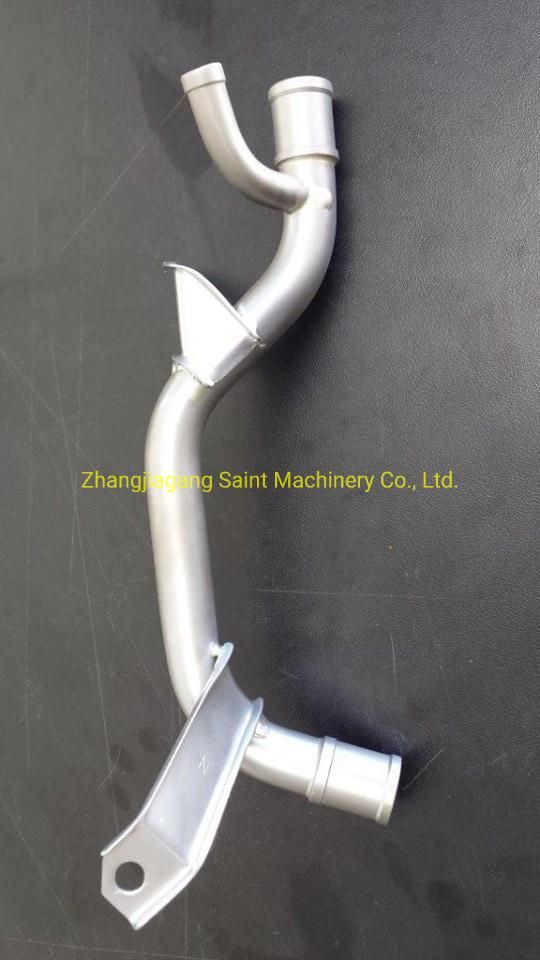

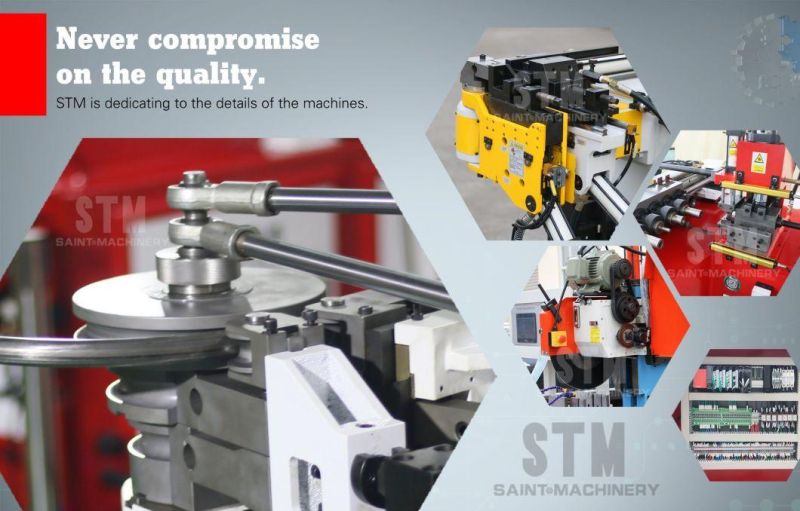

1. Bend-arm (C-axis) by AC servomotor.2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by hydraulic, left-right by AC servomotor.
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
12. Optional: 3D bending simulation and collision prevention
13. Optional: auto loading and unloading system.
| Model | STB-25CNC-4A-2S | STB-18CNC-4A-2S |
|---|---|---|
| Bending capability OD×WT (carbon steel) | Φ25.4× 1.6mm | Φ18× 1.2mm |
| Bending radius (by tools) | 18~160 mm | 10~120 mm |
| Bending angle | 0~195° | 0~195° |
| Max bending length with mandrel | 2000mm | 1600mm |
| Bending speed | 150°/sec | 150°/sec |
| Bending accuracy | ±0.1° | ±0.1° |
| Feeding speed | 20~900 mm/sec | 20~1000 mm/sec |
| Feeding accuracy | ±0.1 mm | ±0.1 mm |
| Rotating speed | 320°/sec | 360°/sec |
| Rotating accuracy | ±0.1° | ±0.1° |
| Tools stack | 2 | 2 |
| Bending | Electric Servomotor | Electric Servomotor |
| Feeding/Booster | Electric Servomotor | Electric Servomotor |
| Rotating | Electric Servomotor | Electric Servomotor |
| Tool shifting (left & right) | Electric Servomotor | Electric Servomotor |
| Main motor power | 4.0 KW | 4.0 KW |
| System hydraulic pressure | 12MPa | 12MPa |
| Size | 3700×1200×1500mm | 3000×1200×1500mm |
| Weight | 1400 kg | 1000 kg |
