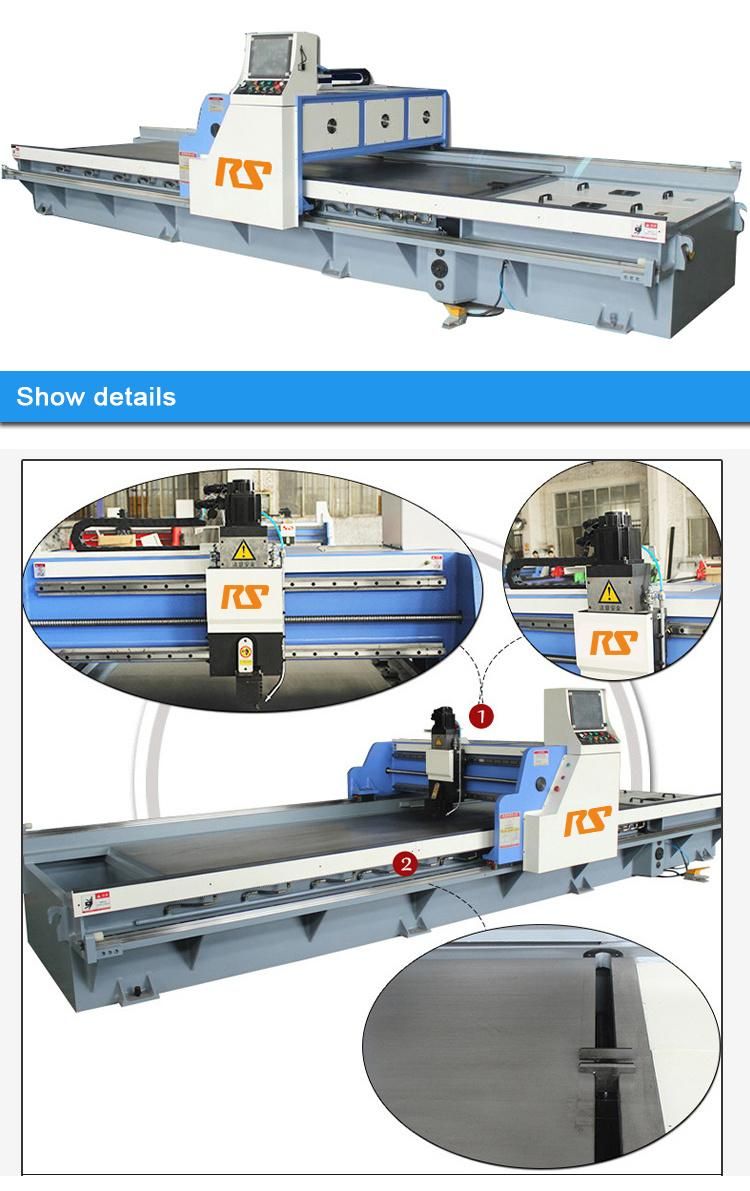

Universal Cutter Clamp Mounting Face Gantry Type Grooving Machine

RSM Machinery Co.,Ltd.
  • After-sales Service：Online Video Support
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Condition：New
  • Certification：CE
  • Automation：Automatic

Base Info

  • Suitable for：Stainless Steel
  • Type：Beading Machine
  • Machining Workpiece Width：1500mm
  • Machining Workpiece Length：3200mm
  • Min. Side Distance：6-8mm
  • X Axis Working Speed：70m,Min
  • Motor Power(X Axis)：5.5kw
  • Transport Package：Standard Export Wooden Box
  • Specification：5300*2350*1560mm
  • Trademark：RS
  • Origin：Shanghai, China
  • Production Capacity：5 PCS,Month

Description

Machining workpiece width1500mmMachining workpiece length3200mmThe thickness of grooving(stainless steel)0.5-5mmMin. thickness of plate0.5mmMin. side distance6-8mmX axis working speed70m/minX axis return speed80m/minY1 axis max distance1250mmY1 axis move speed20m/minY1 axis resolution0.001mmRepeat positioning accuracy±0.01mmZ axis resolution0.001mmMotor power(X axis)5.5KWMotor power(Y1,Y2,Z axis)1KW
Universal Cutter Clamp Mounting Face Gantry Type Grooving MachineUniversal Cutter Clamp Mounting Face Gantry Type Grooving MachineUniversal Cutter Clamp Mounting Face Gantry Type Grooving MachineUniversal Cutter Clamp Mounting Face Gantry Type Grooving MachineUniversal Cutter Clamp Mounting Face Gantry Type Grooving MachineUniversal Cutter Clamp Mounting Face Gantry Type Grooving Machine
FAQ

1.Can you do OEM service?
Yes, we can.

2.What's the MOQ?
A: 1 Set only.

3.How is warranty?
12 months from bill of loading(Spare parts and man-made damage are not included).
