• Model NO.：ZSL-6X1800
• Thickness：1-6mm
• Width：1600mm
• Coil Weight：25, 30tons
• Material：Hot Rolled Plate
• Width Acuracy：Less Than 0.1mm
• Cutting Burr：Less Than 3%
• Slitting Quantity：5-25 Strip
• Line Speed：100-120m,Min
• Advantage：High quality and High Precision
• Transport Package：Seaworthy Packing
• Specification：30m L x10m W
• Trademark：zeye
• Origin：China
• HS Code：8460902000
• Production Capacity：60

Basic Info.

Model NO. ZSL-6X1800 Thickness 1-6mm Width 1600mm Coil Weight 25, 30tons Material Hot Rolled Plate Width Acuracy Less Than 0.1mm Cutting Burr Less Than 3% Slitting Quantity 5-25 Strip Line Speed 100-120m/Min Advantage High quality and High Precision Transport Package Seaworthy Packing Specification 30m L x10m W Trademark zeye Origin China HS Code 8460902000 Production Capacity 60

Product Description

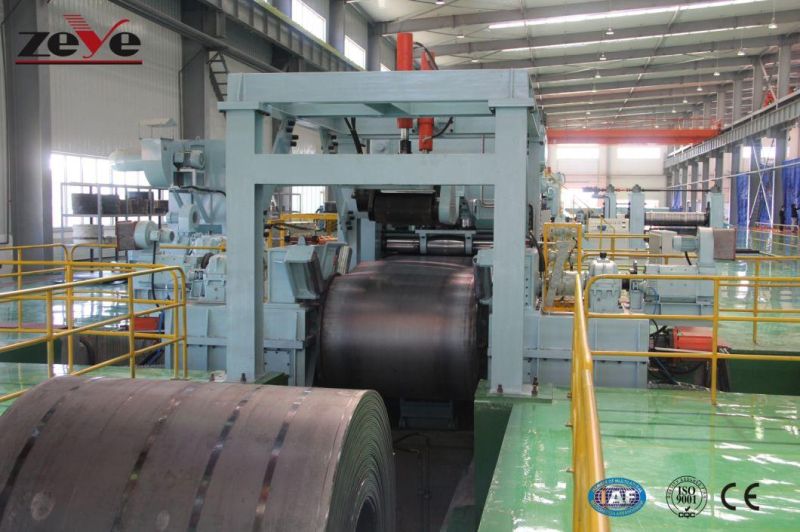

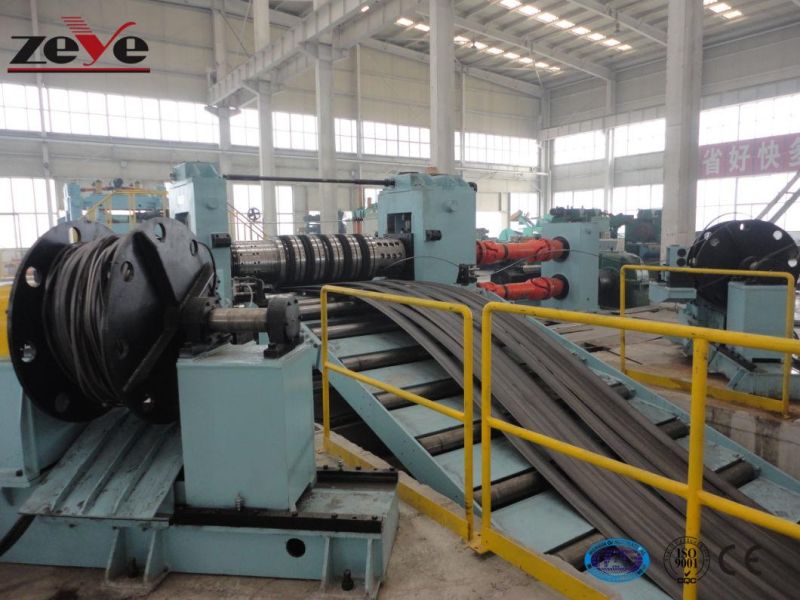

Slitting line ZSL series
Slitting line is mainly used for metail coil shear from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,
cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.

Main Units
1.Entry coil car,
2.Uncoiler,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Hydraulic shear,
11.Recoiler
12.Exit coil car.

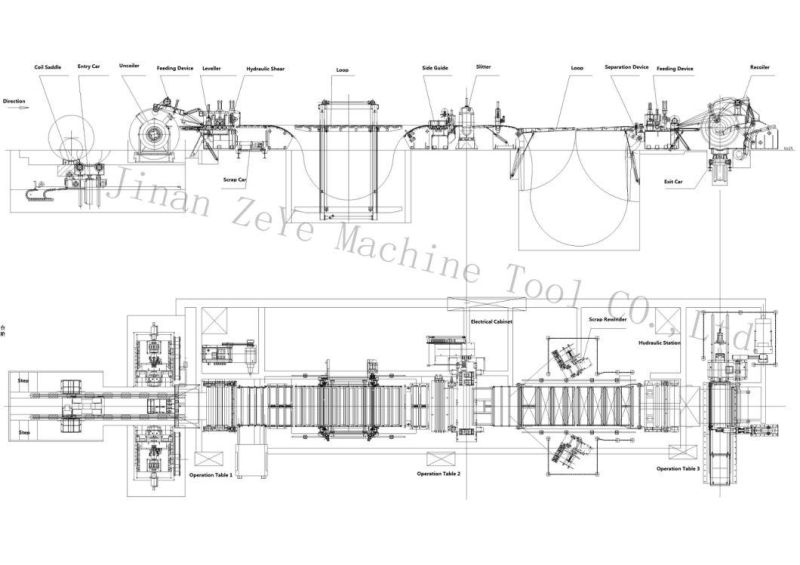

Slitting Line Layout
 Main Technical Parameters


Model	ZSL-6	ZSL-8	ZSL-12	ZSL-16	ZSL-20/25
Material thickness	1.5-6.0mm	2.0-8.0 mm	3.0-12 mm	4.0-16.0 mm	6.0-20/25 mm
Material width	300-1600 mm	300-1800 mm	300-2000 mm	300-2000 mm	300-2200 mm
Slitting quantity	30	25	25	20	20
Width accuracy	±0.10 mm	±0.10 mm	±0.20 mm	±0.20 mm	±0.20 mm
Cutting burr	<3%	<3%	<3%	<3%	<3%
Winding split level floor	<1 mm	<1 mm	<1 mm	<1 mm	<1 mm
Line speed	120 m/min	100 m/min	80 m/min	60 m/min	60 m/min
Coil weight	20,30 t	20,30 t	20,35 t	20,35 t	20,35 t

Our advantages
1.Automatically detect the material parameter , one key to load coil, automatically centering adjustment.
2.The imported bearing and sliding rail and the advanced lubrication system to ensure the longer using life.
3.Japan MAZAK, Spain CORREA CNC etc.the world most advanced high precision processing equipment to ensure to produce high precision shear line with stable qality.

Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

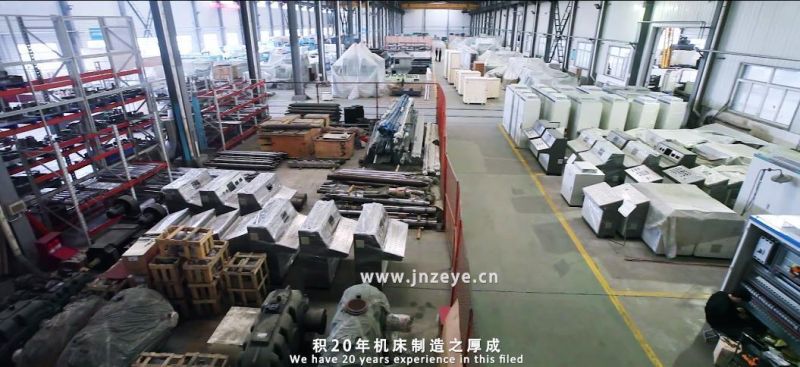

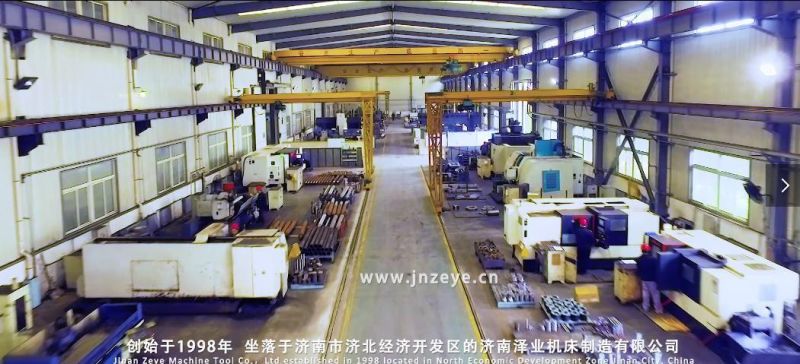

Company introduction

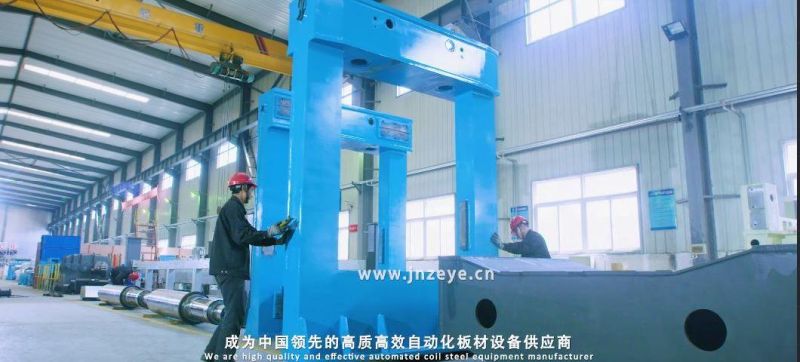

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.



Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months when the equipment run normally .
