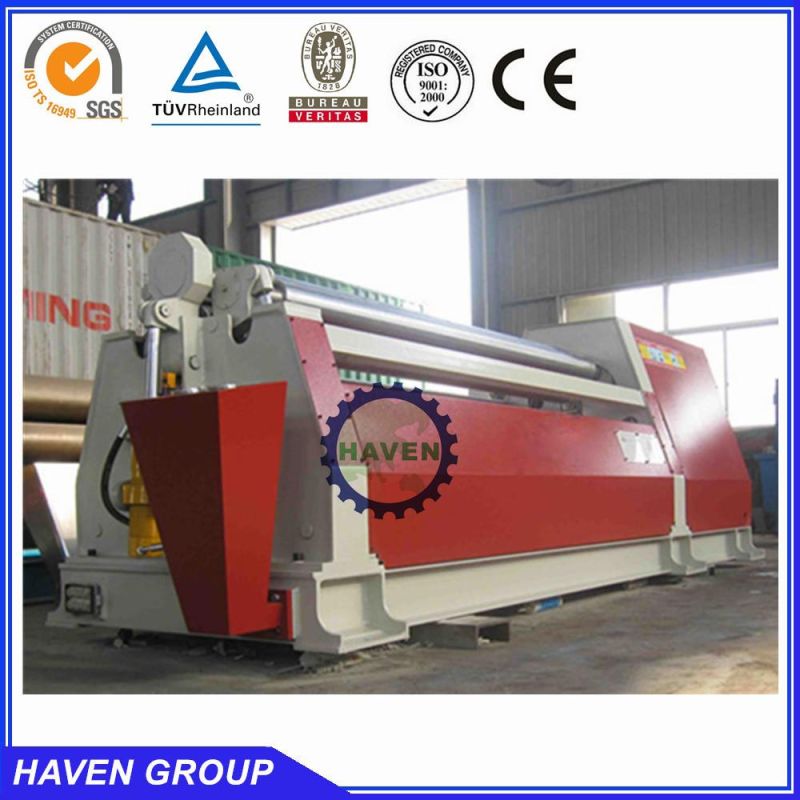

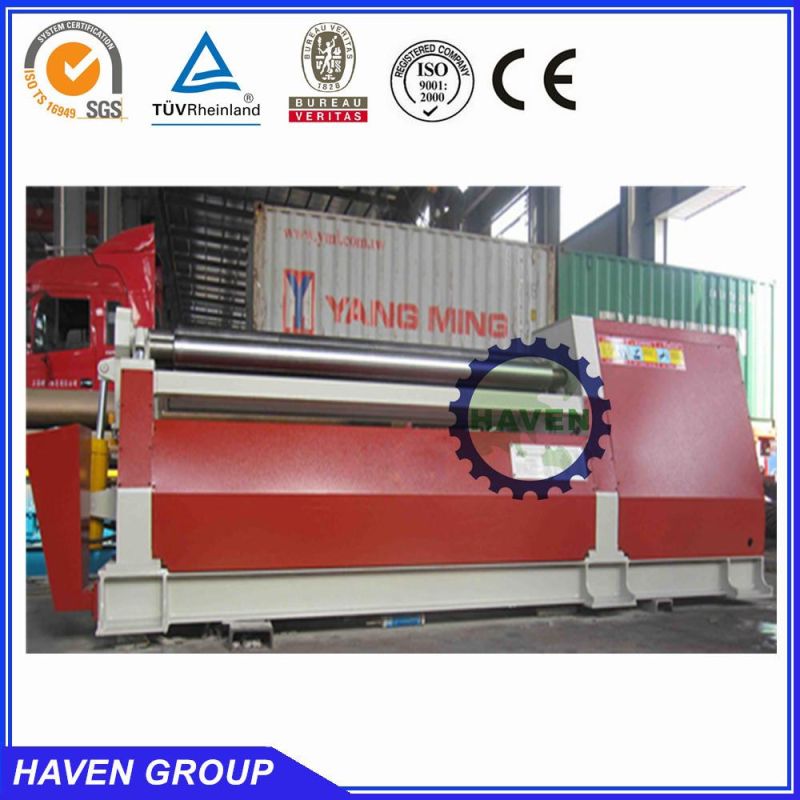

W12S-30X2000 4 Roller Steel Plate Bending and Rolling Machine
Shaanxi HAVEN Equipment Co., Ltd.- Waterproof Rating：IPX-1
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Automatic
- Suitable for：Carbon Steel, Stainless Steel
Base Info
- Model NO.：W12S-30x2000
- Type：Roller-Bending Machine
- Roller：4 Rollers
- Control：PLC
- Application：Machinery & Hardware, Textiles, Chemical, Medical
- Type for Fold-bending Machine：CNC Fold-bend Machine
- Type for Cutting Machine：Bending Machine
- Transport Package：Steel Pallet
- Specification：ISO 9001: 2000
- Trademark：HAVEN
- Origin：China
- HS Code：84622990
- Production Capacity：60 Units,Month
Description
Basic Info.
Model NO. W12S-30x2000 Type Roller-Bending Machine Roller 4 Rollers Control PLC Application Machinery & Hardware, Textiles, Chemical, Medical Type for Fold-bending Machine CNC Fold-bend Machine Type for Cutting Machine Bending Machine Transport Package Steel Pallet Specification ISO 9001: 2000 Trademark HAVEN Origin China HS Code 84622990 Production Capacity 60 Units/MonthProduct Description
W12S-30X2000 4 Roller Steel Plate Bending and Rolling Machine
Electric Slip Roll Machine, Slip Roll Machine Rolling Machine, Rolling Machine, Electric Rolling Machine,
Plate Rolling Machine, Slip Roll Bending Machine, Electric Slip Roll Bending Machine, Electric Slip Roll
Forming Machine,
The machine adopts the four-roller structure with the upper roller as the main drive, providing the plates bending with torque through the engagement between the gear of the moderator and the gear of the upper roller.
The lower roller moves vertically and imposes a force on the piston via. The hydraulic cylinder.
Outer rollers are arranged on both sides of the two inner lower roller. And make inclining movement along the guide rail, and are provided with drive through the lead screw nut and worm gear.
The advantage of this is that the preliminary bending and rolling of the top ends of the plates be done on the same machine.
| Model | Working Length (mm) | Max. Thickness (mm) | Pre- Bending (mm) | Upper (Φmm) | Under (Φmm) | Side (Φmm) | Motor Power (km) | dimension(cm) |
| W12S-4x2000 | 2000 | 4 | 3 | 160 | 140 | 120 | 2.2 | 392x86x114 |
| W12S-4x2500 | 2500 | 4 | 3 | 190 | 170 | 150 | 3 | 402x125x138 |
| W12S-4x3200 | 3200 | 4 | 3 | 210 | 190 | 170 | 7.5 | 466x132x137 |
| W12S-4x4000 | 4000 | 4 | 3 | 270 | 250 | 210 | 5.5 | 600x143x152 |
| W12S-6x2000 | 2000 | 6 | 4 | 190 | 170 | 150 | 3 | 402x125x138 |
| W12S-6x2500 | 2500 | 6 | 4 | 210 | 190 | 170 | 7.5 | 466x132x137 |
| W12S-6x3200 | 3200 | 6 | 4 | 230 | 210 | 190 | 7.5 | 516x132x137 |
| W12S-6x4000 | 4000 | 6 | 4 | 300 | 270 | 210 | 5.5 | 592x149x173 |
| W12S-8x2000 | 2000 | 8 | 6 | 210 | 190 | 170 | 7.5 | 416x132x137 |
| W12S-8x2500 | 2500 | 8 | 6 | 230 | 210 | 190 | 7.5 | 466x132x137 |
| W12S-8x3200 | 3200 | 8 | 6 | 270 | 250 | 210 | 11 | 551x143x152 |
| W12S-8x4000 | 4000 | 8 | 6 | 330 | 300 | 240 | 7.5 | 597x161x184 |
| W12S-10x2000 | 2000 | 10 | 8 | 230 | 210 | 180 | 7.5 | 416x132x137 |
| W12S-10x2500 | 2500 | 10 | 8 | 270 | 250 | 210 | 11 | 500x143x152 |
| W12S-10x3200 | 3200 | 10 | 8 | 300 | 270 | 210 | 11 | 542x146x173 |
| W12S-10x4000 | 4000 | 10 | 8 | 360 | 330 | 250 | 11 | 605x168x190 |
| W12S-12x2000 | 2000 | 12 | 9 | 270 | 250 | 210 | 11 | 451x143x152 |
| W12S-12x2500 | 2500 | 12 | 9 | 300 | 270 | 210 | 11 | 492x146x173 |
| W12S-12x3200 | 3200 | 12 | 9 | 330 | 300 | 240 | 11 | 547x161x184 |
| W12S-12x4000 | 4000 | 12 | 9 | 390 | 360 | 300 | 18 | 605x198x210 |
| W12S-16x2000 | 2000 | 16 | 12 | 300 | 270 | 210 | 11 | 442x146x173 |
| W12S-16x2500 | 2500 | 16 | 12 | 330 | 300 | 240 | 11 | 497x161x184 |
| W12S-16x3200 | 3200 | 16 | 12 | 360 | 330 | 250 | 15 | 554x168x190 |
| W12S-16x4000 | 4000 | 16 | 12 | 430 | 390 | 330 | 15 | 628x218x220 |
| W12S-20x2000 | 2000 | 20 | 16 | 330 | 300 | 240 | 11 | 440x200x212 |
| W12S-20x2500 | 2500 | 20 | 16 | 360 | 330 | 250 | 15 | 504x168x190 |
| W12S-20x3200 | 3200 | 20 | 16 | 390 | 360 | 300 | 18.5 | 552x198x210 |
| W12S-20x4000 | 4000 | 20 | 16 | 460 | 420 | 360 | 18.5 | 664x258x230 |
| W12S-25x2000 | 2000 | 25 | 20 | 360 | 330 | 250 | 15 | 447x161x184 |
| W12S-25x2500 | 2500 | 25 | 20 | 390 | 360 | 300 | 18.5 | 502x198x210 |
| W12S-25x3200 | 3200 | 25 | 20 | 430 | 390 | 330 | 22 | 578x218x220 |
| W12S-25x4000 | 4000 | 25 | 20 | 510 | 460 | 390 | 22 | 664x296x300 |
| W12S-30x2000 | 2000 | 30 | 25 | 390 | 360 | 300 | 22 | 479x218x220 |
| W12S-30x2500 | 2500 | 30 | 25 | 430 | 390 | 330 | 22 | 528x218x220 |
| W12S-30x3200 | 3200 | 30 | 25 | 460 | 420 | 360 | 30 | 614x258x230 |
| W12S-30x4000 | 4000 | 30 | 25 | 540 | 510 | 440 | 30 | 700x305x300 |
| W12S-35x2000 | 2000 | 35 | 28 | 430 | 390 | 330 | 30 | 430x250x245 |
| W12S-35x2500 | 2500 | 35 | 28 | 460 | 420 | 360 | 30 | 564x258x230 |
| W12S-35x3200 | 3200 | 35 | 28 | 510 | 460 | 390 | 37 | 630x258x230 |
| W12S-35x4000 | 4000 | 35 | 28 | 650 | 550 | 480 | 45 | 650x300x300 |
| W12S-40x2000 | 2000 | 40 | 32 | 460 | 420 | 360 | 37 | 450x250x245 |
| W12S-40x2500 | 2500 | 40 | 32 | 510 | 460 | 390 | 45 | 480x250x245 |
| W12S-40x3200 | 3200 | 40 | 32 | 540 | 500 | 440 | 45 | 650x305x300 |
| W12S-50x3200 | 3200 | 50 | 40 | 650 | 550 | 480 | 55 | 650x360x350 |
| W12S-60x3200 | 3200 | 60 | 48 | 760 | 680 | 580 | 75 | 750x450x415 |
