• Model NO.：SDC-165H

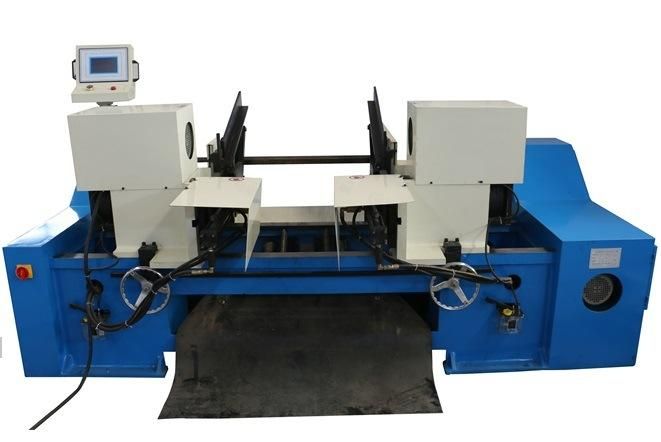

• Type：Pipe End Forming Machine
• Transport Package：Wooden Box
• Specification：CE ISO
• Trademark：RUNTAI
• Origin：Zhangjiagang Jiangsu China(Mainland)
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. SDC-165H Type Pipe End Forming Machine Transport Package Wooden Box Specification CE ISO Trademark RUNTAI Origin Zhangjiagang Jiangsu China(Mainland) Production Capacity 5000PCS/Year

Product Description

Characteristics:

1.  Can finish internal angle, external angle and pipe end at one time.

2. Automatic clamping, automatic blades penetrating and returning, fast speed, big capacity, high
efficiency, convenient operation, easy learning and understanding.

3. The speed of main shaft blade penetrating can be adjusted, fast speed and work speed functions are available.

4. In accordance with chamfering processing of work pieces of different size, only need to change the clamp fixtures and adjust the blade bed.


Specifications:


Technical parameters	SDC-165H
Pipe diameter capability	Φ38~Φ165mm
The length of chamfer working piece	150~1000mm (the customized type can process the one less than 150mm and more than 2000mm)
Rotation speed	400/800 RPM
Main motor	5.5kw
Hydraulic pressure	14Mpa
Suitable material	Carbon steel, stainless steel, aluminum, copper (pipe and iron bar)
Size	2800×2000×1800mm
Weight	About 3000kg

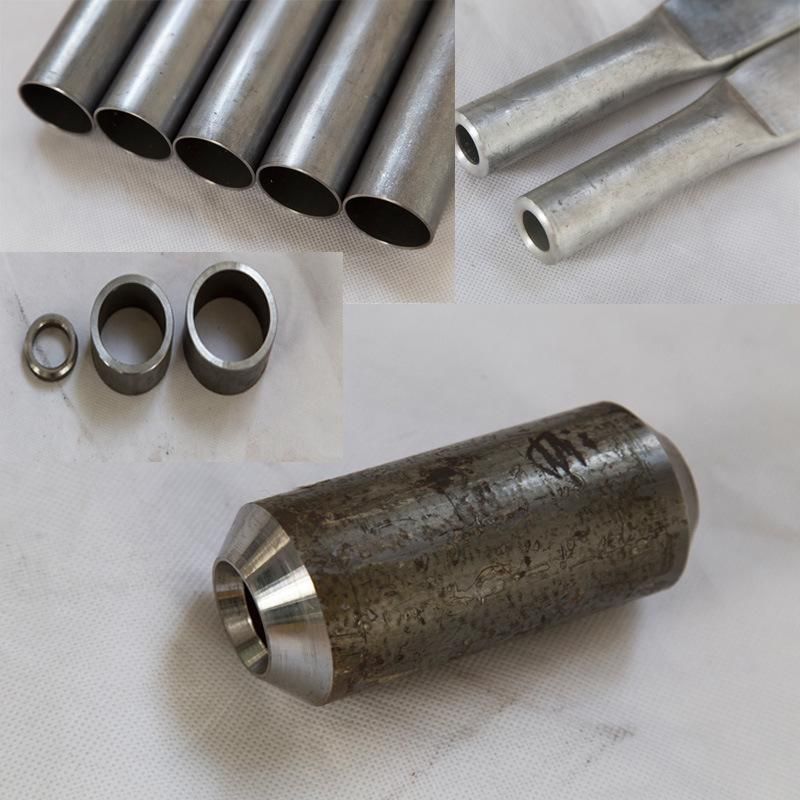

Chamfer tubes
