3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone

Jinan Junda Industrial Technology Co., Ltd.
  • After-sales Service：Video Technical Support
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Control：Automatic
  • Application：Metal, Glass, Stone

Base Info

  • Model NO.：JD-WJ50-3A-3020BA
  • Power Source：Electric
  • Style：Gantry
  • Type：Three-Axis
  • Max Discharge of Servo Oil Pump：90L,Min
  • Max Water Discharge：3.7L,Min
  • Max Available Orifice Diameter：0.3mm
  • Max Pressure：410MPa
  • Continuous Working Pressure：300 ~ 380MPa
  • Main Motor Power：37kw(50HP)
  • Power Supply：380V,50Hz,3pH
  • Max.Oil Pressure：20MPa
  • Length/Width/Height：1710,1025,1191
  • Weight：980kg
  • Intensifier：a&V (USA)
  • Motor：Siemens,Xingashi
  • PLC：Omron
  • Heat Exchanger：Air Cooling
  • Temperature Display：Digital Temperature Display
  • Transport Package：Wooden Box
  • Specification：3150 * 2150 * 2000mm
  • Trademark：JUNDA
  • Origin：China
  • HS Code：8464909000
  • Production Capacity：10set,Month

Description

Product Introduction

JD water jet Cutting Machine WJ50-3A-3020BA

Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the advantage such as compact structure, no spark and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture.



Product Advantages

JD-3020BA 3 axis waterjet cutting machine

A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Water jet can cut almost every thing, including metal, glass,plexi glass,ceramic,marble, granite, rubber and compound material etc. Cutting accuracy:+/- 0.1mm  Repeat accuracy:+/- 0.05mm

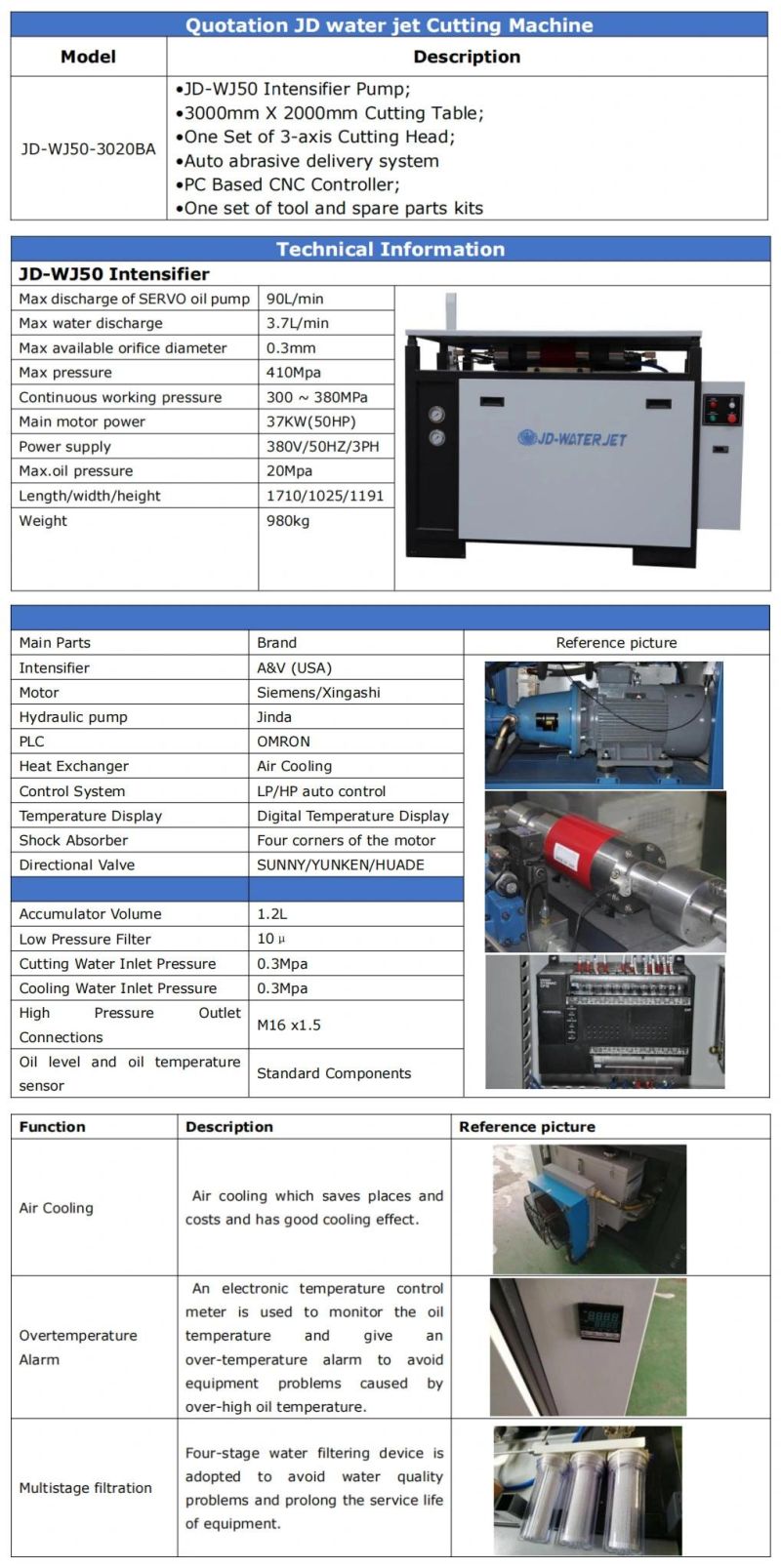

Technical Information

3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone

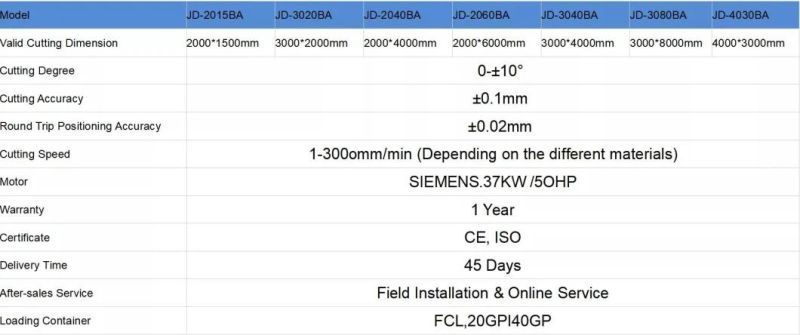

Junda Water Jet Cutting Machine All Models

3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone
Application

A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture.

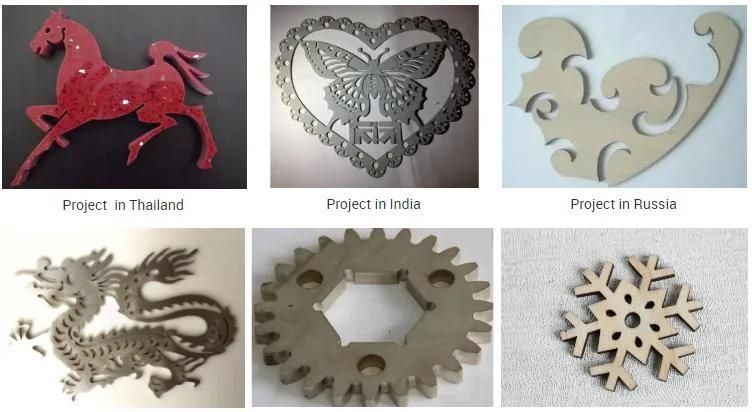

Cutting samples

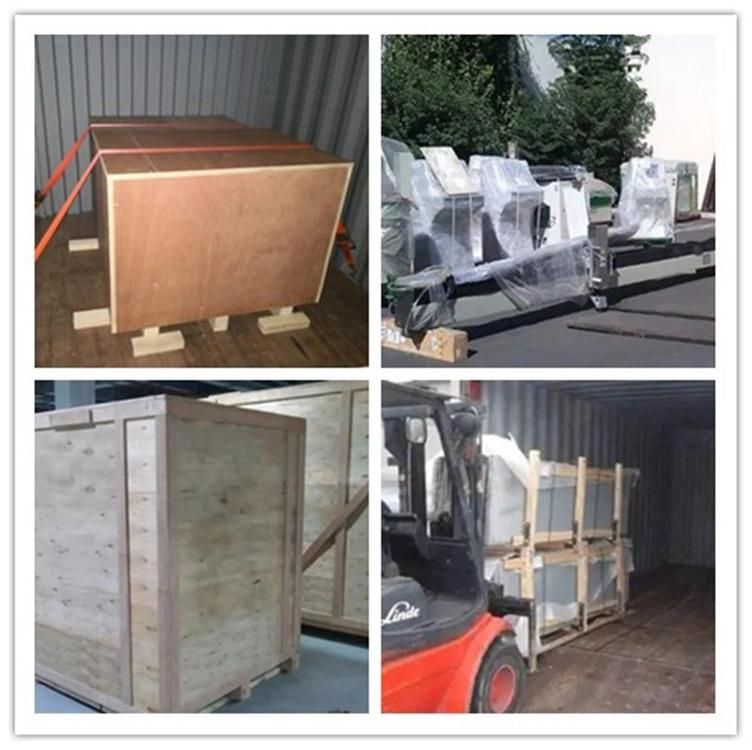

Designed & manufactured to perfection, we are one of the well known and leading manufacturers and exporters of Water Jet Cutting Machinery. At our premises, we are manufacturing the cutting machinery utilizing premium quality of raw materials and components. In addition to this, the cutting machinery is best known in the market due to its remarkable features such as high performance, easy operation and durability. This Machinery finds usage in many application such as automotive, aerospace and electronics for cutting metals and non metals.3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone Transportation & Packaging

3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone

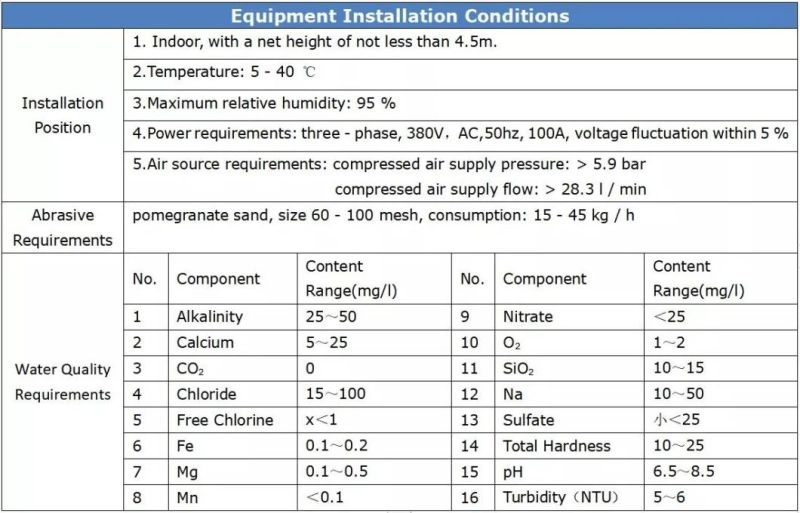

Installation And After-sales Service

3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone
Company Introduction

3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone
Our Certificate

3 Axis Water Jet Cutting Machine Water Jet Machining Water Jetting Equipment for Glass and Stone
FAQ

Q1:What's the delivery time?
A : 5-10 work days after receiving client's payment

Q2: What's package?
A: wooden box packaging

Q3: Do you have any timely technology supports?
A: we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also
you can contact us by telephone, online chat (whats, skype, phone).

Q4: What's the payment method?
A: T/T, WESTERN UNION, MONEY GRAM,LC...

Q5: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact
within 2days. Because we've bought insurance for you, we or shipping company will be responsible!

If any need, please do not hesitate to contact us. We are glad to serve you,thanks!
