• Model NO.：SB-120NCB
• Machine Type：Hydraulic Tube Bending Machine
• Certificates：Ce, ISO9001
• Color：Blue or Customized
• Eextra Function：1d Bending, Cutting, Punching
• Modle：Sb-168ncb
• Brand：Sanco
• Technology：Taiwan
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Applied Material：Carbon Steel, Stainless Steel, Copper, Aluminum
• Transport Package：Iron Frame
• Specification：8000kgs
• Trademark：Sanco
• Origin：China
• HS Code：8462219000
• Production Capacity：5sets ,Month

Basic Info.

Model NO. SB-120NCB Machine Type Hydraulic Tube Bending Machine Certificates Ce, ISO9001 Color Blue or Customized Eextra Function 1d Bending, Cutting, Punching Modle Sb-168ncb Brand Sanco Technology Taiwan Application Wheelbarrow, Wheelchair, Boiler, Automobile Applied Material Carbon Steel, Stainless Steel, Copper, Aluminum Transport Package Iron Frame Specification 8000kgs Trademark Sanco Origin China HS Code 8462219000 Production Capacity 5sets /Month

Product Description

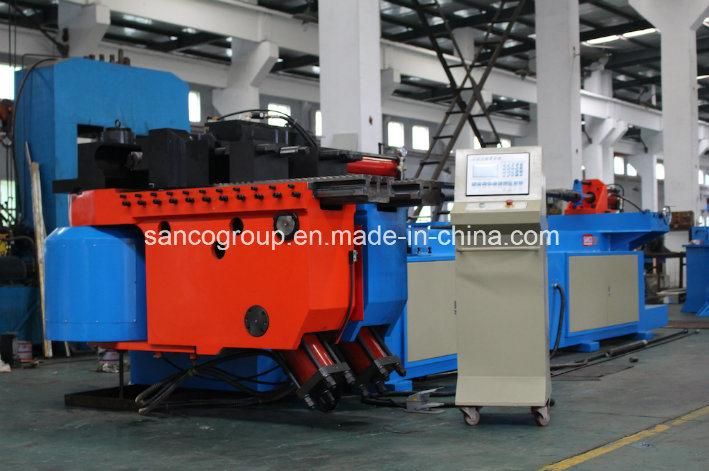

NC Bending Machine Pipe and Tube




Description:

Features / Equipment :
Bend-arm (C-axis) by hydraulic,clamp die by hydraulic, pressure die by hydraulic
With tube mechanical stopper, automatic mandrel lubrication, anticipated mandrel retraction unit.
Anticipated mandrel retraction unit. It adops imported special control system. With high stability.
Automatic bending tube, manual feeding tube and manual angle rotating.
Water-cool system
The processing speed is fast and its procession is high. It is suitable for high speed.
It has functions of manual, inching ,auto, setting, changing-program, single step, and so on.
It is a NC automatic bending machine controlled by PLC, an efficient, economical automatic pipe Bender.
Operation panel and PLC control system adopted, simple mode menu, accurate, fast, complete
functions of hand-Operated, inching, quote setting, changing-program.

Applications:
Exhaust pipe of car, motorcycle, airplane and other machinery.
Tubes of air conditioning, furnitures, bikes, light pole, sports facilities
Kitchen and bathing facilities, medical equipments.
Applied material: carbon steel, stainless steel, aluminum, copper, alloy
Applied products: round tube & bar, square tube & bar, rectangle tube & bar, virous profile



No.	Item	Data
1	Max Round Tube Mild Steel	120x8 mm
2	Non Ferrous	120x10 mm
3	Square Tube Mild Steel	100x100x3 mm
4	Solid Bar	50 mm
5	Min/Max Bend Radius	100 - 600 mm
6	Clamp Stroke	165 mm
7	Pressure Slide Stroke	165 mm
8	Max Bend Angle	190 Deg
9	Max Length Over Mandrel	4000 mm
10	Bending Speed	9.6 Deg/Sec
11	Bending Precision	+/-0.3 Deg
12	Hydraulic Motor	22Kw
13	Total Power	22Kw
14	Hydraulic Pressure	120 Bar
15	Hydraulic Tank Capacity	700 L
16	Machine Size	6800x1660x1500 mm
19	Machine Weight	8000 Kg

Company Introduction:




  Zhangjiagang SANCO Machinery Co., Ltd



Our company video link:



https://sancogroup.en.made-in-china.com



SANCO(Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO mapping the prototype of Italian bending machine, and SANCO manufacturing the bending machine to produce airplane related accessories.

With 176 workers, 11 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.

The three-dimensional CNC bending machine developed by SANCO is advanced than other Chinese factories. SANCO is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.

All machines marked ISO 9001 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.

NOW, AND FOREVER MORE ...    SANCO DO THE BEST OR NOTHING.

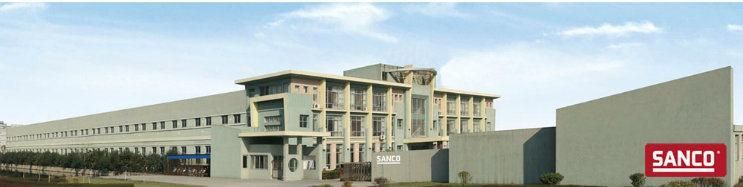

Company Photos:

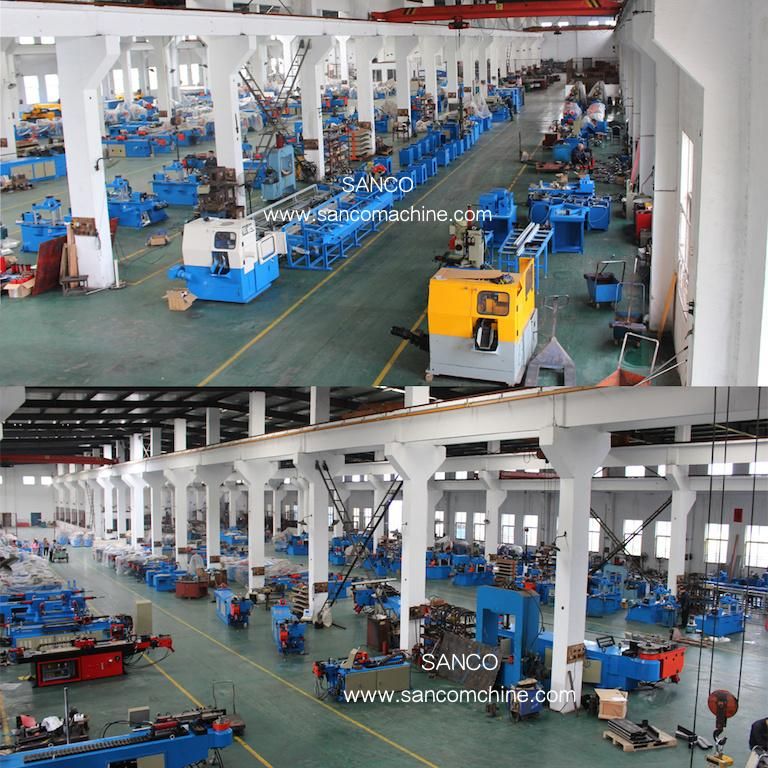

Aseembling workshops:

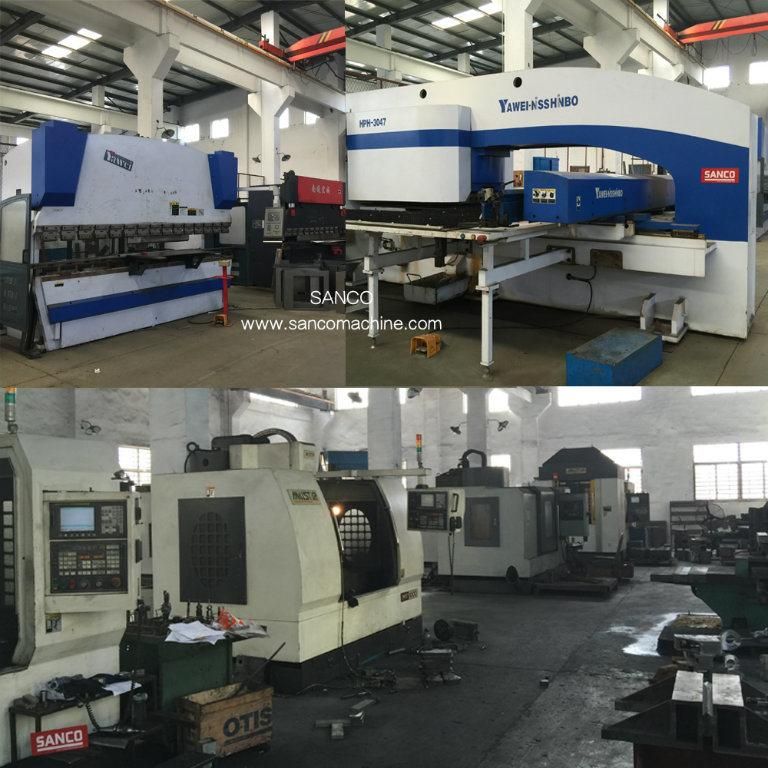

Finishing workshops:






Certificates:
