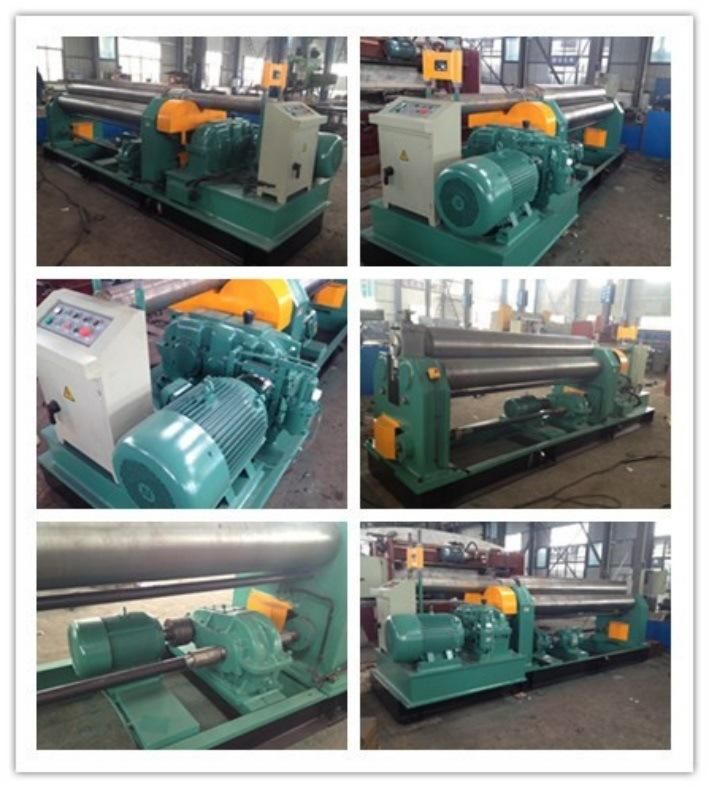

Hydraulic 3-Roller Symmetrical Steel Plate Rolling Machine for Pipe Making
Dongtai Yaoqiang Welding Facture Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000
- Automation：Automatic
- Suitable for：Stainless Steel
Base Info
- Model NO.：YQ series
- Type：Roll Forming Machine
- Color：Blue
- Max. Bending Thickness：200mm
- Max. Bending Width：3000mm
- Rolling Speed：3.5-4.5m,Min
- Main Motor Power：7.5-220kw
- Transport Package：Standard Export Package
- Specification：ISO
- Trademark：Yaoqiang
- Origin：Jiangsu, China
- Production Capacity：100 Pieces,Year
Description
Modelmax. plate thickness max. plate width rolling speed full-loading min. rolling diameter upper roller diameter lower rollers diameter main motor power central distance of two lower rollers mm mm m/mm mm mm mm kw mm W11Y-16*2000 16 2000 4.5 550 260 220 7.5 320 W11Y-16*2500 16 2500 4.5 600 280 240 11 360 W11Y-20*2000 20 2000 4.5 600 280 240 11 360 W11Y-20*2500 20 2500 4.5 700 340 260 15 430 W11Y-25*2500 25 2500 4.5 750 360 270 18.5 480 W11Y-30*2500 30 2500 4.5 900 400 320 22 550 W11Y-30*3000 30 3000 4.5 900 430 350 30 600 W11Y-40*2500 40 2500 4.5 1000 480 380 37 600 W11Y-40*3200 40 3200 4.5 1100 540 440 45 700 W11Y-50*2500 50 2500 4.5 1200 560 460 45 700 W11Y-50*3000 50 3000 4.5 1200 580 480 55 750 W11Y-60*2500 60 2500 4 1300 600 510 55 750 W11Y-60*3000 60 3000 4 1300 620 530 55 800 W11Y-70*3000 70 3000 4 1400 680 590 75 850 W11Y-80*3000 80 3000 4 1500 750 660 75 900 W11Y-90*3000 90 3000 4 1600 780 680 90 1000 W11Y-100*3000 100 3000 3.5 1700 830 740 90 1000 W11Y-110*3000 110 3000 3.5 1800 880 790 110 1080 W11Y-120*3000 120 3000 3.5 2000 920 830 110 1160 W11Y-120*4000 120 4000 3.5 2000 960 850 132 1160 W11Y-150*3000 150 3000 3.5 2200 1000 900 150 1280 W11Y-160*3000 160 3000 3.5 2500 1060 920 150 1280 W11Y-180*3000 180 3000 3.5 2500 1080 950 180 1360 W11Y-200*3000 200 3000 3.5 2500 1120 980 220 1420
