• Model NO.：WD100-4000
• Pressure：100t
• Bending Length：4000mm
• Application：Machinery & Hardware
• Control System：Delem CNC System
• Main Motor：Yaskawa, Japan
• Electrical Components：Schneider Electrical, French

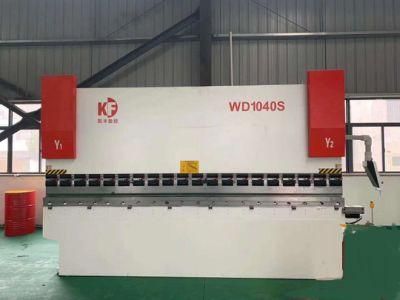

• Product Name：CNC Hydraulic Press Brake
• Transport Package：Customized
• Specification：10.5T
• Origin：China
• HS Code：846229
• Production Capacity：130

Basic Info.

Model NO. WD100-4000 Pressure 100t Bending Length 4000mm Application Machinery & Hardware Control System Delem CNC System Main Motor Yaskawa, Japan Electrical Components Schneider Electrical, French Product Name CNC Hydraulic Press Brake Transport Package Customized Specification 10.5T Origin China HS Code 846229 Production Capacity 130

Product Description

MAIN COMPONENTS

CNC System	DELEM-DA53 control system, Switzerland
Electrical components	Schneider, France / Omron, Japan
Grating Ruler	Fagor, Spain
Servo motor/Servo drive	Yaskawa, Japan
Foot switch	KF, China
Hydraulic System/(Assembly)	BOSCH/HOERBIGER, Germany
Ball Screw/ Linear guide	HIWIN/PMI/PYM from Taiwan
Seals	Walka, Japan

TECHNICAL SPECIFICATION

Model:	Unit	WD100-4000
Control Axis		4 (Y1, Y2, X, R)
Bending force	Ton	100
Bending length	mm	4000
Distance between columns	mm	3400
Stroke	mm	200
Throat Depth	mm	550
Open Height	mm	520
WORKING SPEED:
Fast speed	mm/sec	180
Working speed	mm/sec	9
Return speed	mm/sec	180
CAPACITY:
Hydraulic oil standard	/	#46 Anti-wear hydraulic oil
Overall dimensions	mm	4220*1615*2710
Power supply		380V/7.5KW (As customer requirement)
Weight (Approx)	T	10.5

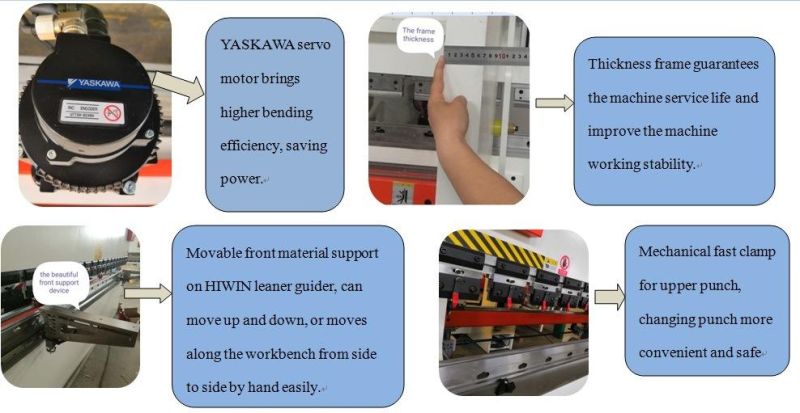

STANDARD CONFIGURATION

Functions
This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work-pieces. One slider travel makes a sheet bending and the complicated shape work-piece may be achieved through bending many times.

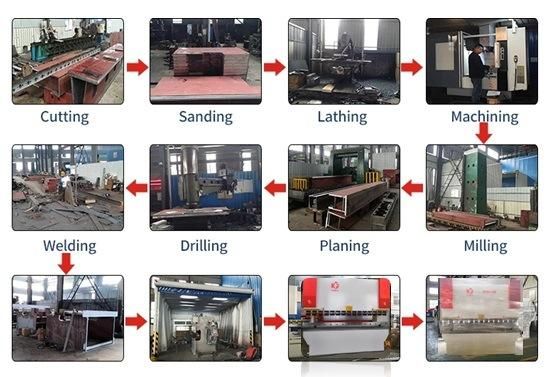

Processing Steps

Certifications

FAQ:

Q: GUARANTEE PERIOD
A: Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation.

Q: AFTER-SALES SERVICES
A: Our engineer can go to your factory for installation and show operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

Q: WHY CHOOSE US
A: Many years machine exporting experience, give customer prompt after service feedback .

Self manufactured machine, quality strictly control. OEM service.

Q: What is your payment terms?

A:T/T,L/C, Western union and so on.

Q: How to operate your machine?

A:We will provide operational manual along with the machine, we can also send operation vedio for study. Face to face on line teaching is also available.

Q: How to choose a model?

A:Send us your plate material, max thickness, max width then we can give you suggestion.

Q: How long is your production time?

Normally standard model delivery time is 30 working days, for bigger model we will need 45 or 50 working days. For urgent order,we can finish at 15 days. Need to discuss by each order.

Q:Do you test your machine before delivery?

A: Every machine will need  24 hours running,then engineer debug before packing.
