Cutting & Fold-bend Machine

200ton 10 Feet CNC Sheet Metal Hydraulic Folder

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • After-sales Service:2 Years
  • Waterproof Rating:IPX-8
  • Warranty:2-year
  • Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
  • Automation:Automatic
  • Suitable for:Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Stainless Steel

Base Info

  • Model NO.:HPB-80T3200
  • Type:Press Brake
  • System:Da53t
  • Pressure:80ton
  • Bending Length:3200mm
  • Bending Thickness:3mm with Length of 3m
  • Weight:7200kg
  • 2D Programming:Can Be Added
  • Compensation:Automatic CNC Compensation
  • Hydraulic System:Bosch Rexroth
  • Main Motor:Siemens Motor
  • Main Electrics:Schneider
  • Transport Package:20gp
  • Specification:3850× 1850× 2550mm
  • Trademark:lzk
  • Origin:China, Maanshan
  • HS Code:8462219000
  • Production Capacity:100 Set,Month

Description

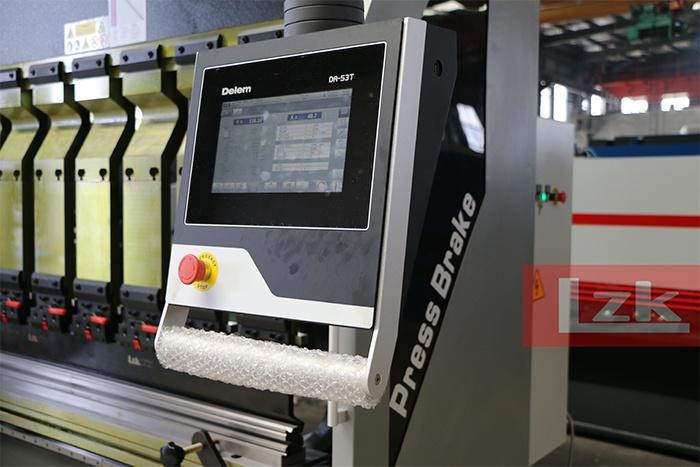

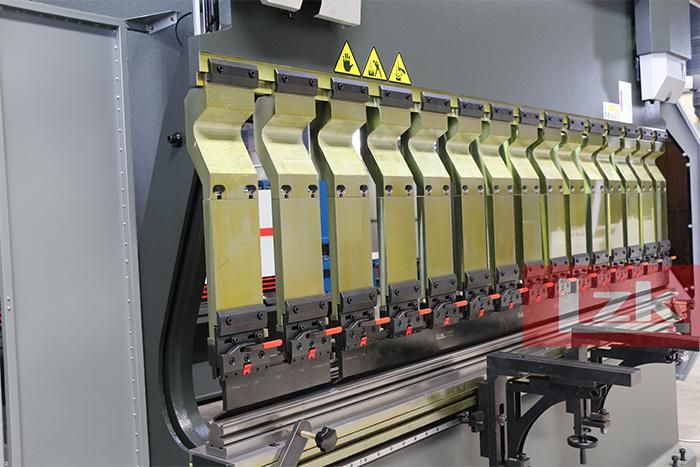

Energy saving type cnc press brake with main motor as servo motor. 1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.200ton 10 Feet CNC Sheet Metal Hydraulic FolderDELEM DA53T CNC Control System200ton 10 Feet CNC Sheet Metal Hydraulic FolderSpecial designed bending tools for water tank bending usageQuick release clamp system

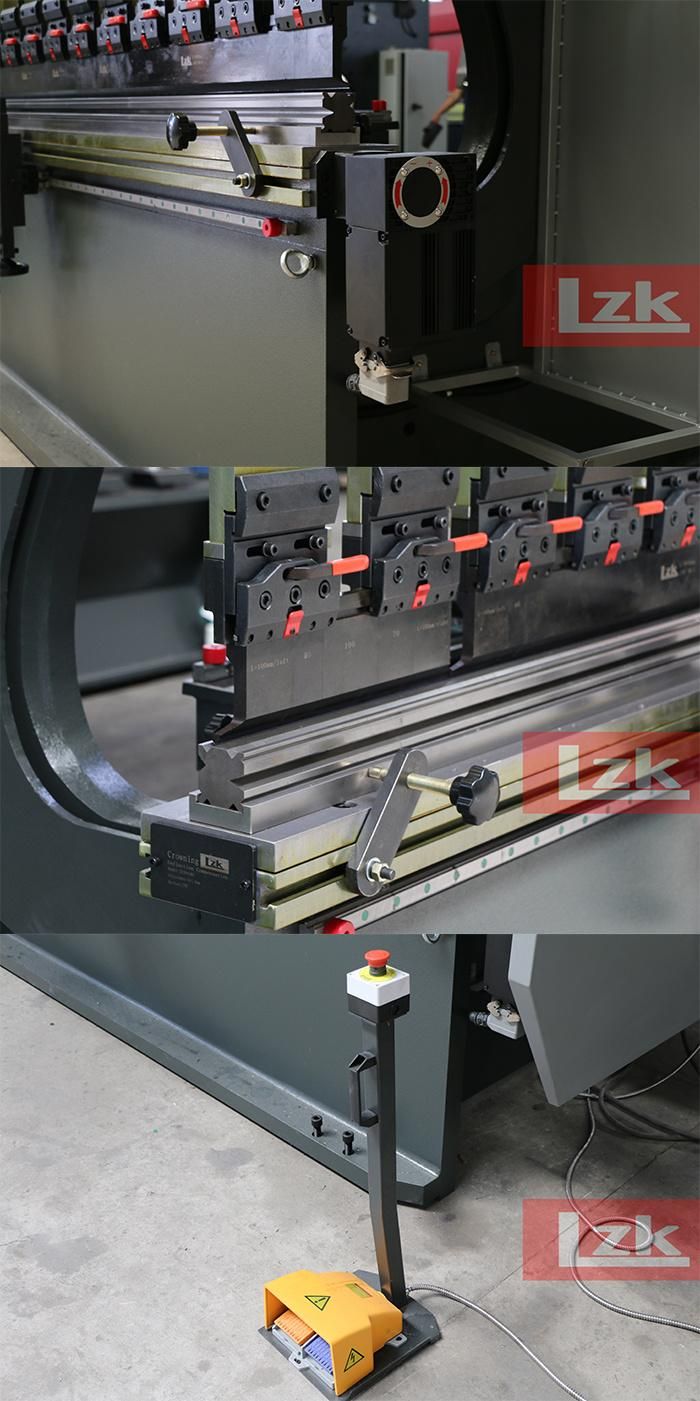

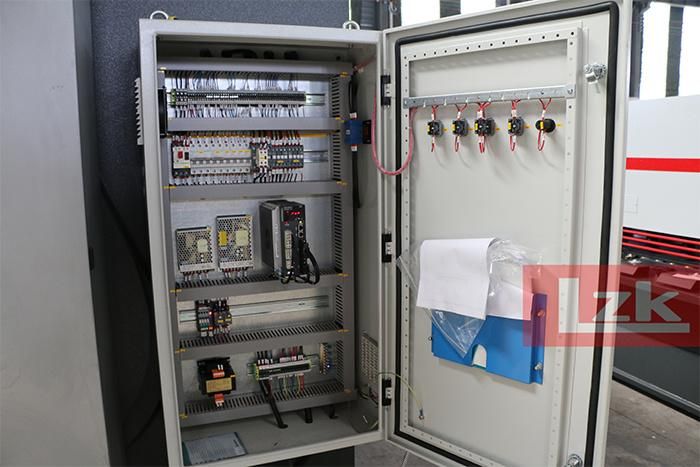

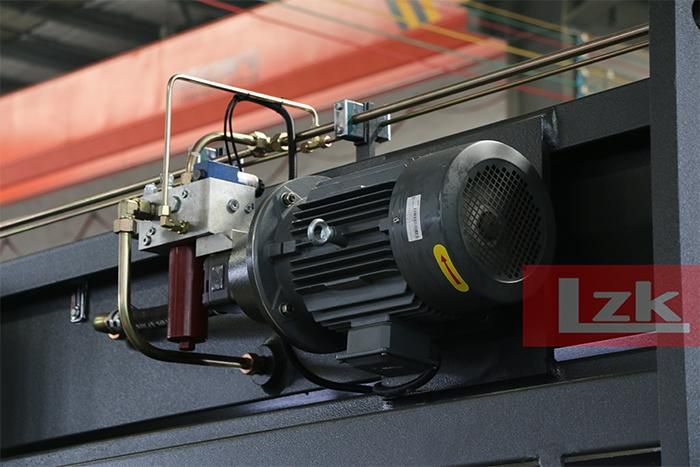

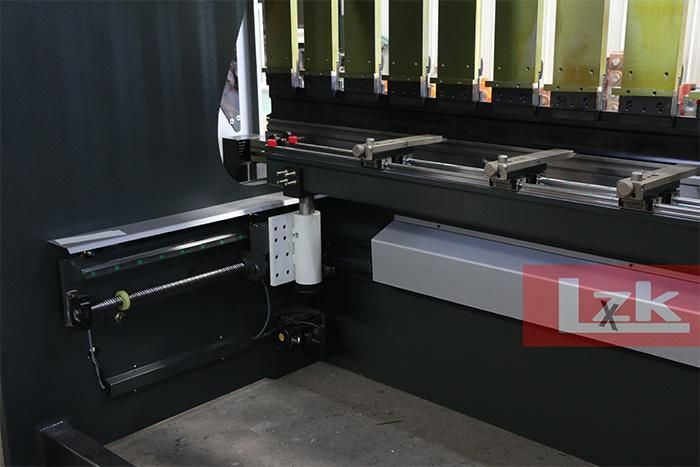

Sliding front support arms200ton 10 Feet CNC Sheet Metal Hydraulic FolderCNC mechanical/automatic crowning/compensation systemKACON foot pedal200ton 10 Feet CNC Sheet Metal Hydraulic FolderDouble linear guide rails, fingers can be moved alongX axes with servo motor controlled, R axis can be added if needed200ton 10 Feet CNC Sheet Metal Hydraulic FolderSiemens Main Motor, can be replaced with servo motor for energy savingBosch Rexroth hydraluic valve systemSunny oil pump200ton 10 Feet CNC Sheet Metal Hydraulic FolderSchneider main electric componentsESTUN servo driveGerman customer bought our tandem press brake for long sheet bending, photos were taken by our engineer
when dis aftersale service.

200ton 10 Feet CNC Sheet Metal Hydraulic Folder
Our Russis customer bought three sets of cnc press brake from us, they are manufacture of Yacht.
200ton 10 Feet CNC Sheet Metal Hydraulic Folder
Customer form different countries come for inspection and cooperation.
